Description

Price

1

AXLE, MAIN

4GL-17411-00-00

$120.99

2

GEAR, 3RD PINION (23T)

4GL-17131-00-00

Unavailable

3

WASHER, CLAW

90214-14067-00

Unavailable

4

CIRCLIP (4V0)

93440-16089-00

$7.49

5

GEAR, 2ND PINION (19T)

5HN-17121-00-00

$48.99

6

BEARING (7X9)

93306-20327-00

$38.99

7

WASHER, PLATE

90201-06020-00

$9.49

8

BOLT,SOCKET

91317-06012-00

$8.49

9

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

10

AXLE, DRIVE

4GL-17421-00-00

Unavailable

11

GEAR, 2ND WHEEL (33T)

5DV-17221-00-00

Unavailable

12

WASHER (5H0)

90209-16209-00

$7.49

13

CIRCLIP (525)

93410-20038-00

$3.76

14

GEAR, 3RD WHEEL (28T)

5DV-17231-00-00

Unavailable

15

GEAR, 1ST WHEEL (37T/28T)

4GL-17211-00-00

Unavailable

16

COLLAR

90387-1503D-00

Unavailable

17

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

18

CIRCLIP

93440-15012-00

Unavailable

19

BEARING

93306-20203-00

Unavailable

20

BEARING(1YW)

93306-20461-00

Unavailable

21

OIL SEAL(7FK)

93102-20366-00

Unavailable

22

SPROCKET,DRIVE 14T(5171746142)

93812-14035-00

Unavailable

23

CIRCLIP (525)

93410-20038-00

$3.76

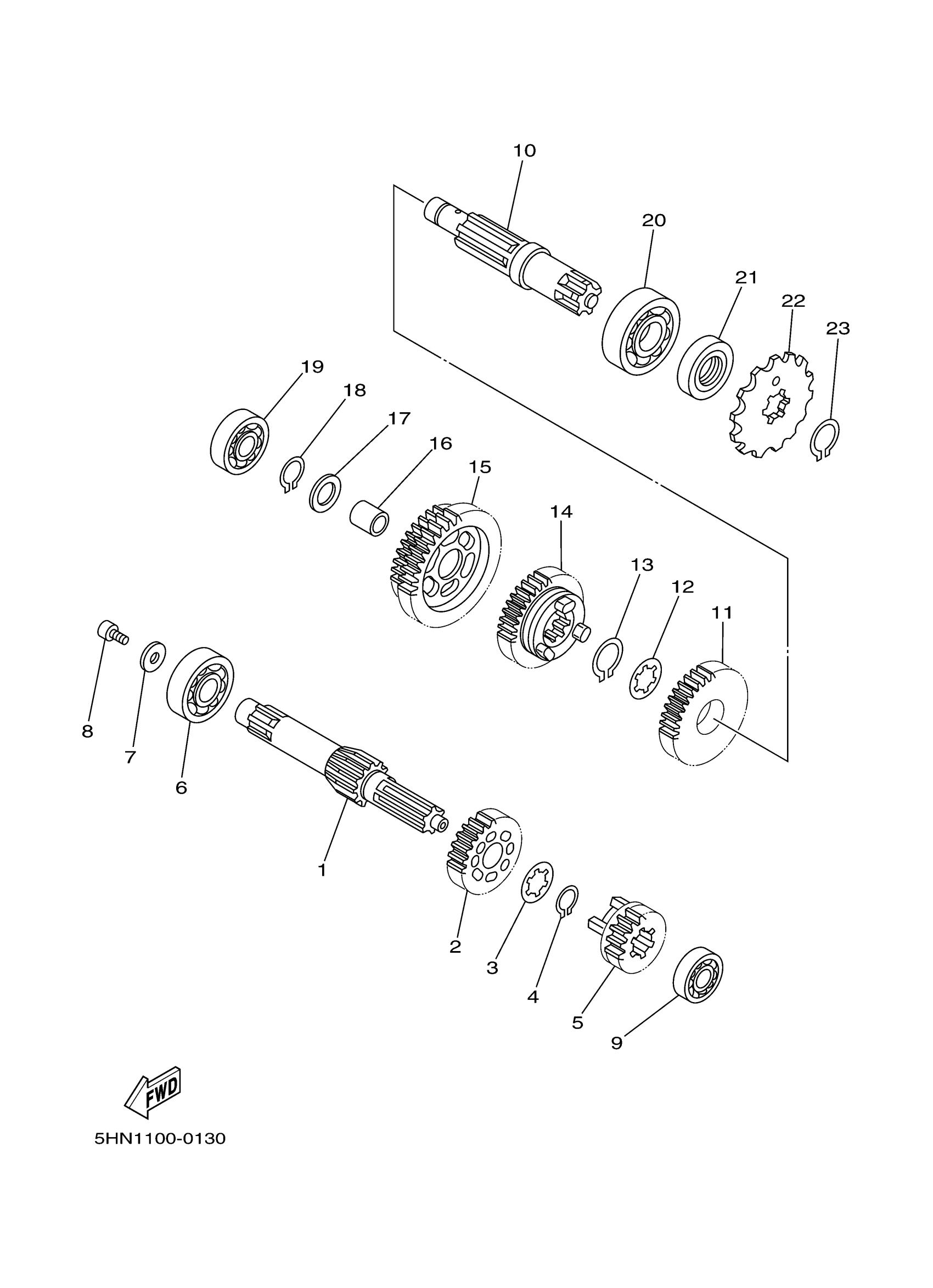

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 TRANSMISSION Diagram

AXLE, MAIN

GEAR, 3RD PINION (23T)

WASHER, CLAW

CIRCLIP (4V0)

GEAR, 2ND PINION (19T)

BEARING (7X9)

WASHER, PLATE

BOLT,SOCKET

BRG,R-B 6001 28MM 28G KY

AXLE, DRIVE

GEAR, 2ND WHEEL (33T)

WASHER (5H0)

CIRCLIP (525)

GEAR, 3RD WHEEL (28T)

GEAR, 1ST WHEEL (37T/28T)

COLLAR

WASHER, PLATE (4L0)

CIRCLIP

BEARING

BEARING(1YW)

OIL SEAL(7FK)

SPROCKET,DRIVE 14T(5171746142)

CIRCLIP (525)
