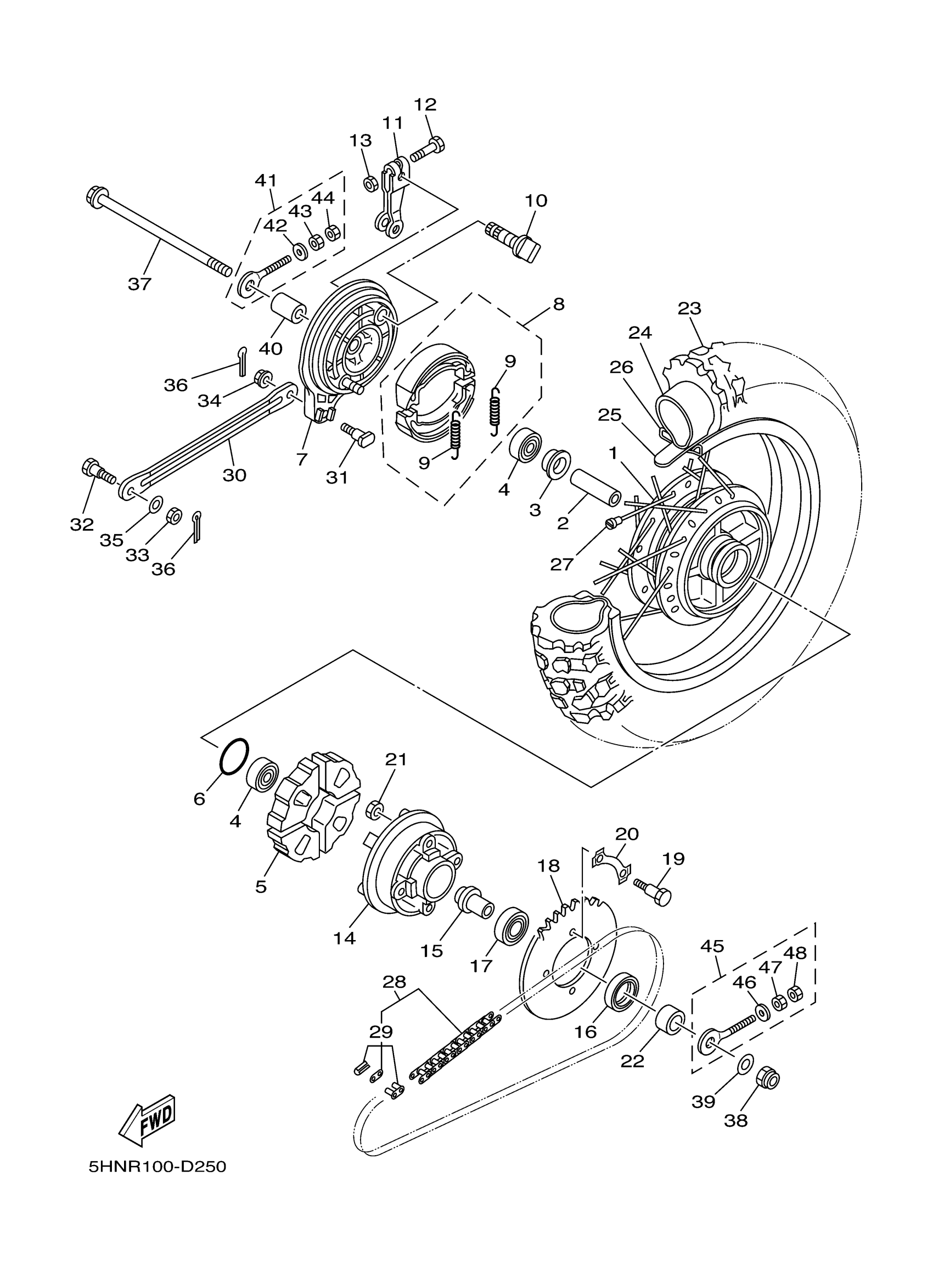

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 REAR WHEEL Diagram
#
7
PLATE, BRAKE SHOE
31J-25321-10-00
Unavailable
16
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
17
BEARING(8AB)
93306-00444-00
Unavailable
18
SPROCKET, DRIVEN (35T)
5A7-25435-01-00
Unavailable
19
BOLT(1AJ)
90101-08672-00
Unavailable
20
WASHER
4AW-25412-00-00
Unavailable
21
NUT(3KX)
90179-08639-00
Unavailable
22
COLLAR (21W)
90387-207G3-00
Unavailable
23
TIRE
94130-121A7-00
Unavailable
24
TUBE (17J)
94230-12208-00
Unavailable
25
BAND, RIM (3R0)
94330-12100-00
Unavailable
26
RIM (1.60-12)
94416-12002-00
Unavailable
27
SPOKE SET, REAR
21W-25304-00-00
Unavailable
28
CHAIN
9Y561-52085-00
Unavailable
29
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
30
BAR, TENSION
4BC-25371-00-00
Unavailable
31
BOLT 1022537300
90109-08183-00
Unavailable
32
BOLT (183-25378-00)
90109-08368-00
Unavailable
33
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
34
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
35
WASHER(6TA)
92907-08600-00
Unavailable
36
PIN, COTTER (648)
91490-20015-00
Unavailable
37
AXLE, WHEEL
5HN-25381-00-00
Unavailable
38
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
39
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
40
COLLAR 102253830000
90387-12412-00
Unavailable
41
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
42
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
43
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
45
PULLER, CHAIN
4GL-2538G-10-00
Unavailable
46
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
47
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
