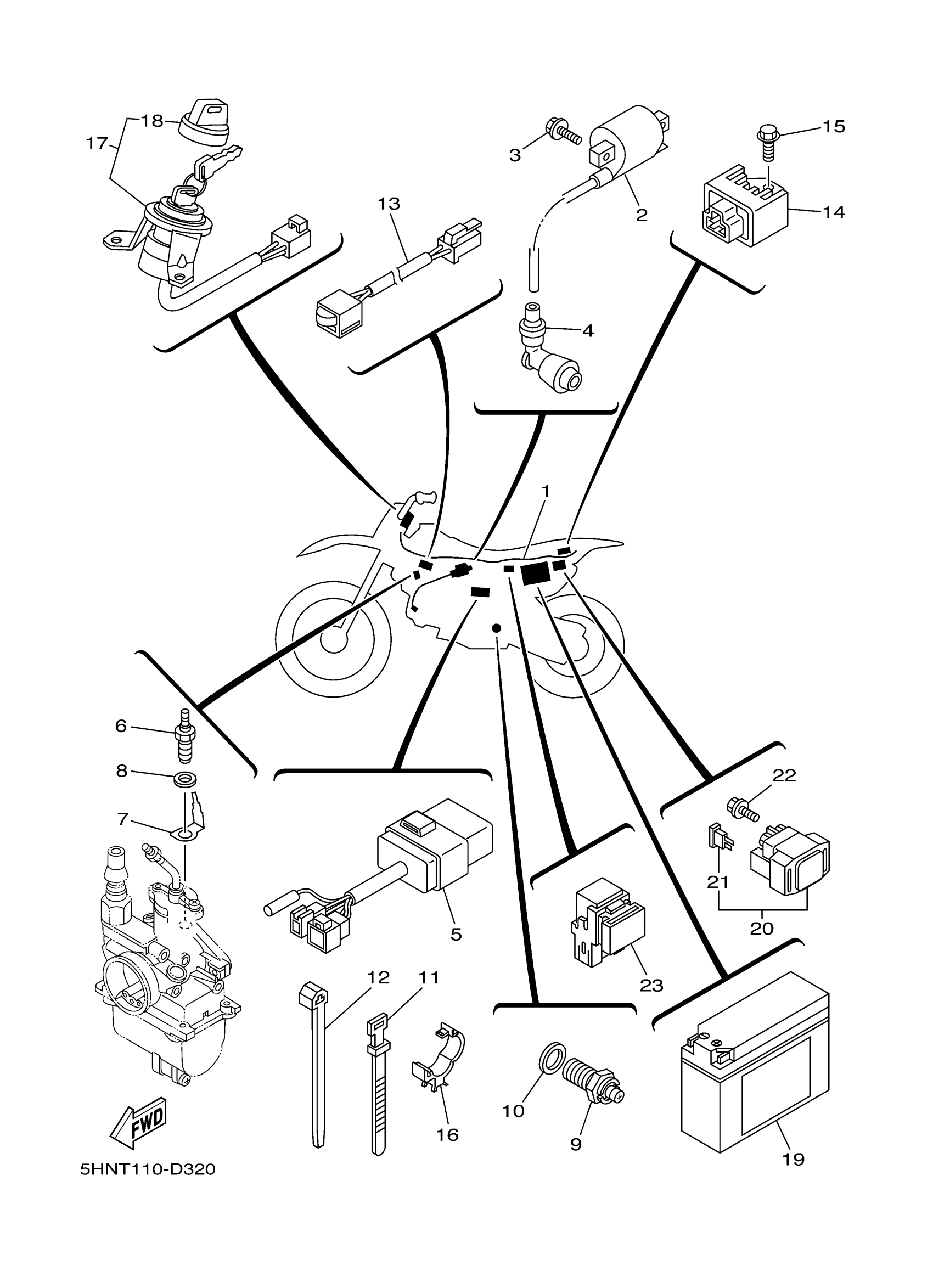

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

WIRE HARNESS ASSY

5HN-82590-10-00

Unavailable

2

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

3

. BOLT, FLANGE

95027-06020-00

Unavailable

4

PLUG CAP ASSY

4BP-82370-01-00

$35.99

5

C.D.I. UNIT ASSY

5HN-85540-00-00

Unavailable

6

HEATER ASSY

5FU-83790-20-00

$49.99

7

TERMINAL 1

5FU-82103-00-00

$7.99

8

WASHER, PLATE

90201-08016-00

$8.49

9

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

10

GASKET

90430-10188-00

$6.99

11

CLAMP

5Y9-12491-00-00

$6.99

12

BAND, SWITCH CORD

437-83936-11-00

$4.63

13

THERMO SWITCH ASSY

5FU-82560-50-00

$61.99

14

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

$200.99

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

16

CLAMP(4KM)

90464-25217-00

Unavailable

17

MAIN SWITCH ASSY

5HN-82510-01-00

Unavailable

18

CAP, KEY

3HN-82579-00-00

Unavailable

19

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

Unavailable

20

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

21

FUSE (10A)

42X-82151-00-00

Unavailable

22

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

23

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable
