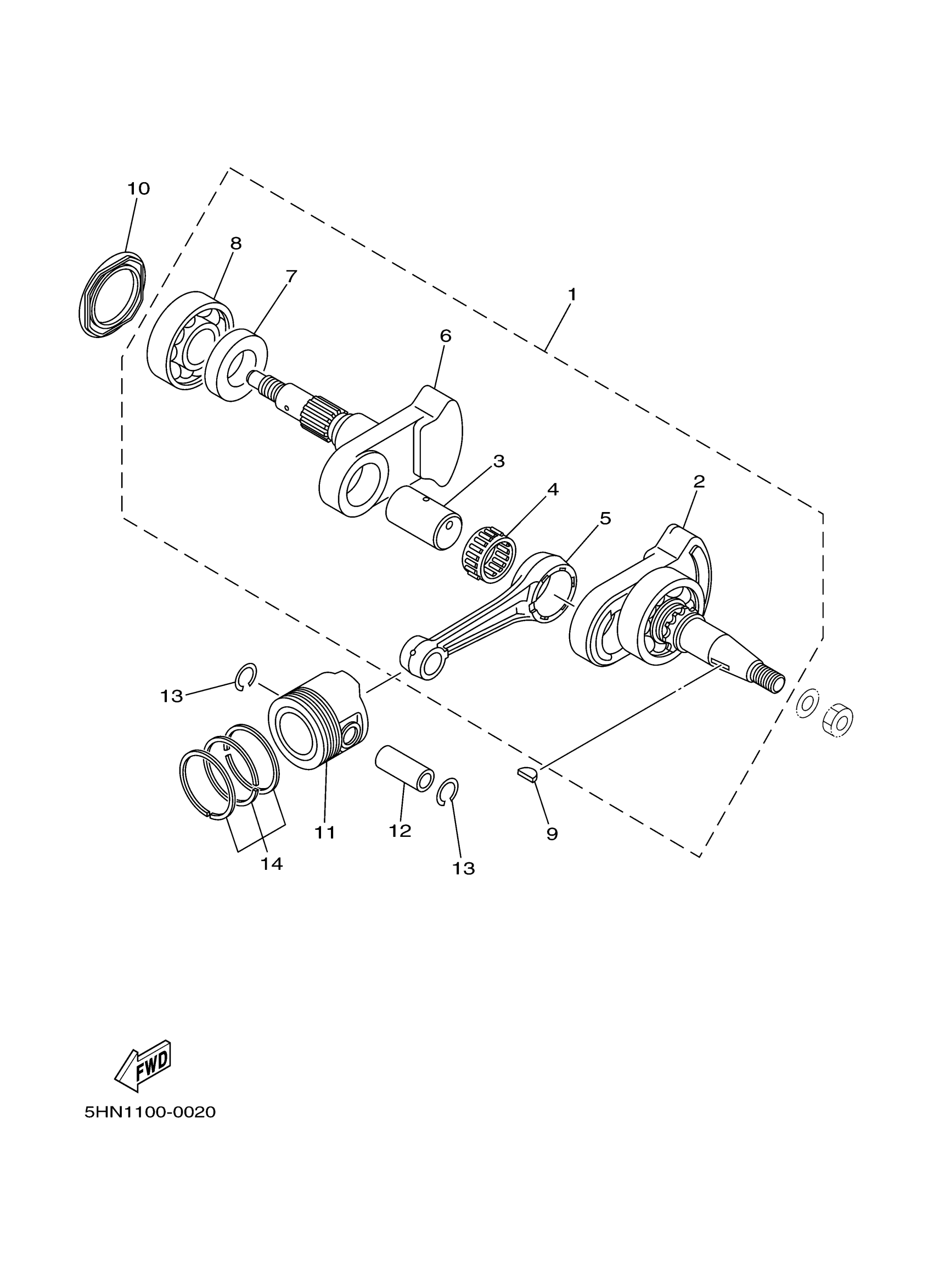

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

5HN-11400-01-00

Unavailable

. CRANK 1

5HN-W1141-00-00

Unavailable

PIN, CRANK 1

4GL-11681-10-00

$37.36

BEARING, NEEDLE(4CW)

93310-326M9-00

Unavailable

ROD, CONNECTING

4GL-11651-01-00

Unavailable

CRANK 2

5HN-11422-00-00

Unavailable

SPACER

5DV-11445-00-00

Unavailable

. BEARING

93306-20590-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

$5.39

SPACER

4GL-11445-00-00

$23.33

PISTON (STD)

4GL-11631-01-00

$64.46

PISTON (0.50MM O/S)

4GL-11636-01-00

$66.33

PISTON (1.00MM O/S)

4GL-11638-01-00

$66.33

PIN, PISTON

22K-11633-01-00

$21.91

CIRCLIP (22F)

93450-14088-00

$2.69

PISTON RING SET (STD)

55X-11610-00-00

Unavailable

PISTON RING SET (2ND O/S)

55X-11610-20-00

Unavailable

PISTON RING SET (4TH O/S)

55X-11610-40-00

Unavailable
