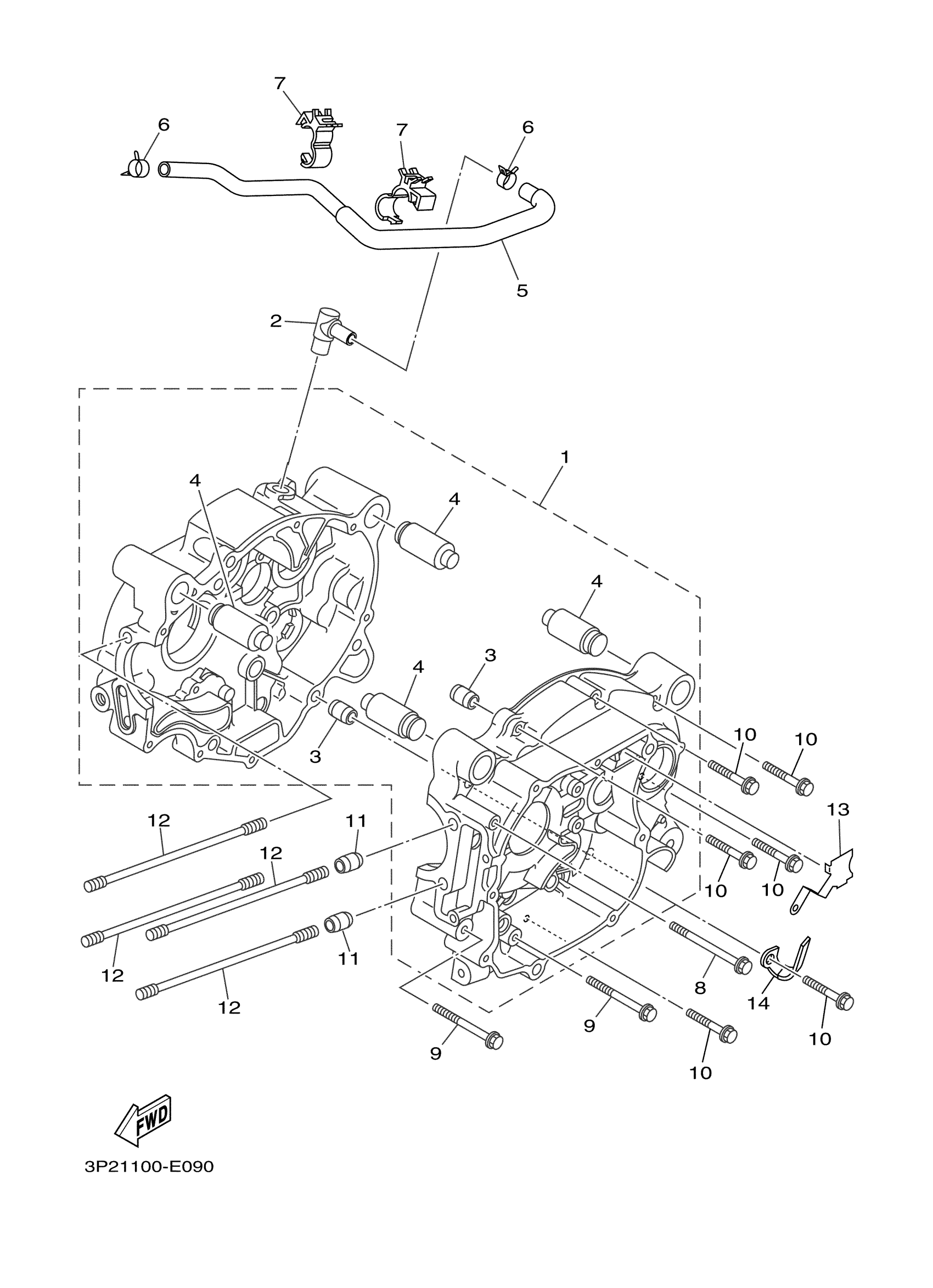

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HN-15100-11-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

DAMPER, ENGINE MOUNT 1

4S9-E5316-00-00

Unavailable

5

PIPE, BREATHER 1

3P2-11166-00-00

Unavailable

6

CLIP(3YX)

90467-13133-00

$4.92

7

CLAMP(4HM)

90464-15192-00

$5.75

8

BOLT, WASHER BASED

90105-064A6-00

$6.40

9

BOLT, SMALL FLANGE

95027-06060-00

$1.91

10

BOLT, SMALL FLANGE

95027-06040-00

$2.31

11

PIN, DOWEL(3VD)

99530-10114-00

$2.13

12

BOLT, STUD

90116-08573-00

$7.52

13

PLATE

5HN-15191-00-00

Unavailable

14

CLAMP(4MX)

90465-06376-00

$6.59
