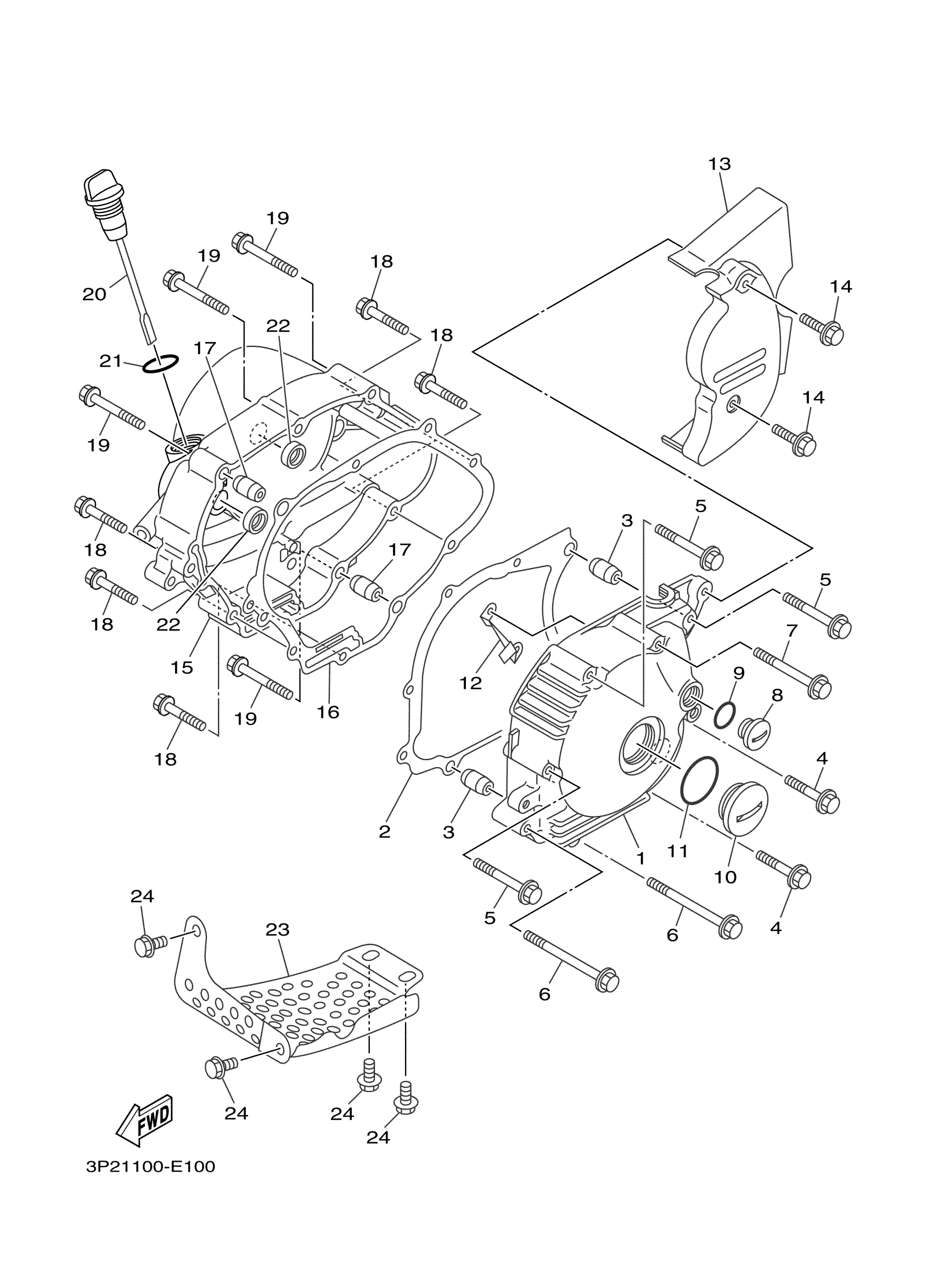

Yamaha TTR90EV (TT-R90E ELETRIC) 3P21 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5HN-15411-30-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5HN-15451-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SMALL FLANGE

95027-06040-00

$3.28

5

BOLT, SMALL FLANGE

95027-06050-00

$2.55

6

BOLT, SMALL FLANGE

95027-06080-00

$2.39

7

BOLT, SMALL FLANGE

95027-06060-00

$2.87

8

PLUG, STRAIGHT SCREW(2WK)

90340-14120-00

$14.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW(3LD)

90340-32126-00

$24.99

11

O-RING (341)

93210-32172-00

$7.49

12

PLATE

4NM-15113-00-00

$3.17

13

COVER, CHAIN CASE

5HN-15418-10-00

$37.99

14

BOLT, SMALL FLANGE

95027-06025-00

$4.16

15

COVER, CRANKCASE 2

5HN-15421-00-00

Unavailable

16

GASKET, CRANKCASE COVER 2

5HN-15461-00-00

Unavailable

17

PIN, DOWEL(3VD)

99530-10114-00

$2.55

18

BOLT, SMALL FLANGE

95027-06040-00

$3.28

19

BOLT, SMALL FLANGE

95027-06050-00

$2.55

20

PLUG, OIL LEVEL

55X-15362-10-00

Unavailable

21

O-RING (646)

93210-19123-00

Unavailable

22

OIL SEAL(2FJ)

93101-10142-00

Unavailable

23

COVER, STARTING MOTOR

4GL-15436-01-00

Unavailable

24

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
