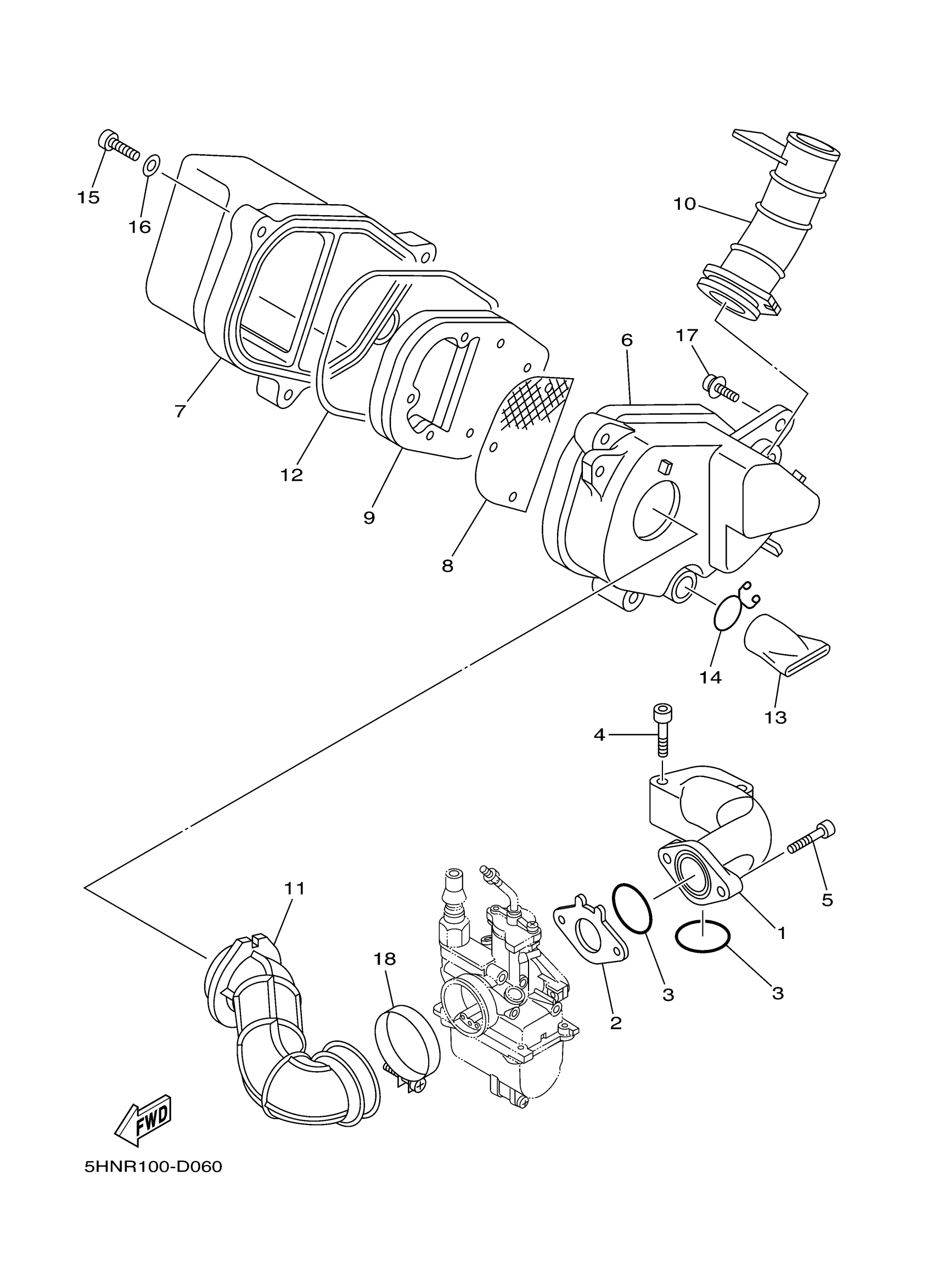

Yamaha TTR90ET (TT-R90E) 5HNT 2005 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5HN-13586-10-00

Unavailable

2

JOINT

4GL-13595-01-00

$18.65

3

O-RING (22F)

93210-25552-00

$10.93

4

BOLT,SOCKET

91317-06035-00

$3.27

5

BOLT,SOCKET

91317-06025-00

$1.91

6

CASE, AIR CLEANER 1

5HN-14411-00-00

Unavailable

7

CAP, CLEANER CASE 1

5HN-14412-00-00

Unavailable

8

PLATE, ELEMENT

5HN-14472-00-00

Unavailable

9

ELEMENT, AIR CLEANER

5HN-14451-00-00

$7.77

10

DUCT

5HN-14437-00-00

$31.56

11

JOINT, AIR CLEANER 1

5HN-14453-00-00

$33.80

12

SEAL

1VJ-14462-00-00

$15.00

13

SEAL

59V-14457-00-00

$5.25

14

CLIP (21V)

90467-22080-00

$5.75

15

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

16

WASHER(6TA)

92907-06600-00

Unavailable

17

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

18

BAND

5TN-E3575-00-00

Unavailable
