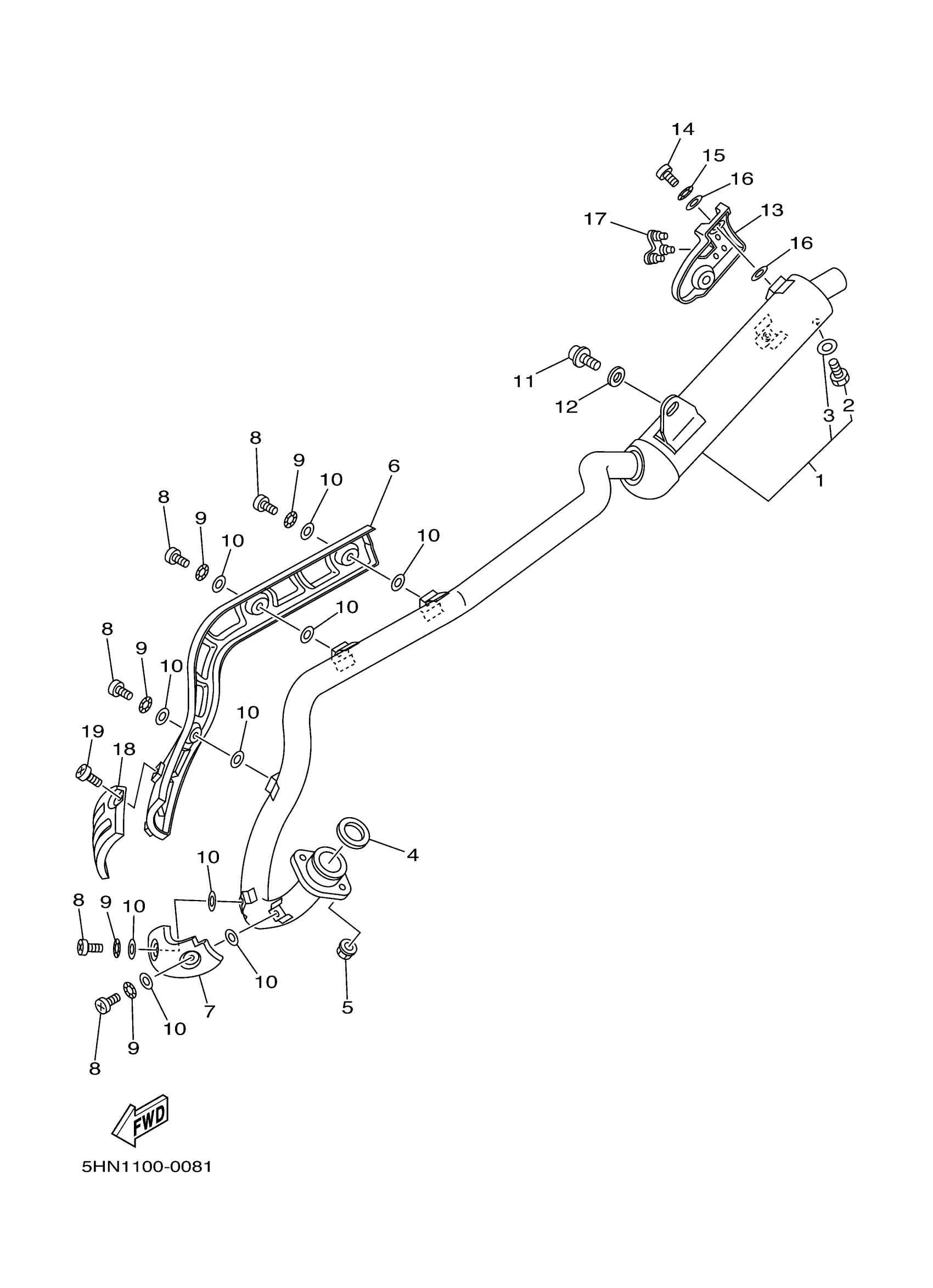

Yamaha TTR90ER (TTR90) 5HNE 2003 EXHAUST Diagram

#

Description
Price

1

MUFFLER 1

5HN-14711-00-00

Unavailable

2

BOLT(3JP)

97017-06010-00

$3.76

3

WASHER(6TA)

92907-06600-00

$2.72

4

GASKET, EXHAUST PIPE

3DM-14613-00-00

$7.99

5

NUT, FLANGE(4MV)

95707-06500-00

$1.23

6

PROTECTOR, MUFFLER 1

5HN-14718-01-00

Unavailable

7

PROTECTOR, MUFFLER 2

5HN-14728-00-00

Unavailable

8

SCREW, BIND(1JK)

98980-06010-00

$9.49

9

WASHER, WAVE(3RW)

90206-06090-00

$8.49

10

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

11

BOLT(2KF)

90109-085E2-00

$7.49

12

WASHER (853)

90201-08326-00

$8.49

13

PROTECTOR, SILENCER

5HN-14758-00-00

Unavailable

14

SCREW, BIND(1JK)

98980-06010-00

$9.49

15

WASHER, WAVE(3RW)

90206-06090-00

$8.49

16

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

17

PROTECTOR, MUFFLER 4

5HN-14748-00-00

Unavailable

18

PROTECTOR, MUFFLER 3

5HN-14738-00-00

Unavailable

19

SCREW, PAN HEAD(3AH)

98507-05006-00

Unavailable
