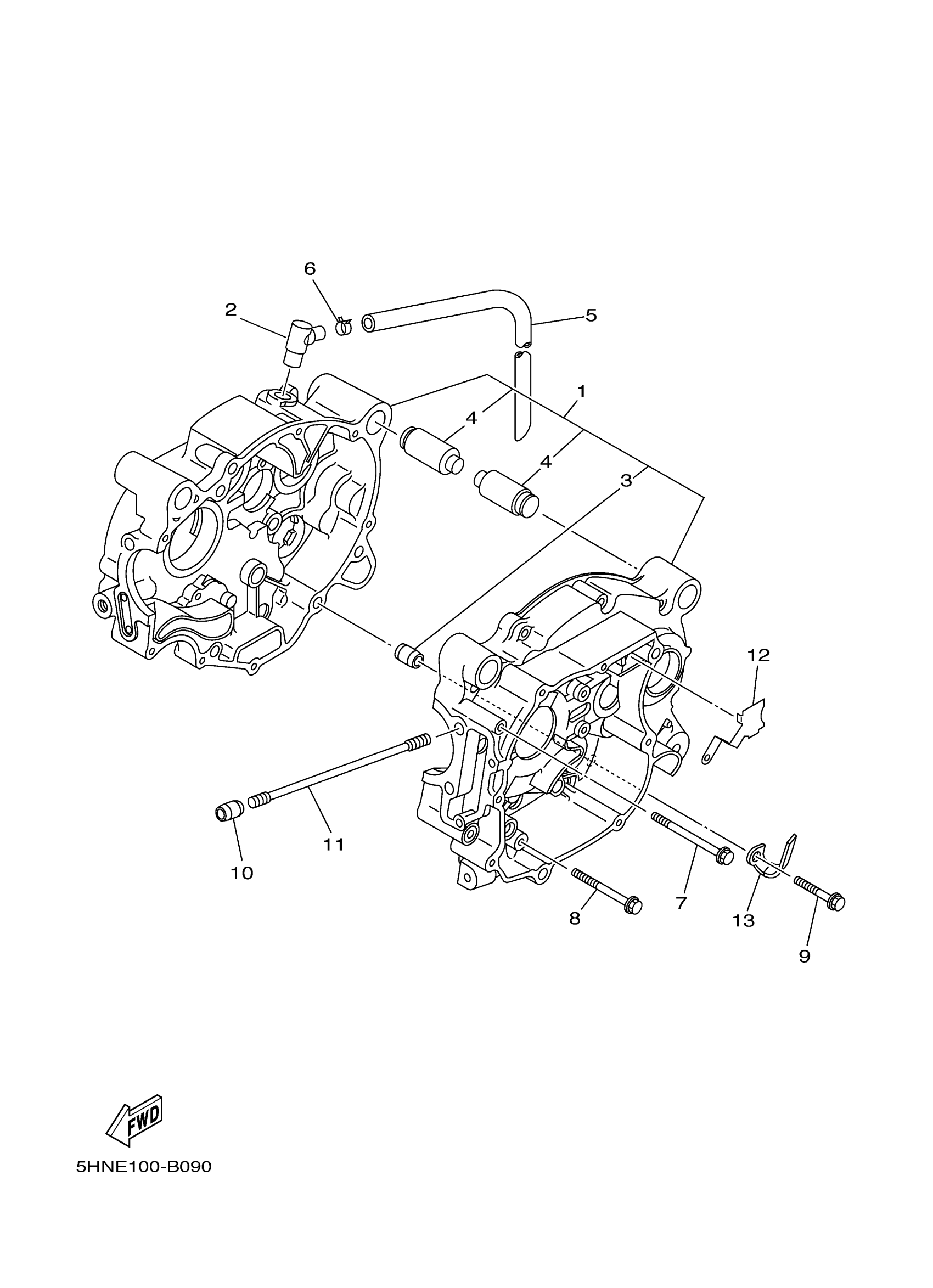

Yamaha TTR90ER (TTR90) 5HNE 2003 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HN-15100-11-00

Unavailable

2

BREATHER

4GL-15371-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

DAMPER, ENGINE MOUNT 1

4S9-E5316-00-00

$21.99

5

HOSE (L300)

90445-12002-00

Unavailable

6

CLIP(3YX)

90467-13133-00

$8.49

7

BOLT, WASHER BASED

90105-064A6-00

$9.49

8

BOLT, SMALL FLANGE

95027-06060-00

$2.87

9

BOLT, SMALL FLANGE

95027-06040-00

$3.28

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

BOLT, STUD

90116-08573-00

Unavailable

12

PLATE

5HN-15191-00-00

Unavailable

13

CLAMP(4MX)

90465-06376-00

$9.49
