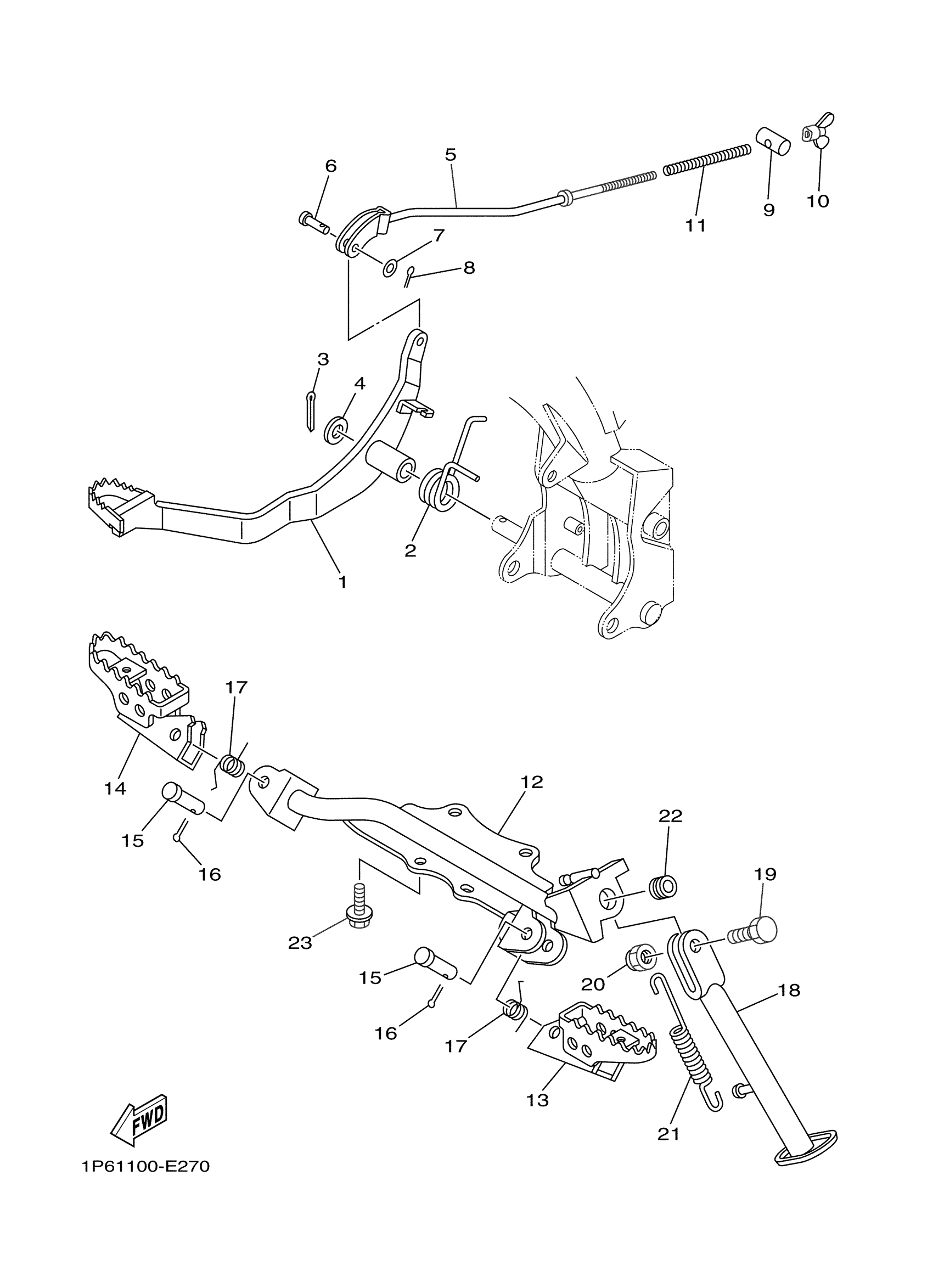

Yamaha TTR50EY (TTR50E) 1P6C 2009 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1P6-F7211-02-00

$49.11

2

SPRING,TORSION

90508-40805-00

$9.43

3

PIN, COTTER

91490-20025-00

$1.23

4

WASHER(6TA)

92907-12600-00

$1.15

5

ROD, BRAKE

1P6-F7231-01-00

$24.65

6

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

7

. WASHER

9290N-06600-00

Unavailable

8

PIN, COTTER

91490-25020-00

$2.94

9

PIN 1562723700

90249-12008-00

$4.51

10

NUT, WING (1K5)

90175-06013-00

$4.11

11

SPRING, COMPRESSION

90501-10806-00

$3.37

12

FOOTREST

1P6-F7411-00-00

$34.60

13

FOOTREST

1P6-F7451-01-00

$43.25

14

FOOTREST

1P6-F7461-01-00

$46.43

15

PIN, CLEVIS

90240-10002-00

$4.72

16

PIN, COTTER

91490-25020-00

$2.94

17

SPRING, RETURN

1P6-F7456-01-00

Unavailable

18

STAND, SIDE

1P6-F7311-00-00

Unavailable

19

BOLT, HEXAGON M10

90101-10003-00

Unavailable

20

NUT, U

90185-10037-00

Unavailable

21

STAND,SIDE

90506-25802-00

Unavailable

22

COLLAR

90387-10003-00

Unavailable

23

BOLT, FLANGE

95812-08020-00

Unavailable
