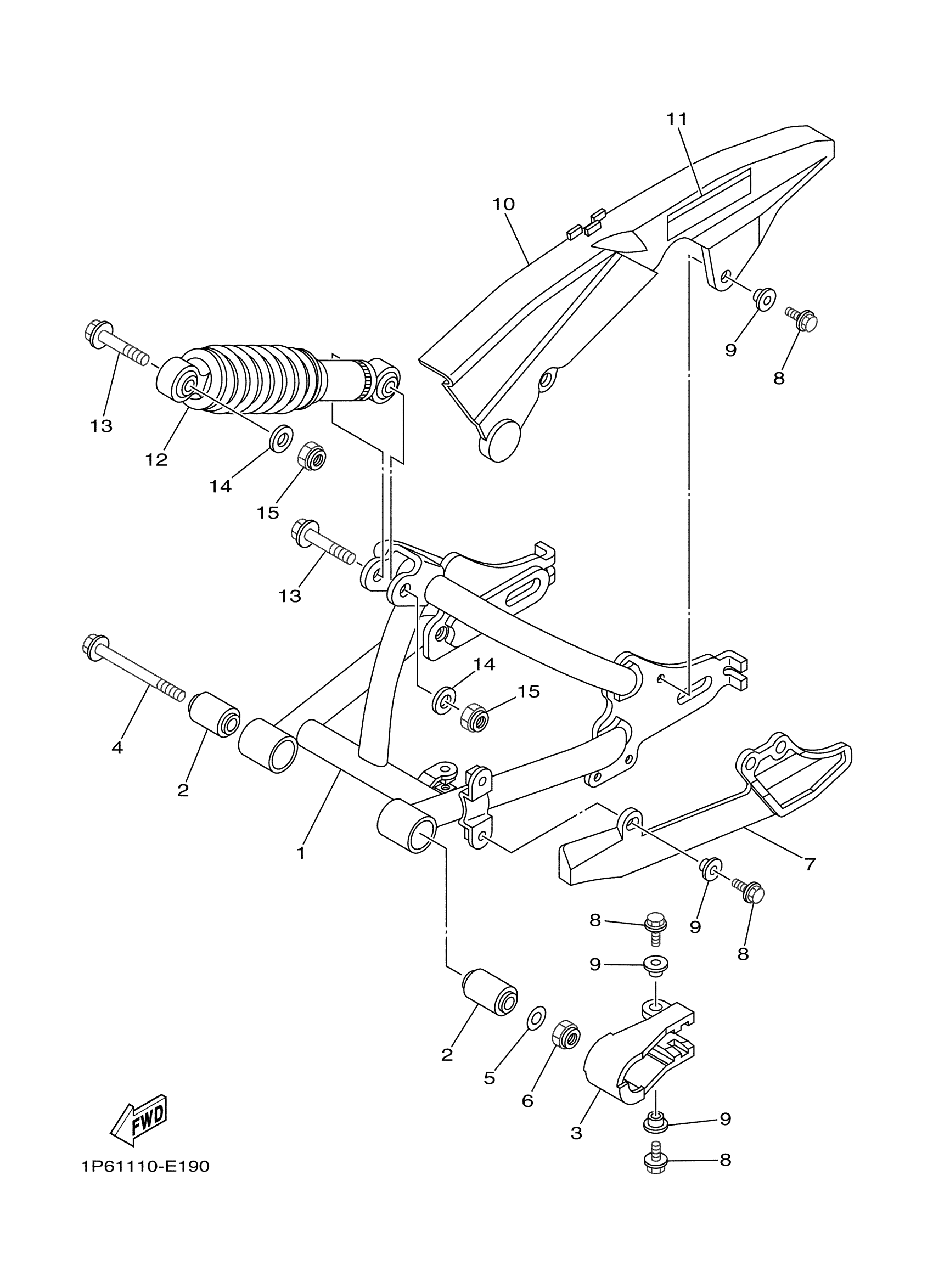

Yamaha TTR50EX (TTR50E) 1P67 2008 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

1P6-F2110-00-00

$219.98

2

BUSH 1

102-22123-00-00

$8.96

3

SEAL, GUARD

1P6-F2151-00-00

$34.61

4

BOLT (583 FRAME)

90105-10063-00

$8.37

5

WASHER PLATE (3L6)

90201-08759-00

$2.34

6

NUT, U

90185-10037-00

$6.22

7

SUPPORT, CHAIN

1P6-F2199-01-00

$60.74

8

BOLT, FLANGE

95817-06012-00

$1.40

9

COLLAR

90387-07818-00

$5.81

10

CASE, CHAIN

1P6-F2311-01-00

$38.68

11

LABEL, TIRE

1P6-F218G-00-00

$1.44

12

SHOCK ABSORBER ASSY, REAR

1P6-F2210-01-00

$239.65

13

BOLT, FLANGE

90105-10122-00

$8.86

14

WASHER, PLATE (3L6)

90201-10774-00

$5.81

15

NUT, U

95617-10100-00

$5.76
