Description

Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RETAINER, BALL BEARING

5VL-F341E-00-00

Unavailable

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

RETAINER, BALL BEARING

1P6-F341E-00-00

Unavailable

6

COVER, BALL RACE 2

1P6-F3416-00-00

Unavailable

7

NUT

90179-25004-00

$24.99

8

WASHER, PLATE (26H)

90202-26142-00

$9.49

9

NUT

90179-22801-00

$12.49

10

WASHER,SPECIAL

1P6-F3418-00-00

Unavailable

11

HANDLE CROWN COMP.

1P6-F3430-00-00

Unavailable

12

SCREW,FLAT HEAD

90176-22801-00

Unavailable

13

WASHER, FELT

5VL-F3165-01-00

$4.78

14

BOLT, FLANGE

95817-10030-00

$8.49

15

WASHER, PLATE(8BV)

90201-100S7-00

$11.49

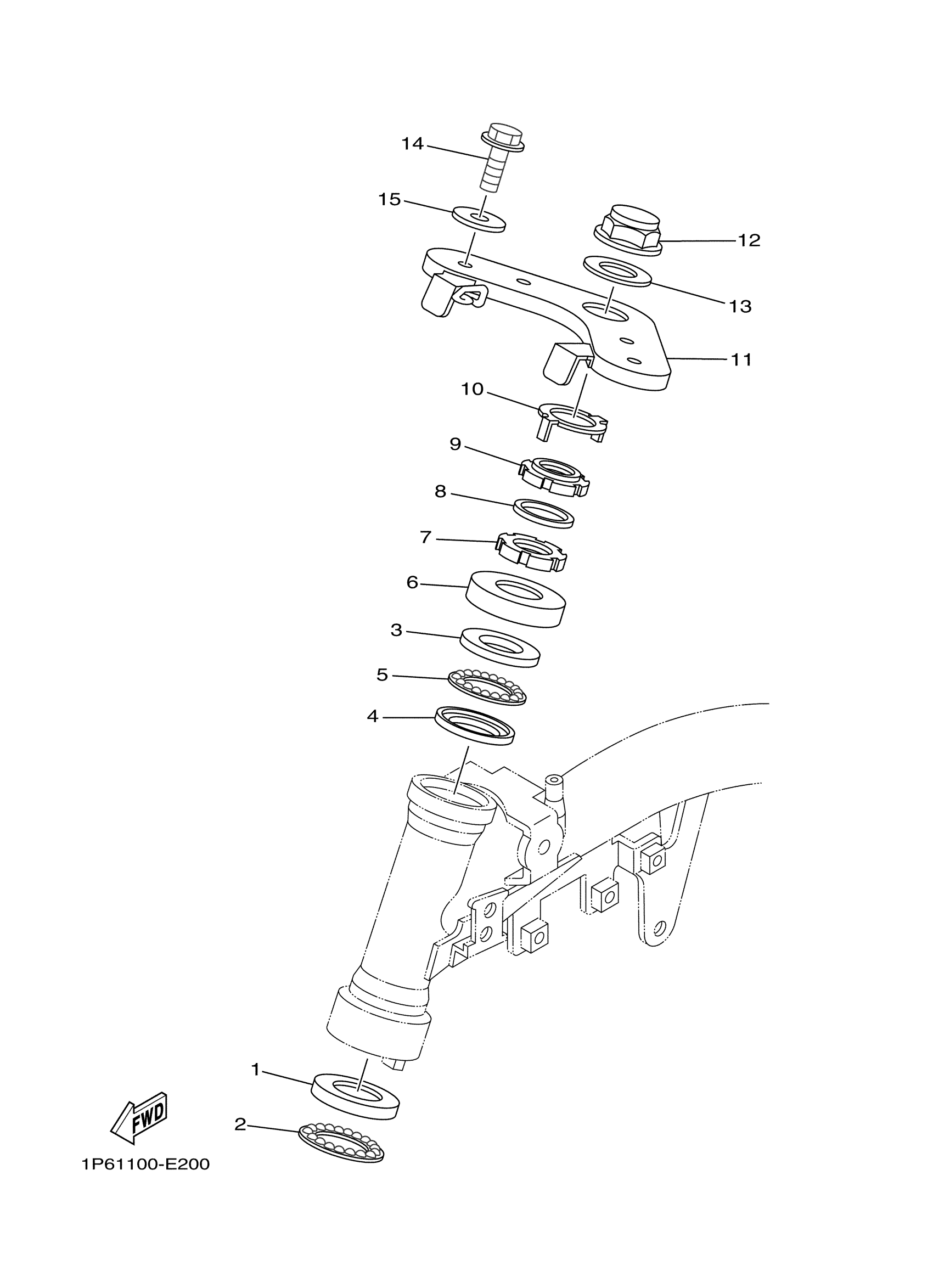

Yamaha TTR50EW (TT-R50E) 1P64 2007 STEERING Diagram

RACE, BALL 2

RETAINER, BALL BEARING

RACE, BALL 1

RACE, BALL 2

RETAINER, BALL BEARING

COVER, BALL RACE 2

NUT

WASHER, PLATE (26H)

NUT

WASHER,SPECIAL

HANDLE CROWN COMP.

SCREW,FLAT HEAD

WASHER, FELT

BOLT, FLANGE

WASHER, PLATE(8BV)
