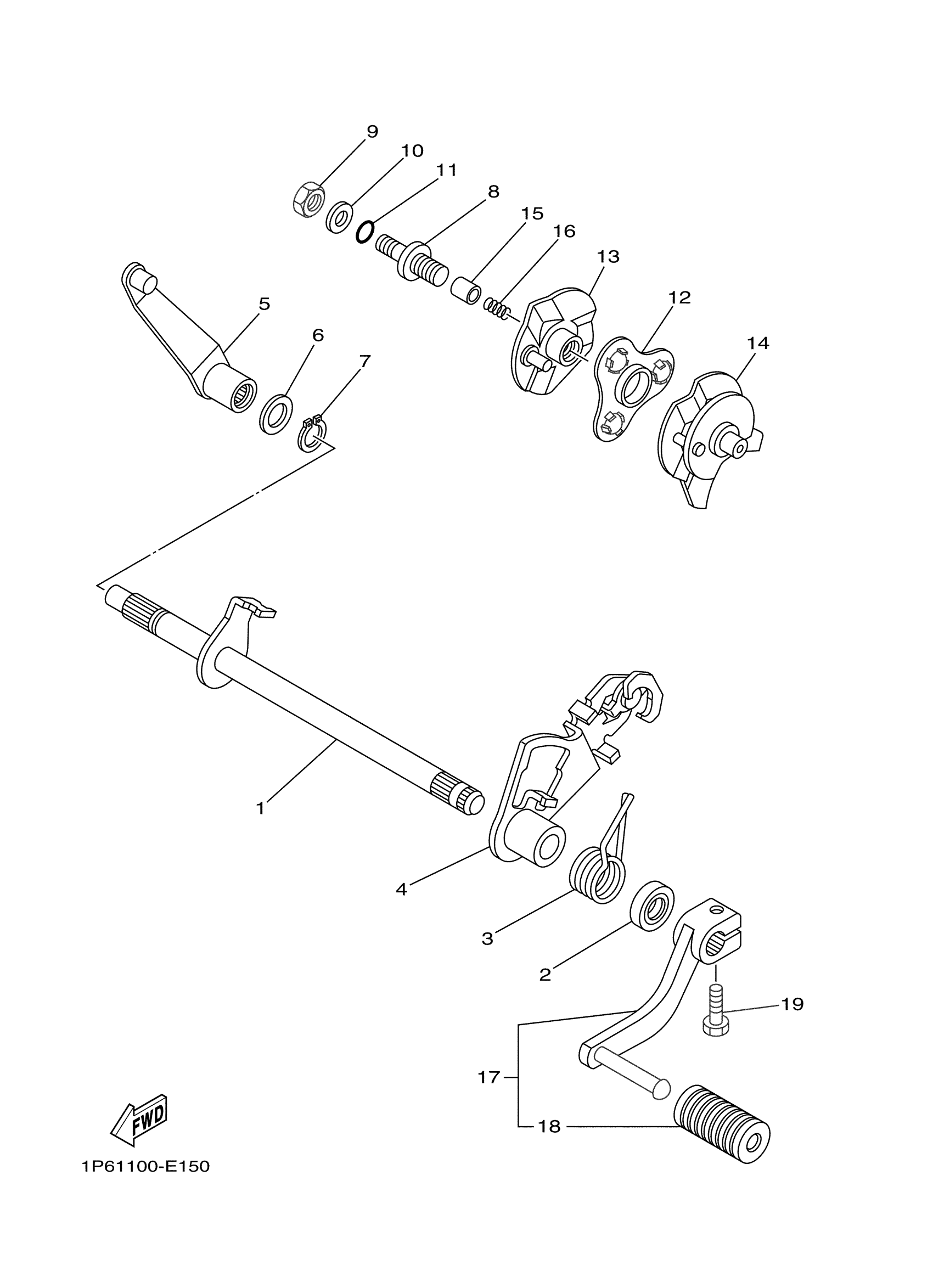

Yamaha TTR50EW (TT-R50E) 1P64 2007 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY

1P6-E8101-01-00

$60.99

2

SEAL, OIL (30X)

93102-12321-00

$12.49

3

SPRING, TORSION

90508-29007-00

$11.49

4

SHIFT LEVER ASSY

1P6-18120-00-00

Unavailable

5

ARM, SHIFT 3

1P6-1817A-00-00

Unavailable

6

WASHER PLATE 164185720000

90201-12166-00

$9.49

7

CIRCLIP(10Y)

99009-12400-00

$3.59

8

SCREW, ADJUSTING

1P6-E8186-01-00

Unavailable

9

NUT

90170-08803-00

$2.17

10

WASHER(6TA)

92907-08600-00

$3.03

11

O-RING

93210-08003-00

$9.49

12

HOLDER, PAWL

1P6-18181-00-00

Unavailable

13

SHIFT GUIDE COMP.

1P6-18104-00-00

Unavailable

14

GUIDE SHIFT COMP. 2

1P6-18106-00-00

Unavailable

15

PIN, PAWL

1P6-E8184-00-00

Unavailable

16

SPRING

1P6-E8183-00-00

Unavailable

17

SHIFT PEDAL ASSY

1P6-E8110-10-00

Unavailable

18

COVER,SHIFT PEDAL

1KL-E8113-00-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

Unavailable
