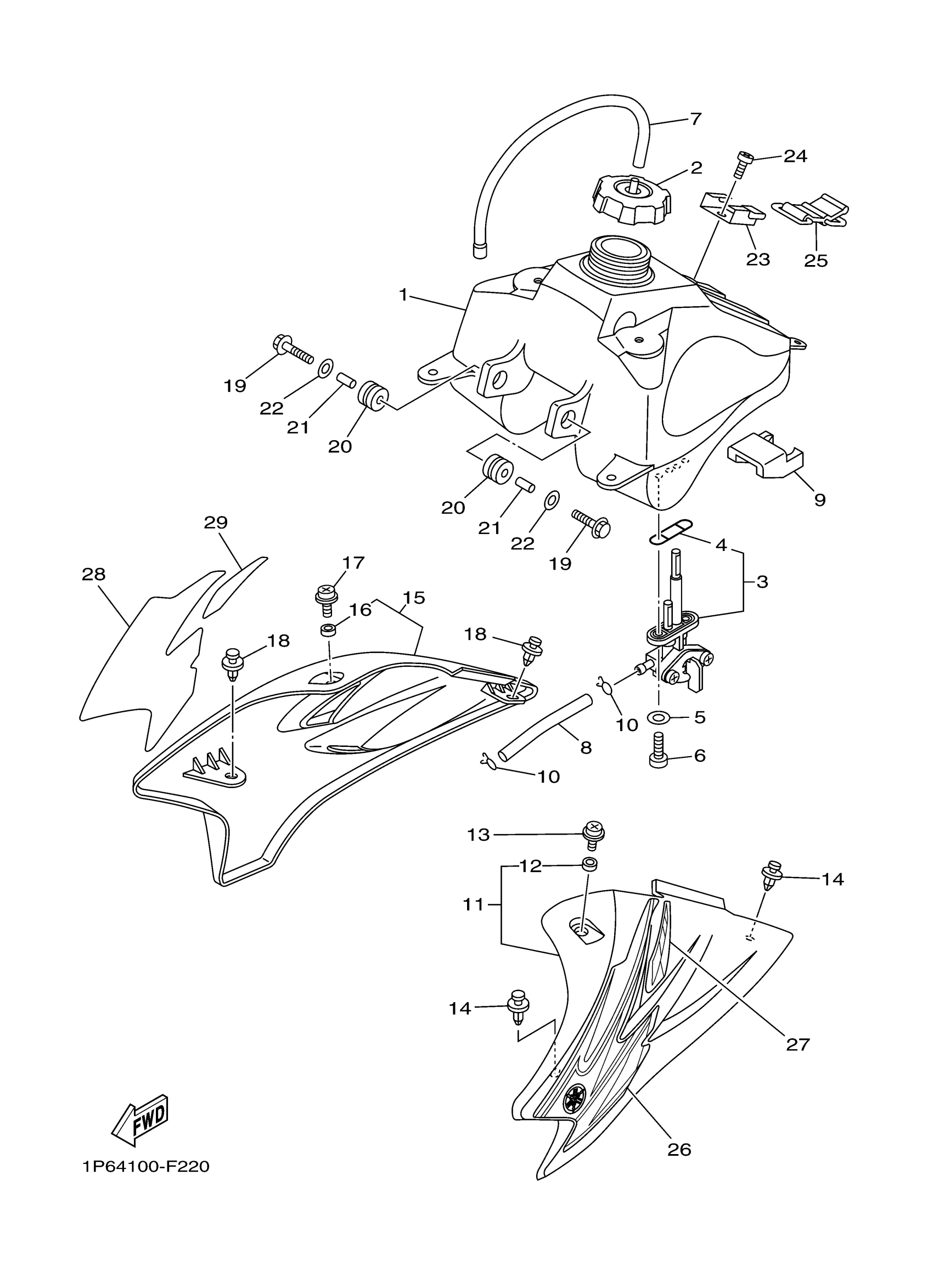

Yamaha TTR50EW (TT-R50E) 1P64 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1P6-24110-00-00

Unavailable

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

FUEL COCK ASSY 1

1P6-24500-00-00

$73.99

4

GASKET

1P6-24512-00-00

$7.99

5

WASHER, PLATE(3MB)

90202-05187-00

$1.38

6

SCREW 256241430000

90149-06011-00

$5.60

7

PIPE, BREATHER

1P6-F1826-10-00

$16.49

8

PIPE, FUEL 1

1P6-24311-00-00

$21.99

9

DAMPER, LOCATING 1

1P6-F4181-00-00

Unavailable

10

CLIP

90467-090A2-00

$4.41

11

SCOOP AIR ASSY. 1

1P6-F137A-00-00

$77.99

12

COLLAR

90387-07805-00

$12.49

13

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

14

RIVET(4JH)

90269-07076-00

$7.49

15

SCOOP AIR ASSY. 2

1P6-F137B-00-00

$77.99

16

COLLAR

90387-07805-00

$12.49

17

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

18

RIVET(4JH)

90269-07076-00

$7.49

19

BOLT, FLANGE

95817-06030-00

Unavailable

20

GROMMET

90480-18803-00

Unavailable

21

COLLAR

90387-07804-00

Unavailable

22

WASHER PLATE 137241870000

90201-06072-00

Unavailable

23

STAY, FUEL TANK 2

1P6-F4116-01-00

Unavailable

24

SCREW, BINDING

98907-06010-00

Unavailable

25

BAND, TANK FITTING1

1P6-F4173-00-00

Unavailable

26

GRAPHIC, FUEL TANK 1

1P6-F4244-10-00

Unavailable

27

GRAPHIC, FUEL TANK 2

1P6-F4245-10-00

Unavailable

28

GRAPHIC 3

1P6-F4246-10-00

Unavailable

29

GRAPHIC

1P6-F4247-10-00

Unavailable
