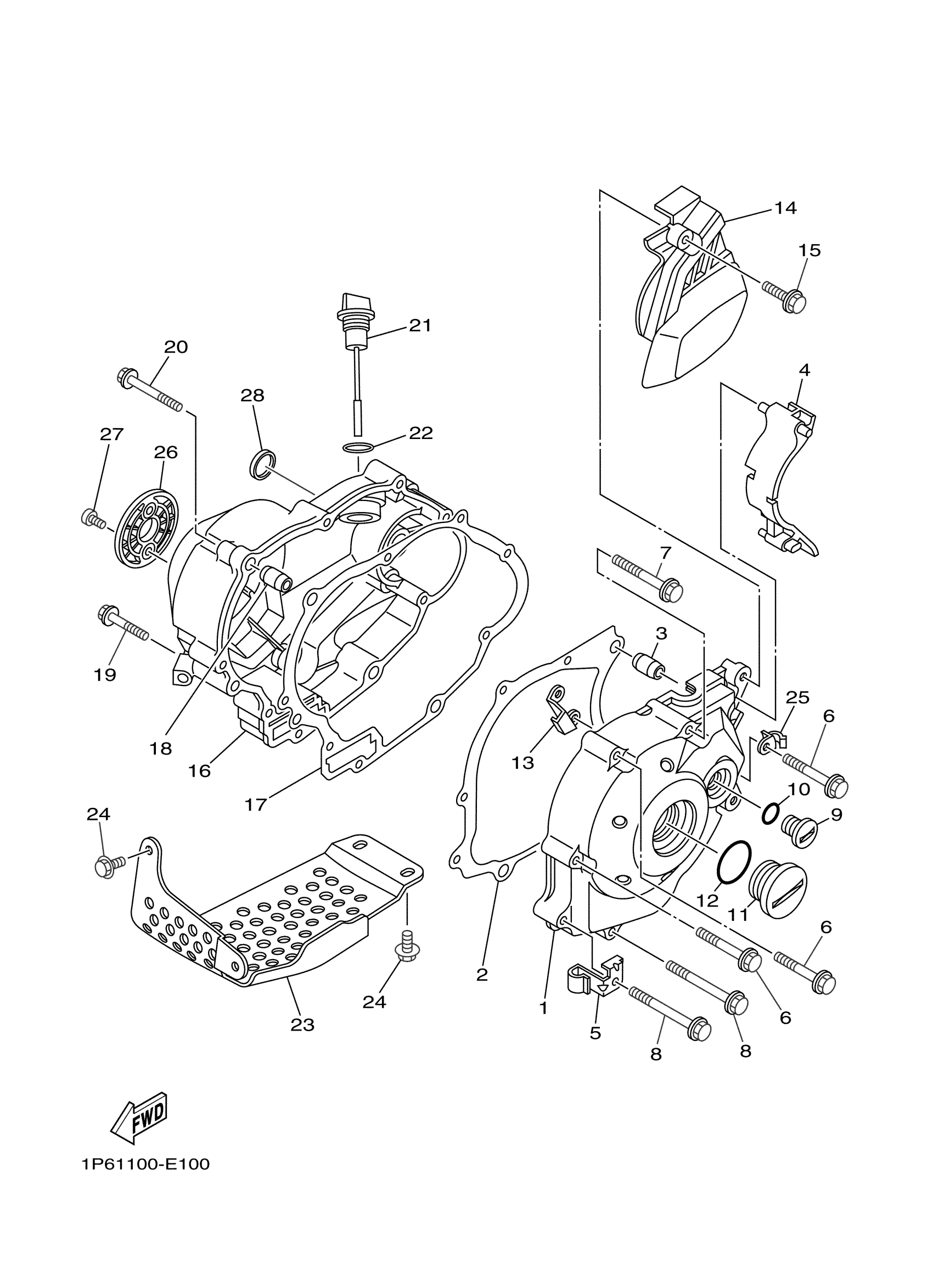

Yamaha TTR50EW (TT-R50E) 1P64 2007 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1P6-E5411-20-00

$281.43

2

GSKT,CRANKCASE COVER 1

1P6-E5451-00-00

$19.19

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

GUIDE, CHAIN

1P6-E7466-00-00

$102.55

5

CLAMP 2

1P6-E5484-01-00

Unavailable

6

BOLT, SMALL FLANGE

95027-06040-00

$2.31

7

BOLT, SMALL FLANGE

95027-06050-00

$1.68

8

BOLT, WASHER BASED

90105-065A1-00

$2.63

9

PLUG,STRAIGHT SCREW

90340-14818-00

Unavailable

10

O-RING (2H9)

93210-14369-00

$5.42

11

PLUG,STRAIGHT SCREW

90340-32813-00

Unavailable

12

O-RING (341)

93210-32172-00

$5.39

13

PLATE

1P6-E5113-00-00

Unavailable

14

COVER, CHAIN CASE 1

1P6-E5418-00-00

$34.48

15

BOLT, SMALL FLANGE

95027-06025-00

$2.95

16

COVER, CRANKCASE 2

1P6-E5421-20-00

Unavailable

17

GSKT.,CRANKCASE COVER 2

1P6-E5461-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.13

19

BOLT, SMALL FLANGE

95027-06040-00

$2.31

20

BOLT, SMALL FLANGE

95027-06050-00

$1.68

21

PLUG, OIL LEVEL

1P6-E5362-00-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

COVER, STARTING MOTOR

1P6-E5436-01-00

Unavailable

24

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

25

CLAMP

90465-08803-00

Unavailable

26

COVER,CRANKCASE 3

1P6-E5431-00-00

Unavailable

27

GASKET, EXHAUST

98507-05008-00

Unavailable

28

PLUG

90338-26802-00

Unavailable
