Partiron

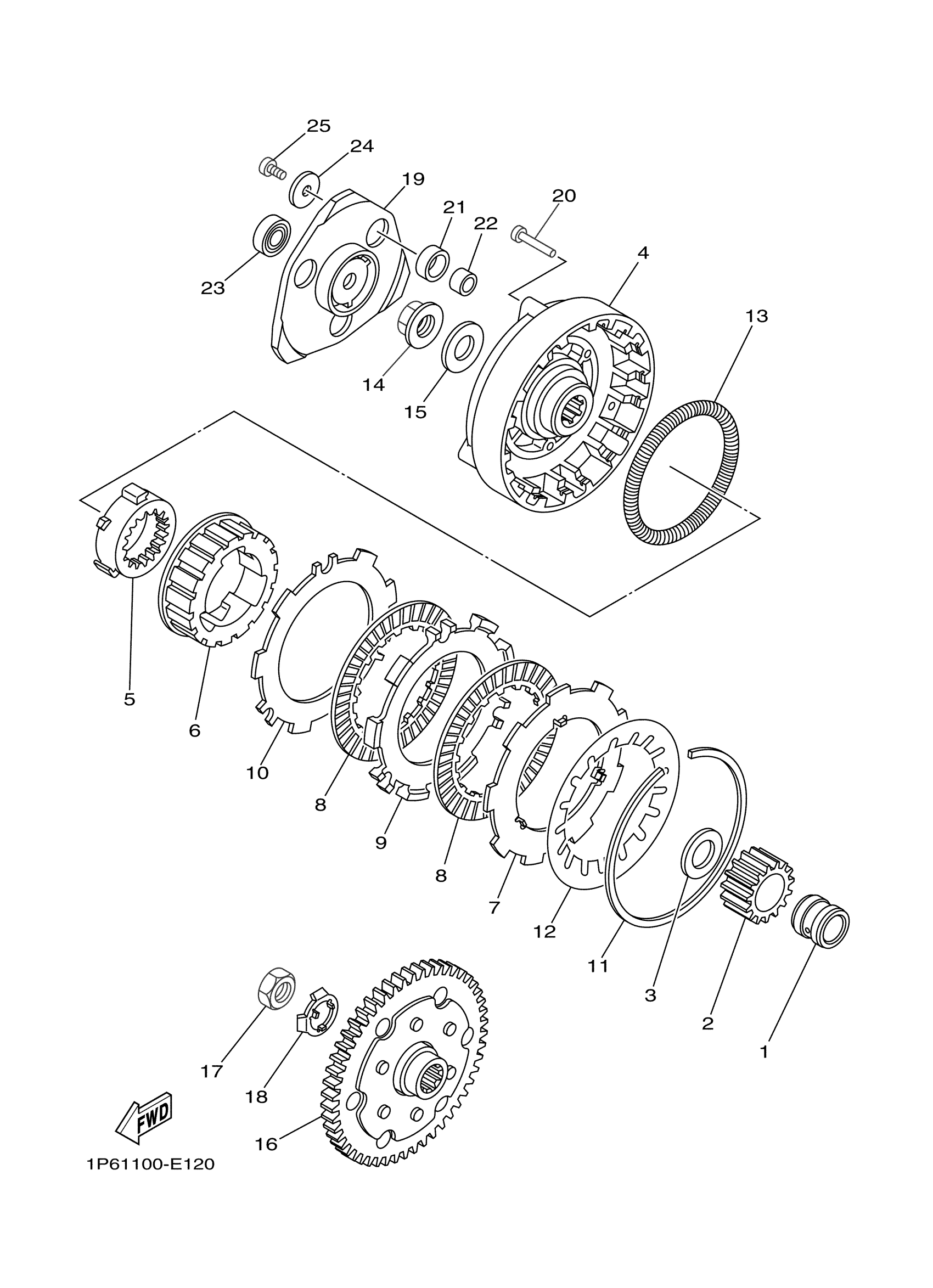

Yamaha TTR50EW (TT-R50E) 1P64 2007 CLUTCH Diagram

#

Description
Price

1

COLLAR 1

1P6-E6116-00-00

$14.95

2

GEAR, PRIMARY DRIVE

1P6-E6111-10-00

$61.55

3

WASHER,PLATE

90201-17801-00

$2.61

4

HSG.,CLUTCH

1P6-E6311-00-00

$100.29

5

GEAR,OUTER DRIVE

1P6-E6818-01-00

$124.26

6

BOSS, CLUTCH

1P6-E6571-01-00

Unavailable

7

PLATE,CLUTCH 1

1P6-E6324-00-00

$33.73

8

PLATE,FRICTIONG

1P6-E6330-00-00

$66.89

9

PLATE, CLUTCH 2

1P6-E6325-00-00

$16.79

10

PLATE, CLUTCH 3

1P6-E6326-00-00

$27.47

11

CIRCLIP,CLUTCH

1P6-E6819-00-00

$32.64

12

SPRING,DISK

1P6-E6821-00-00

$56.55

13

SPRING,GARTER

1P6-E6822-10-00

$70.80

14

NUT

90179-14802-00

$4.33

15

WASHER, CONICAL SPRING

90208-14033-00

$2.89

16

PRIMARY DRIVEN GEA

1P6-E6170-10-00

Unavailable

17

NUT,LOCK

1P6-E6377-00-00

Unavailable

18

WASHER, LOCK

1P6-E6378-00-00

Unavailable

19

PLATE, PRESSURE 1

1P6-E6551-00-00

Unavailable

20

PIN,GUIDE

1P6-E6552-00-00

Unavailable

21

BUSH

1P6-E6152-00-00

$18.98

22

ABSORBER 2

1P6-E6125-00-00

Unavailable

23

BEARING

93306-900Y0-00

Unavailable

24

WASHER,PLATE

90201-05810-00

Unavailable

25

SCREW, PAN HEAD

98512-05012-00

Unavailable
