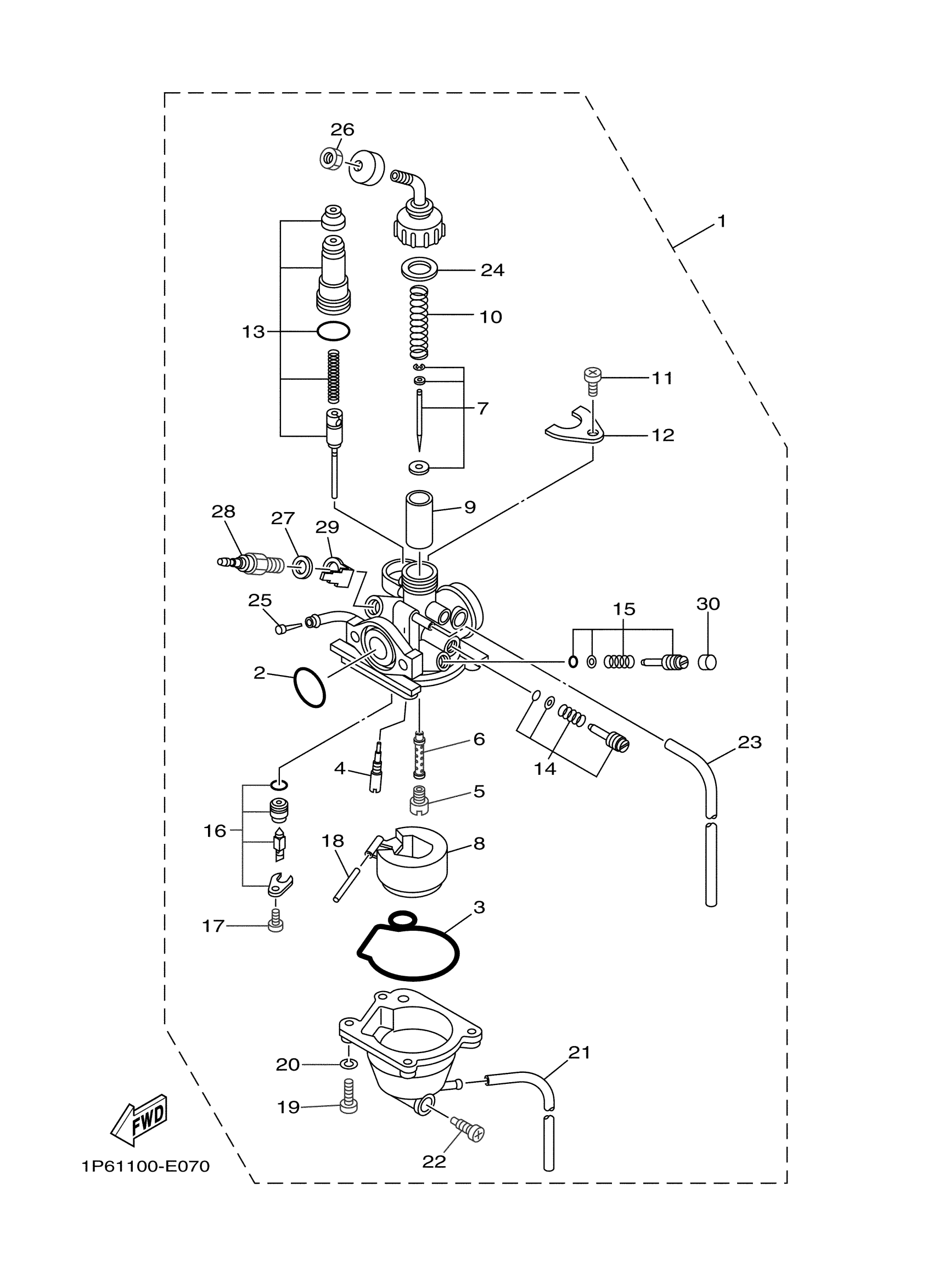

Yamaha TTR50EW (TT-R50E) 1P64 2007 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1P6-E4101-10-00

Unavailable

2

O-RING 1

68V-8182L-00-00

$15.30

3

O-RING

1P6-14147-00-00

$9.99

4

JET, PILOT (# 12.5)

1P6-14142-12-00

$14.49

5

JET, MAIN (# 62.5)

18A-1414A-63-00

$14.49

6

NOZZLE, MAIN

1P6-14141-12-00

$33.99

7

NEEDLE SET

1P6-1490J-00-00

Unavailable

8

FLOAT

1P6-14185-00-00

$75.99

9

VALVE, THROTTLE 1

1P6-14112-25-00

Unavailable

10

SPRING, THROTTLE VALVE

1P6-14131-00-00

Unavailable

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

PLATE

5GJ-14945-00-00

Unavailable

13

STARTER SET

1P6-1410A-00-00

$66.99

14

THROTTLE SCREW SET

1P6-14103-00-00

$43.99

15

AIR SCREW SET

1P6-14104-00-00

$22.99

16

NEEDLE VALVE SET

1P6-14107-12-00

Unavailable

17

SCREW, PAN

98507-03006-00

Unavailable

18

PIN, FLOAT

53L-14186-00-00

Unavailable

19

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

20

WASHER(6TA)

92907-04100-00

Unavailable

21

PIPE

1P6-14196-00-00

Unavailable

22

PLUG, DRAIN

5LW-14191-00-00

Unavailable

23

. PIPE

1P6-14197-00-00

Unavailable

24

GASKET

1P6-14126-00-00

Unavailable

25

NET, FILTER

5LW-14994-00-00

Unavailable

26

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

27

WASHER

5CY-14951-00-00

Unavailable

28

HEATER ASSY

5FU-83790-00-00

Unavailable

29

TERMINAL 1

5FU-82103-00-00

Unavailable

30

CAP

3F9-14118-00-00

Unavailable
