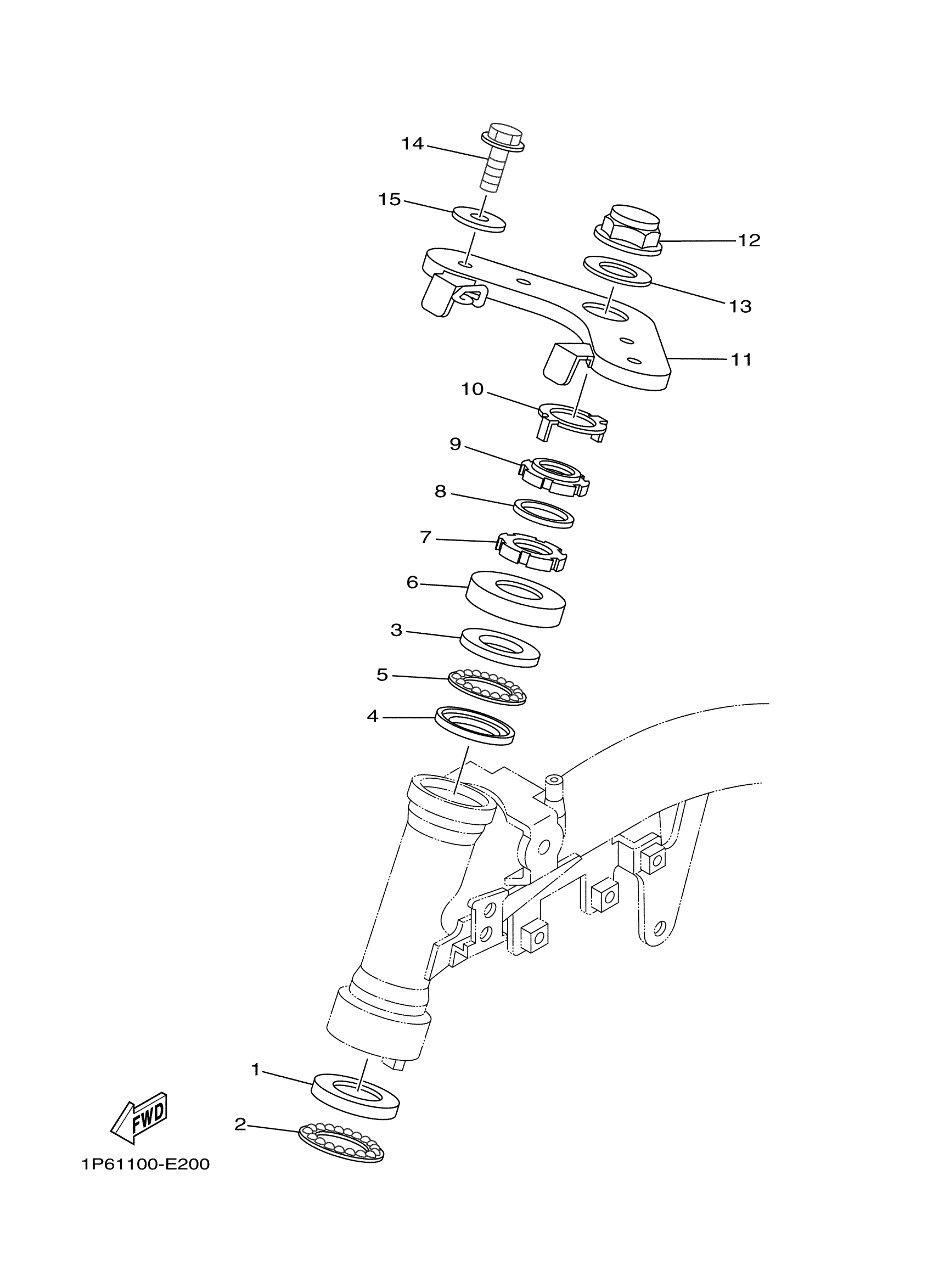

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$9.05

2

RETAINER, BALL BEARING

5VL-F341E-00-00

Unavailable

3

RACE, BALL 1

BP2-23411-00-00

$7.83

4

RACE, BALL 2

BP2-23412-00-00

$5.33

5

RETAINER, BALL BEARING

1P6-F341E-00-00

Unavailable

6

COVER, BALL RACE 2

1P6-F3416-00-00

Unavailable

7

NUT

90179-25004-00

$19.41

8

WASHER, PLATE (26H)

90202-26142-00

$7.52

9

NUT

90179-22801-00

$10.92

10

WASHER,SPECIAL

1P6-F3418-00-00

Unavailable

11

HANDLE CROWN COMP.

1P6-F3430-00-00

Unavailable

12

SCREW,FLAT HEAD

90176-22801-00

Unavailable

13

WASHER, FELT

5VL-F3165-01-00

$4.06

14

BOLT, FLANGE

95817-10030-00

$5.75

15

WASHER, PLATE(8BV)

90201-100S7-00

$9.61
