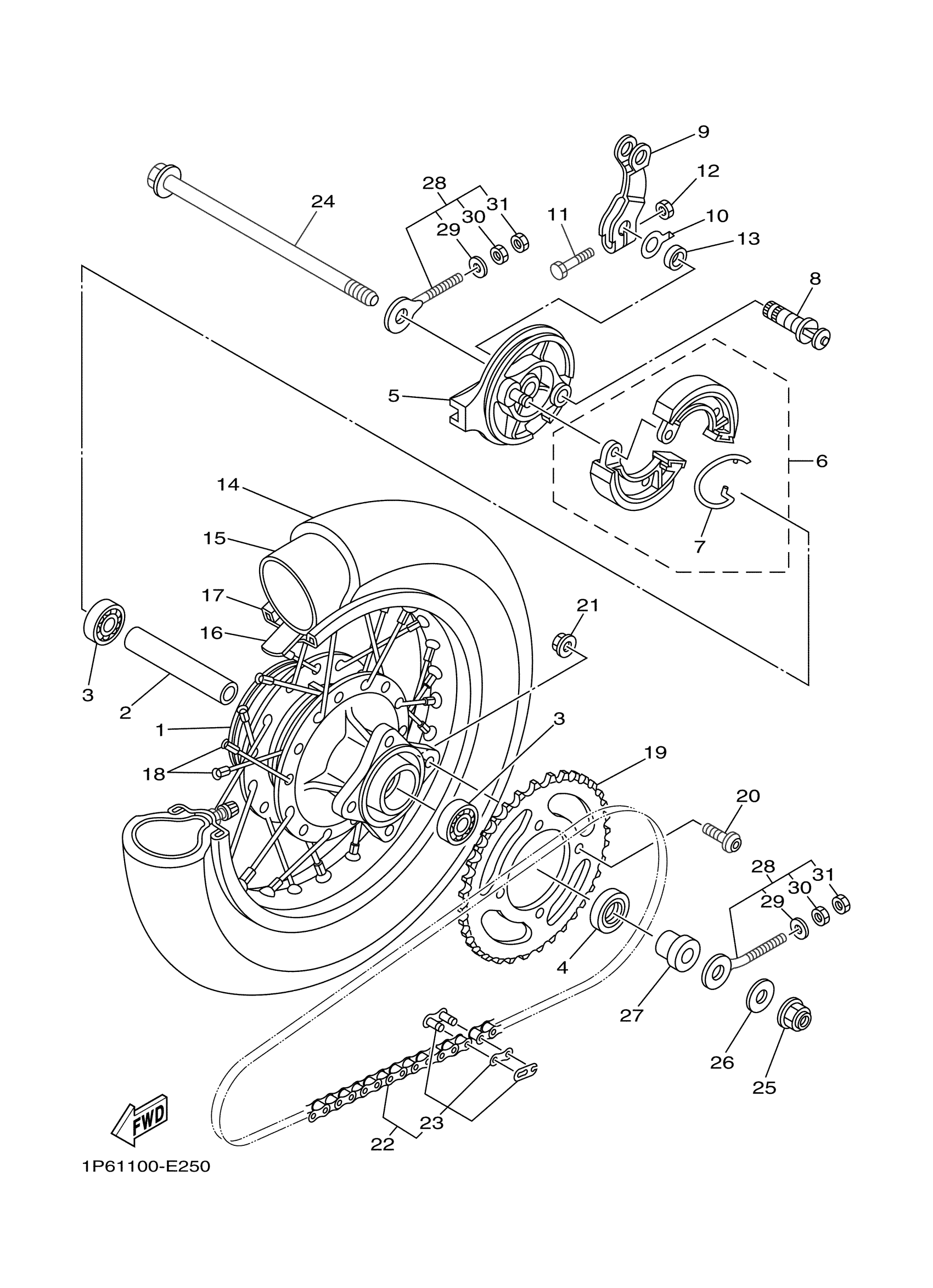

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 REAR WHEEL Diagram
#
Description
Price
7
SPRING, RETURN
1P6-25133-00-00
Unavailable
14
TIRE (2.50-10 C183A 4PR TT)
94125-10800-00
Unavailable
16
BAND, RIM
94325-10800-00
Unavailable
17
RIM
94414-10800-00
Unavailable
18
SPOKE SET, FRONT
1P6-F5104-01-00
Unavailable
19
SPROCKET, RR.WHEEL
1P6-F5437-20-00
Unavailable
20
BOLT
90111-08024-00
Unavailable
21
NUT, SELF-LOCKING
90185-08169-00
Unavailable
22
CHAIN
94568-A1080-00
Unavailable
23
JOINT, CHAIN
94668-A1001-00
Unavailable
24
AXLE, WHEEL
1P6-F5381-01-00
Unavailable
25
NUT, U FLANGE
95607-12200-00
Unavailable
26
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
27
COLLAR
90387-12834-00
Unavailable
28
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
29
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
30
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
