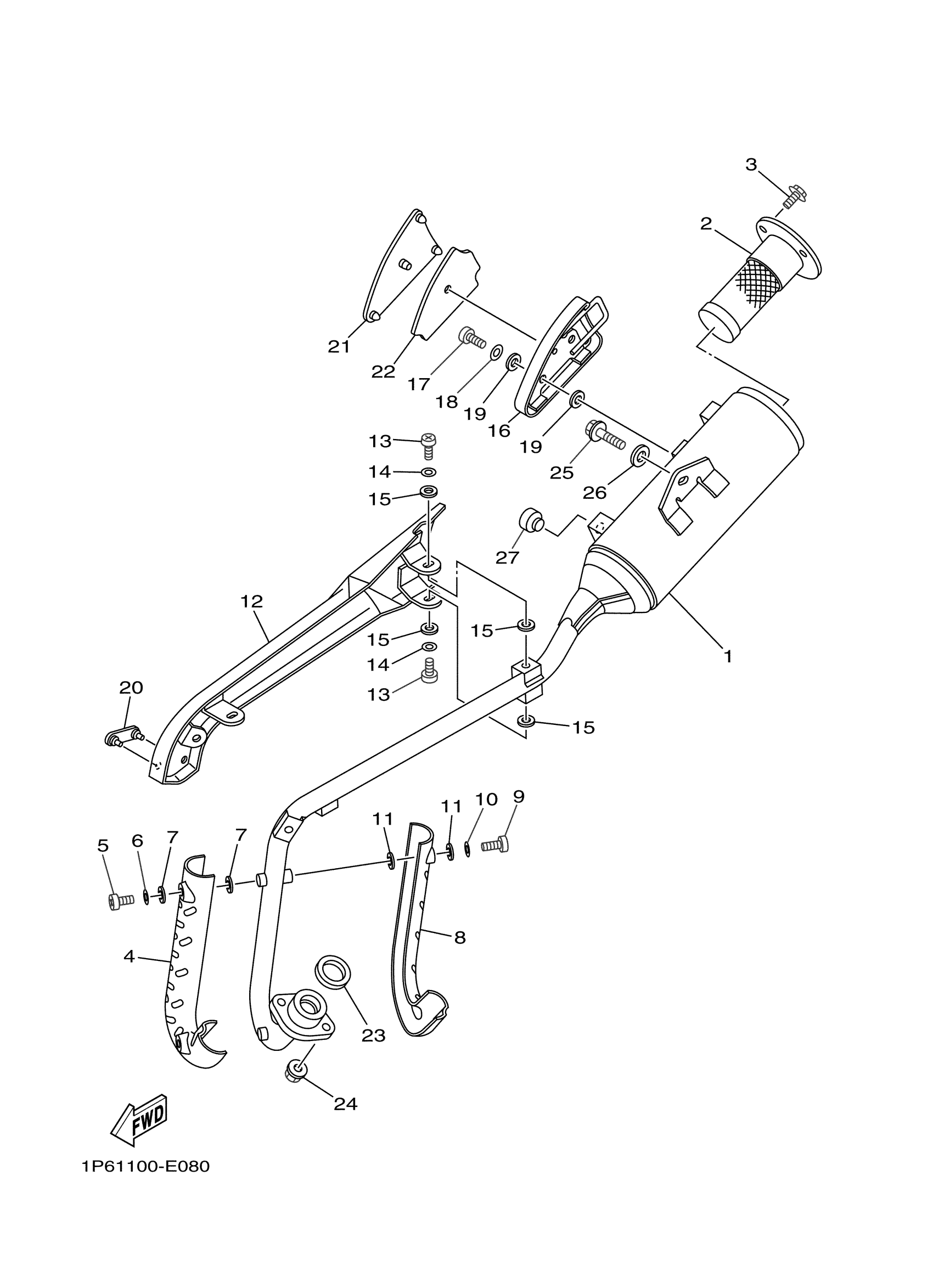

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 EXHAUST Diagram

#

Description
Price

1

MUFFLER 1

1P6-E4711-00-00

$306.99

2

SPARK ARRESTER ASSY

1P6-14780-00-00

$137.99

3

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

4

PROTECTOR,MUFFLER

1P6-E4718-00-00

$102.99

5

GASKET, EXHAUST

98507-05008-00

$3.55

6

WASHER(1RW)

92907-05600-00

$3.78

7

WASHER

1P6-E4766-00-00

Unavailable

8

PROTECTOR,MUFFLER

1P6-E4728-00-00

$44.99

9

GASKET, EXHAUST

98507-05008-00

$3.55

10

WASHER(1RW)

92907-05600-00

$3.78

11

WASHER

1P6-E4766-00-00

Unavailable

12

PROTECTER,MUFFLER 3

1P6-E4738-00-00

$94.99

13

SCREW, PAN

98507-06010-00

$3.55

14

WASHER(6TA)

92907-06600-00

$2.72

15

WASHER, PLATE

90201-05017-00

Unavailable

16

PROTECTER,SILENCER

1P6-E4758-00-00

Unavailable

17

SCREW, PAN

98507-06010-00

$3.55

18

WASHER(6TA)

92907-06600-00

$2.72

19

WASHER, PLATE

90201-05017-00

Unavailable

20

COVER,1

1P6-E479H-00-00

Unavailable

21

COVER,2

1P6-E479J-00-00

Unavailable

22

MAT

1P6-E4733-00-00

Unavailable

23

GASKET,EXT.1

1P6-E4613-00-00

Unavailable

24

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

25

BOLT, FLANGE

95812-08030-00

Unavailable

26

WASHER, PLATE

90201-08048-00

Unavailable

27

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable
