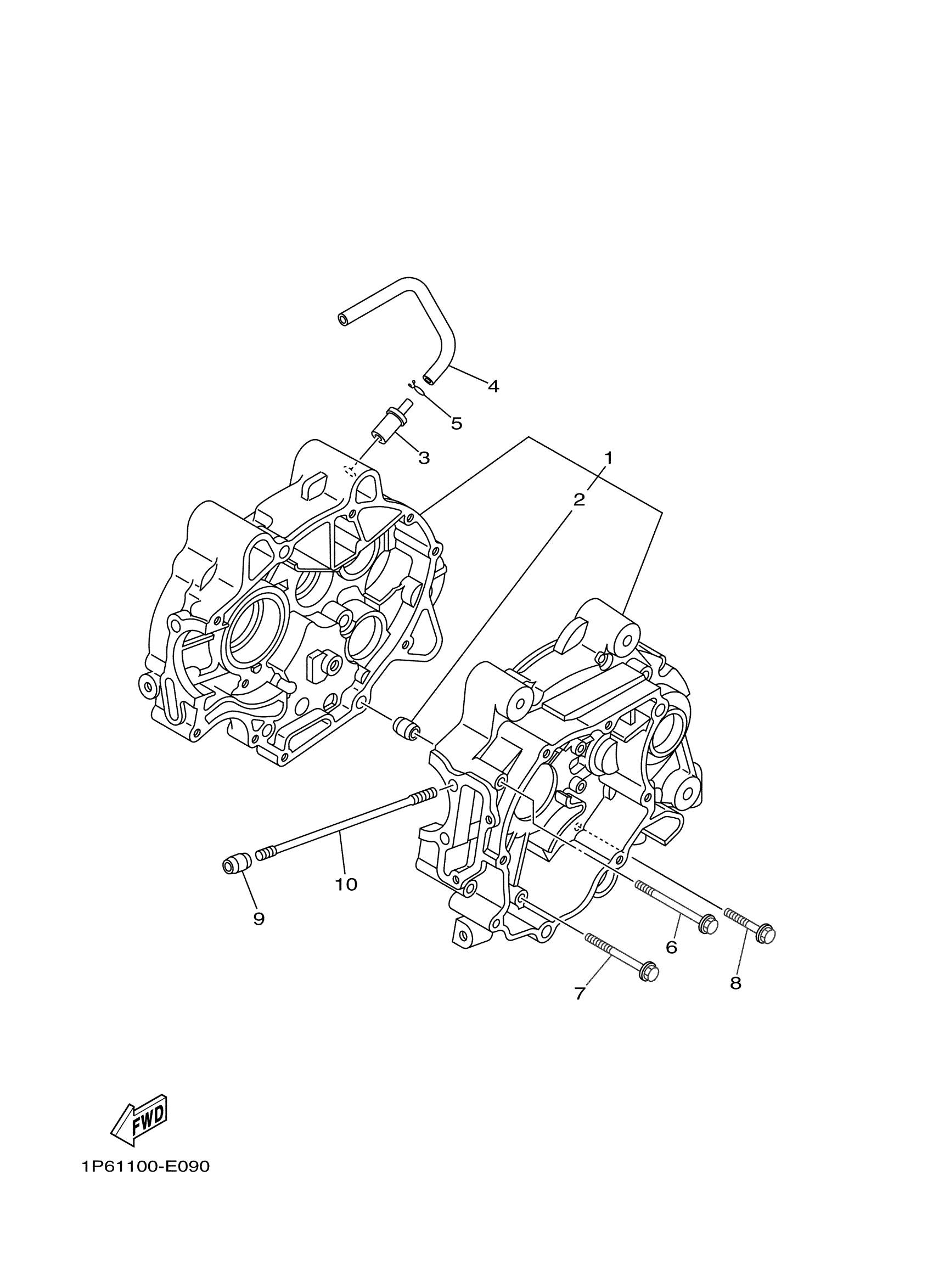

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1P6-E5100-00-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.13

3

BREATHER

1P6-E5371-10-00

Unavailable

4

HOSE, BREATHER 1

1P6-E531A-00-00

Unavailable

5

CLIP

90467-090A2-00

$2.47

6

BOLT, WASHER BASED

90105-065A1-00

$2.63

7

BOLT, SMALL FLANGE

95027-06060-00

$1.91

8

BOLT, SMALL FLANGE

95027-06040-00

$2.31

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

BOLT, STUD

90116-08573-00

$7.52
