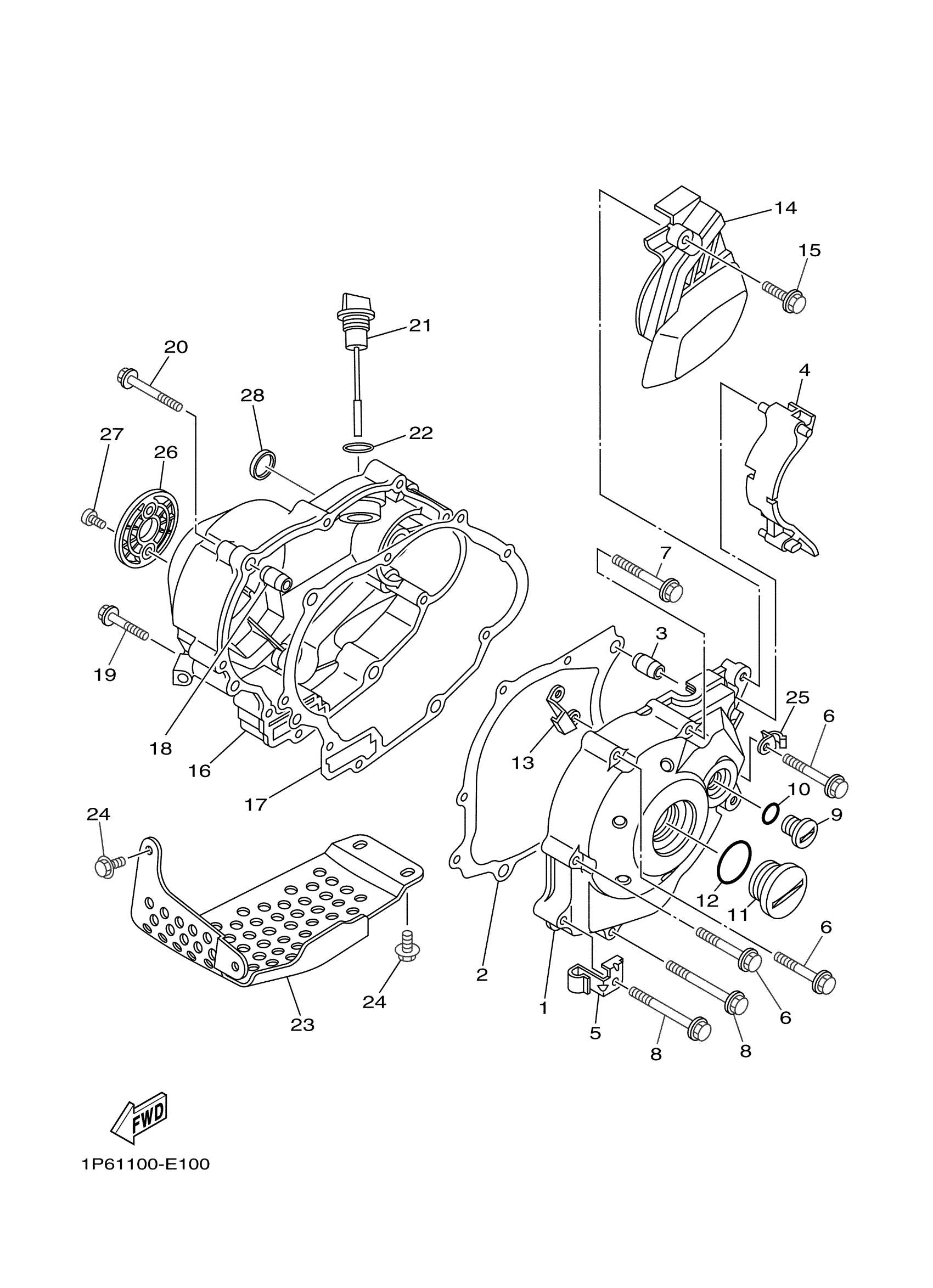

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1P6-E5411-20-00

$346.99

2

GSKT,CRANKCASE COVER 1

1P6-E5451-00-00

$25.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

GUIDE, CHAIN

1P6-E7466-00-00

$112.99

5

CLAMP 2

1P6-E5484-01-00

Unavailable

6

BOLT, SMALL FLANGE

95027-06040-00

$3.28

7

BOLT, SMALL FLANGE

95027-06050-00

$2.55

8

BOLT, WASHER BASED

90105-065A1-00

$4.14

9

PLUG,STRAIGHT SCREW

90340-14818-00

Unavailable

10

O-RING (2H9)

93210-14369-00

$7.49

11

PLUG,STRAIGHT SCREW

90340-32813-00

Unavailable

12

O-RING (341)

93210-32172-00

$7.49

13

PLATE

1P6-E5113-00-00

Unavailable

14

COVER, CHAIN CASE 1

1P6-E5418-00-00

$40.99

15

BOLT, SMALL FLANGE

95027-06025-00

$4.16

16

COVER, CRANKCASE 2

1P6-E5421-20-00

Unavailable

17

GSKT.,CRANKCASE COVER 2

1P6-E5461-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

BOLT, SMALL FLANGE

95027-06040-00

$3.28

20

BOLT, SMALL FLANGE

95027-06050-00

$2.55

21

PLUG, OIL LEVEL

1P6-E5362-00-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

COVER, STARTING MOTOR

1P6-E5436-01-00

Unavailable

24

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

25

CLAMP

90465-08803-00

Unavailable

26

COVER,CRANKCASE 3

1P6-E5431-00-00

Unavailable

27

GASKET, EXHAUST

98507-05008-00

Unavailable

28

PLUG

90338-26802-00

Unavailable
