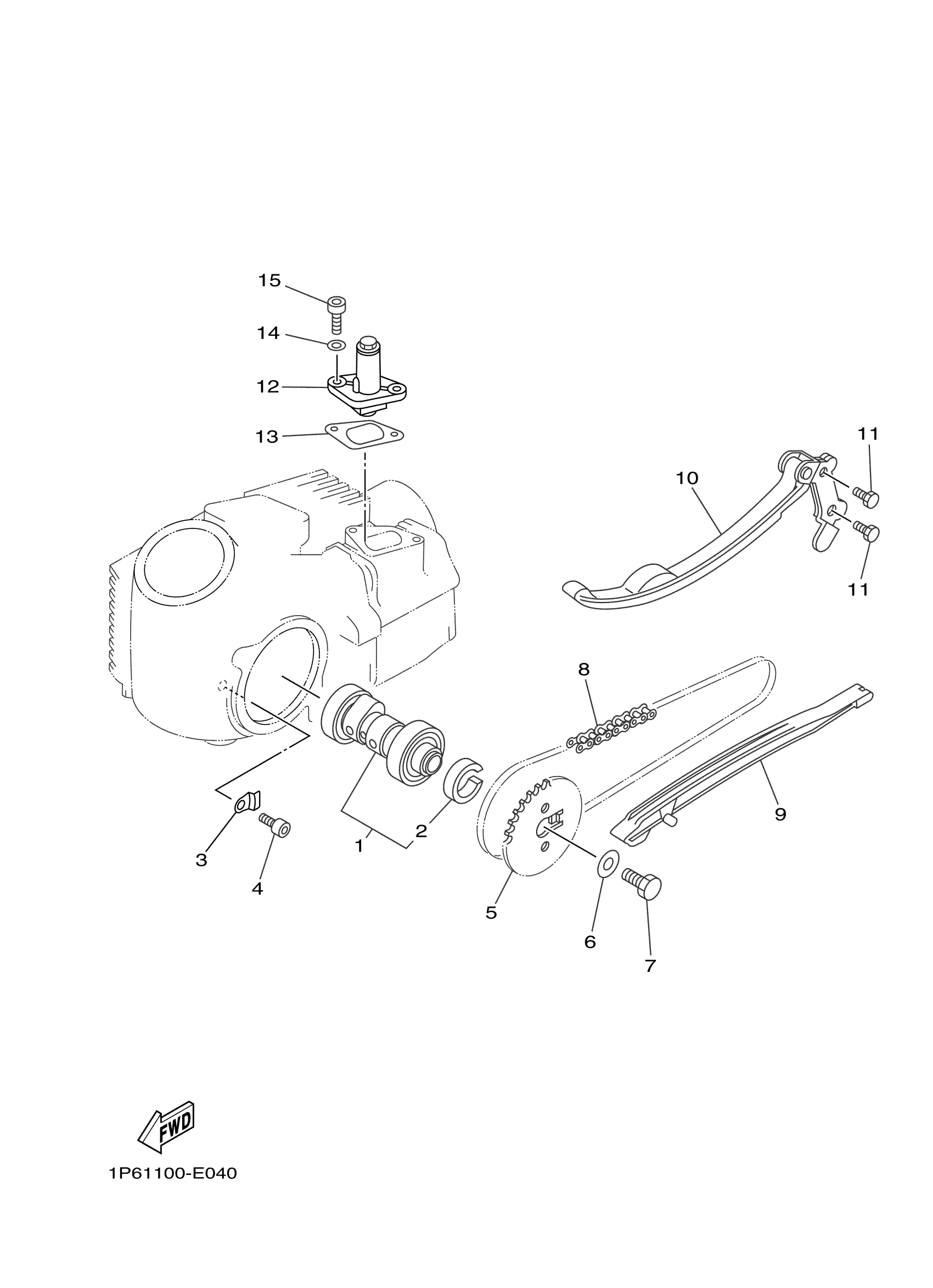

Yamaha TTR50EV (TT-R50E ELECTRIC) 1P61 2006 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAM SHAFT ASSY.

1P6-E2170-00-00

Unavailable

2

COLLAR(50M)

90387-167L5-00

Unavailable

3

PLATE

1P6-E111F-00-00

Unavailable

4

BOLT,HEXAGON SOCKET HEAD

90110-06829-00

Unavailable

5

SPROCKET

1P6-E2176-00-00

$19.99

6

WASHER, PLATE

90201-08048-00

$5.60

7

BOLT

90101-08055-00

$7.49

8

CHAIN

94591-51084-00

$22.99

9

GUIDE, STOPPER 1

1P6-E2231-00-00

$23.99

10

GUIDE, STOPPER 2

1P6-E2241-00-00

$39.99

11

BOLT(3MA)

91312-06016-00

$5.60

12

TENSIONER ASSY, CAM CHAIN

4GL-12210-00-00

$88.99

13

GASKET, TENSIONER C

5VL-E2213-10-00

$4.47

14

GASKET 256113960000

90430-06014-00

Unavailable

15

BOLT,SOCKET

91317-06016-00

$1.25
