Description

Price

1

AXLE, MAIN

1P6-E7411-10-00

$74.99

2

GEAR, 3RD PINION

1P6-E7131-30-00

Unavailable

3

WASHER

1P6-E7648-00-00

$5.49

4

CLIP, GEAR HOLD 1

1P6-E7217-00-00

$4.21

5

GEAR, 2ND PINION

1P6-E7121-30-00

$66.99

6

AXLE, DRIVE

1P6-E7421-10-00

Unavailable

7

GEAR, 2ND WHEEL

1P6-E7221-30-00

$89.99

8

WASHER(59V)

90209-17285-00

$9.49

9

CIRCLIP (525)

93410-20038-00

$3.76

10

GEAR, 3RD WHEEL (2

1P6-E7231-30-00

Unavailable

11

GEAR, 1ST WHEEL (28T/39T)

1P6-E7211-30-00

Unavailable

12

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

13

CIRCLIP

93440-15012-00

$8.49

14

BEARING

93306-253YJ-00

$31.99

15

BEARING

93306-001X3-00

Unavailable

16

BEARING

93306-252Y6-00

Unavailable

17

BEARING

93306-204YD-00

Unavailable

18

OIL SEAL

93102-20802-00

Unavailable

19

SPROCKET, DRIVE(13T)

93812-13812-00

Unavailable

20

CIRCLIP (525)

93410-20038-00

$3.76

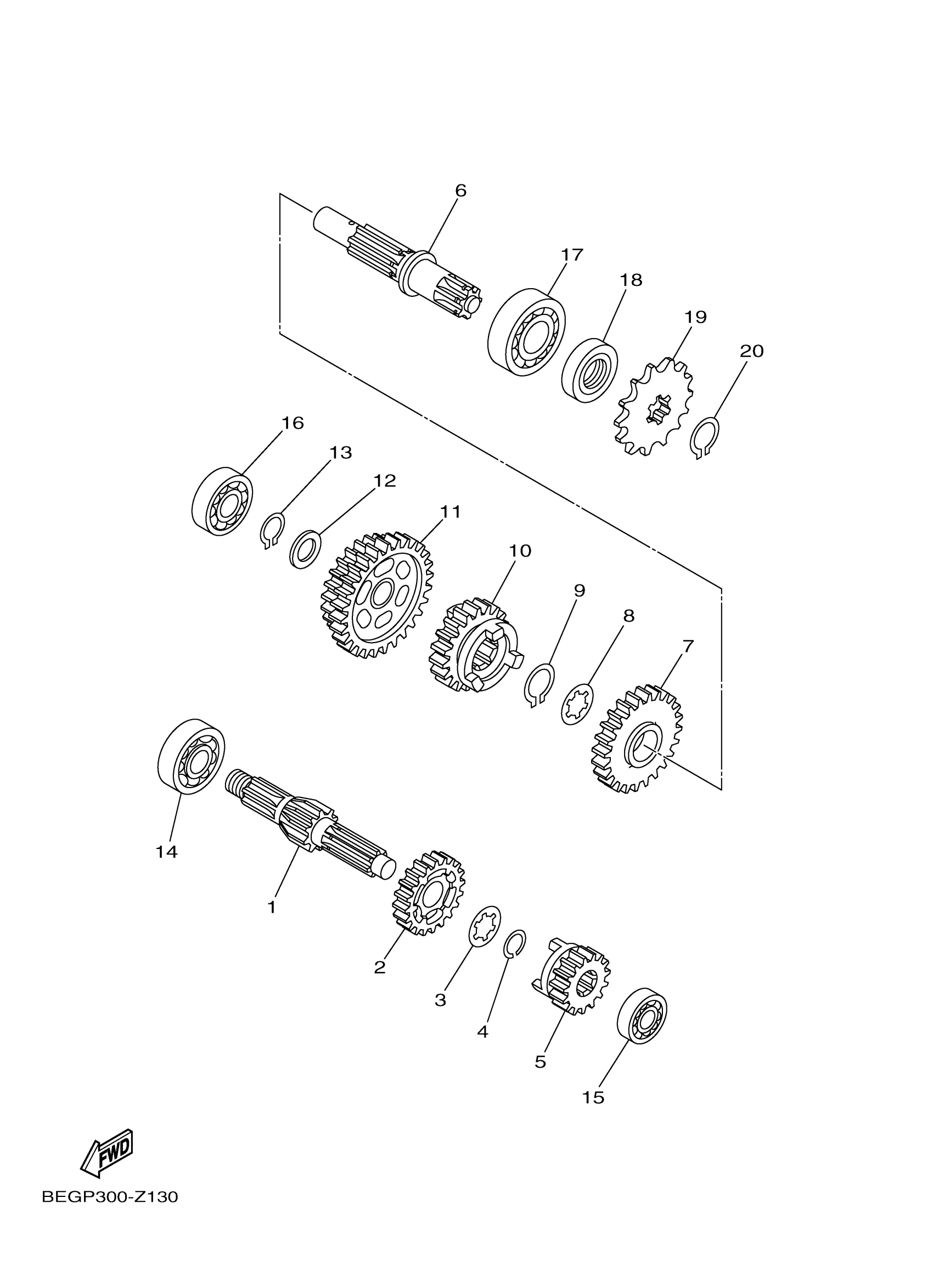

Yamaha TTR50ETC (TTR50E) DP62 2026 TRANSMISSION Diagram

AXLE, MAIN

GEAR, 3RD PINION

WASHER

CLIP, GEAR HOLD 1

GEAR, 2ND PINION

AXLE, DRIVE

GEAR, 2ND WHEEL

WASHER(59V)

CIRCLIP (525)

GEAR, 3RD WHEEL (2

GEAR, 1ST WHEEL (28T/39T)

WASHER, PLATE (4L0)

CIRCLIP

BEARING

BEARING

BEARING

BEARING

OIL SEAL

SPROCKET, DRIVE(13T)

CIRCLIP (525)
