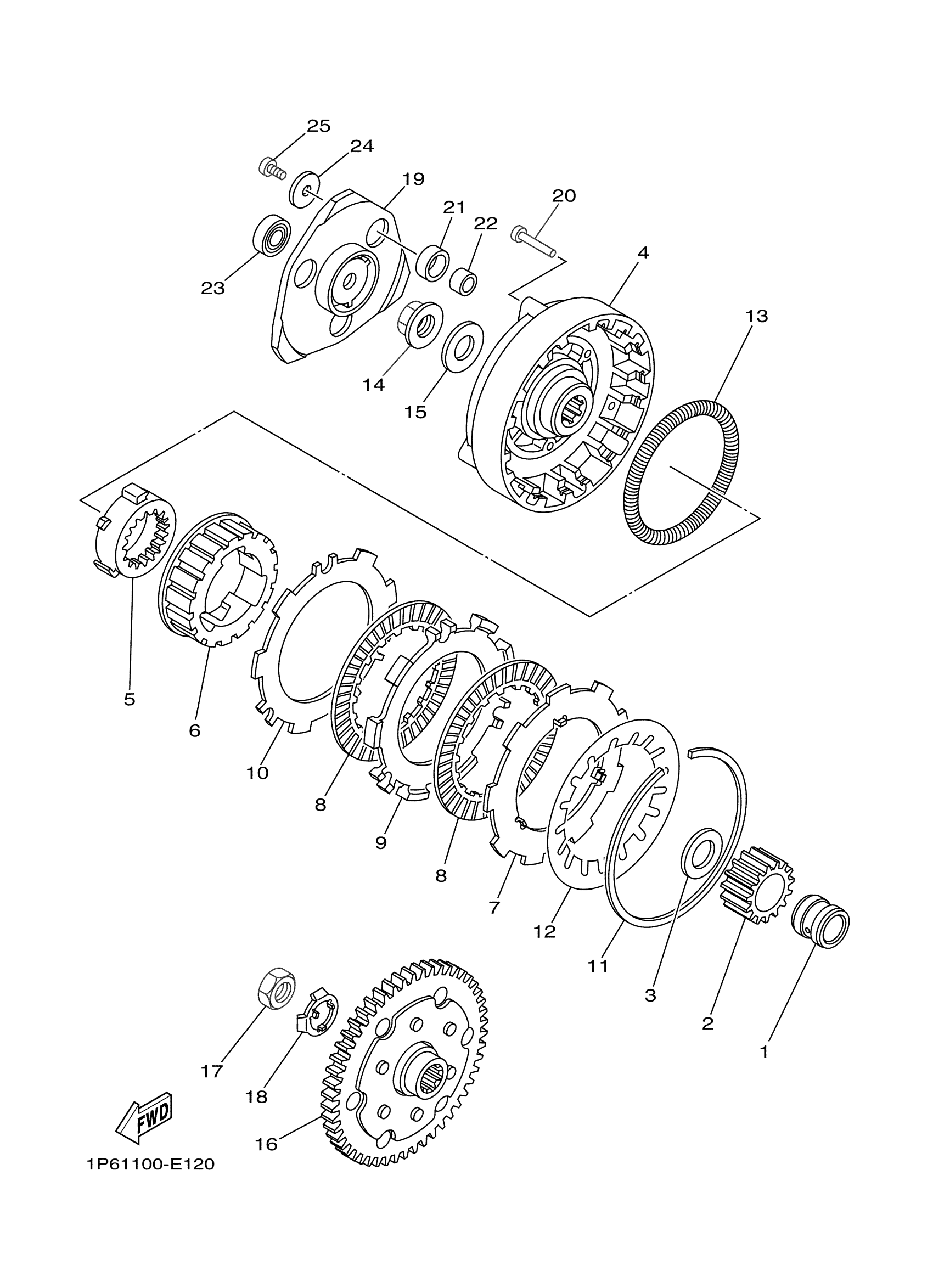

Yamaha TTR50ETC (TTR50E) DP62 2026 CLUTCH Diagram

#

Description
Price

1

COLLAR 1

1P6-E6116-00-00

$17.49

2

GEAR, PRIMARY DRIVE

1P6-E6111-10-00

$73.99

3

WASHER,PLATE

90201-17801-00

$3.50

4

HSG.,CLUTCH

1P6-E6311-00-00

$106.99

5

GEAR,OUTER DRIVE

1P6-E6818-01-00

$170.99

6

BOSS, CLUTCH

1P6-E6571-01-00

Unavailable

7

PLATE,CLUTCH 1

1P6-E6324-00-00

$37.99

8

PLATE,FRICTIONG

1P6-E6330-00-00

$72.99

9

PLATE, CLUTCH 2

1P6-E6325-00-00

$18.49

10

PLATE, CLUTCH 3

1P6-E6326-00-00

$31.99

11

CIRCLIP,CLUTCH

1P6-E6819-00-00

$35.99

12

SPRING,DISK

1P6-E6821-00-00

$62.99

13

SPRING,GARTER

1P6-E6822-10-00

$76.99

14

NUT

90179-14802-00

$4.46

15

WASHER, CONICAL SPRING

90208-14033-00

$3.55

16

PRIMARY DRIVEN GEA

1P6-E6170-10-00

Unavailable

17

NUT,LOCK

1P6-E6377-00-00

Unavailable

18

WASHER, LOCK

1P6-E6378-00-00

Unavailable

19

PLATE, PRESSURE 1

1P6-E6551-00-00

Unavailable

20

PIN,GUIDE

1P6-E6552-00-00

Unavailable

21

BUSH

1P6-E6152-00-00

Unavailable

22

ABSORBER 2

1P6-E6125-00-00

Unavailable

23

BEARING

93306-900Y0-00

Unavailable

24

WASHER,PLATE

90201-05810-00

Unavailable

25

SCREW, PAN HEAD

98512-05012-00

Unavailable
