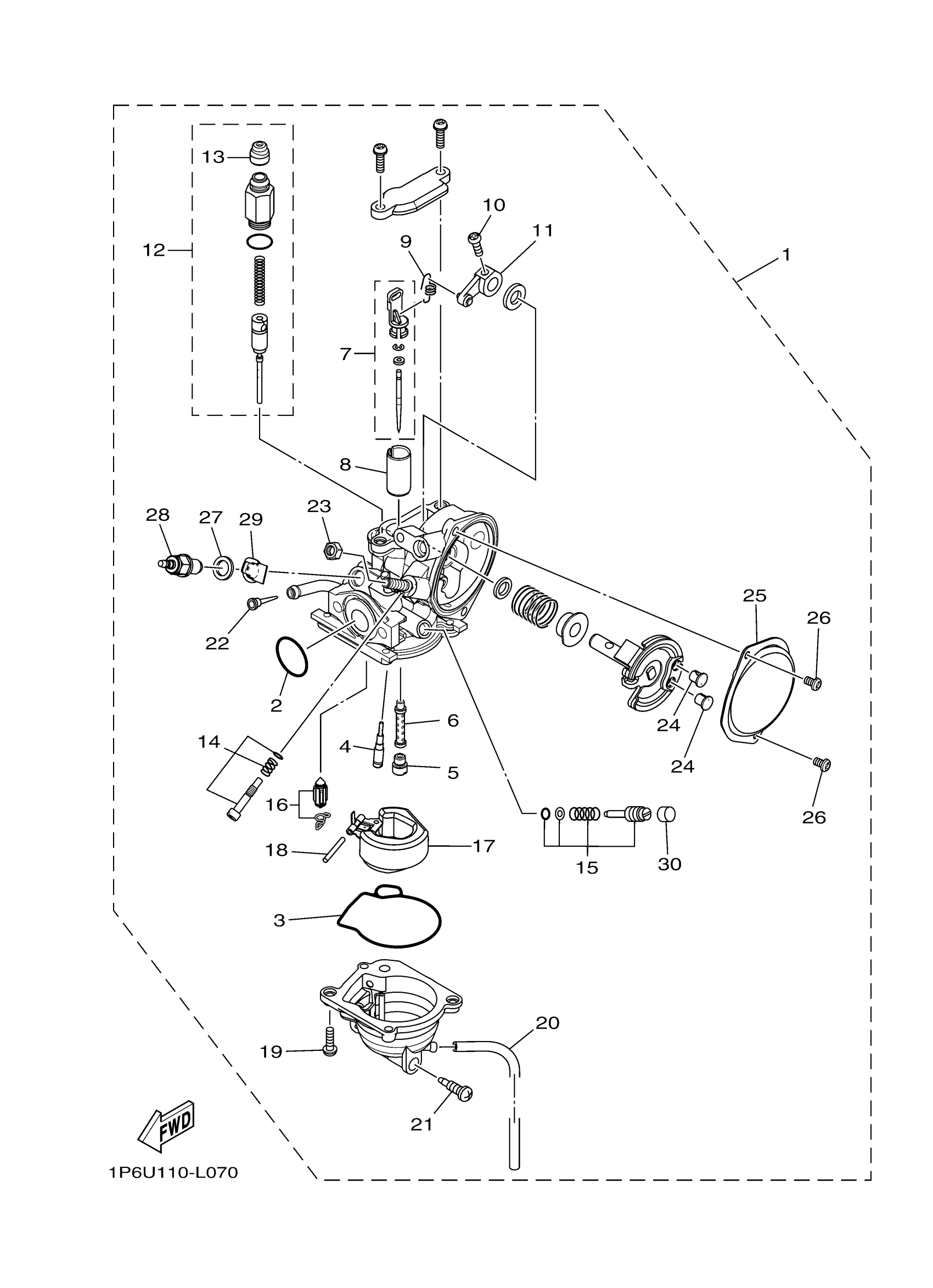

Yamaha TTR50ETC (TTR50E) DP62 2026 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1P6-E4101-21-00

$541.99

2

O-RING 1

68V-8182L-00-00

$15.30

3

O-RING

1P6-14147-00-00

$9.99

4

JET, PILOT (# 12.5)

1P6-14142-12-00

$14.49

5

JET, MAIN (# 62.5)

18A-1414A-63-00

$14.49

6

NOZZLE, MAIN

1P6-14141-12-00

$33.99

7

NEEDLE SET

1P6-1490J-10-00

Unavailable

8

VALVE, THROTTLE 2

1P6-1411F-25-00

Unavailable

9

SPRING

1P6-14935-00-00

Unavailable

10

SCREW

1B2-14216-00-00

$5.49

11

LEVER ASSY

1P6-14905-00-00

Unavailable

12

STARTER SET

1P6-1410A-10-00

$67.99

13

COVER, PLUNGER CAP

22F-14173-00-00

$10.99

14

THROTTLE SCREW SET

1B2-14103-00-00

$68.99

15

AIR SCREW SET

1P6-14104-00-00

$22.99

16

NEEDLE VALVE SET

1P6-14107-20-00

Unavailable

17

FLOAT

1P6-14185-00-00

Unavailable

18

PIN, FLOAT

53L-14186-00-00

Unavailable

19

SCREW,W/WASHER

97607-04114-00

Unavailable

20

PIPE

1P6-14196-00-00

Unavailable

21

PLUG, DRAIN

5LW-14191-00-00

Unavailable

22

NET, FILTER

5LW-14994-00-00

Unavailable

23

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

24

GUIDE, CABLE

1UY-14155-00-00

Unavailable

25

COVER 1

1P6-14293-00-00

Unavailable

26

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

27

WASHER

5CY-14951-00-00

Unavailable

28

HEATER ASSY

5FU-83790-00-00

Unavailable

29

TERMINAL 1

5FU-82103-00-00

Unavailable

30

CAP

3F9-14118-00-00

Unavailable
