Description

Price

1

JOINT, CARBURETOR

1P6-E3586-20-00

$67.99

2

JT

1P6-E3595-00-00

$7.99

3

O-RING(MF1)

93210-223A2-00

$4.29

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

6

BAND

1P6-E3575-01-00

$30.99

7

CASE, AIR CLEANER 1

1P6-E4411-01-00

$43.99

8

CAP,CASE 1

1P6-E4412-00-00

$45.99

9

SEAL

1P6-E4452-00-00

$18.49

10

ELEMENT, AIR CLEANER

1P6-E4451-01-00

$5.49

11

PLATE, ELEMENT

1P6-E4472-00-00

$10.99

12

DUCT

1P6-E4437-00-00

$15.49

13

JOINT, AIR CLEANER 1

1P6-E4453-10-00

$18.49

14

SCREW,PAN HEAD W/WASHER

97602-05225-00

$5.60

15

PIPE,DRAIN

4FP-E443E-00-00

$7.99

16

CLIP

90467-100A1-00

Unavailable

17

BOLT, WITH WASHER

90119-06242-00

Unavailable

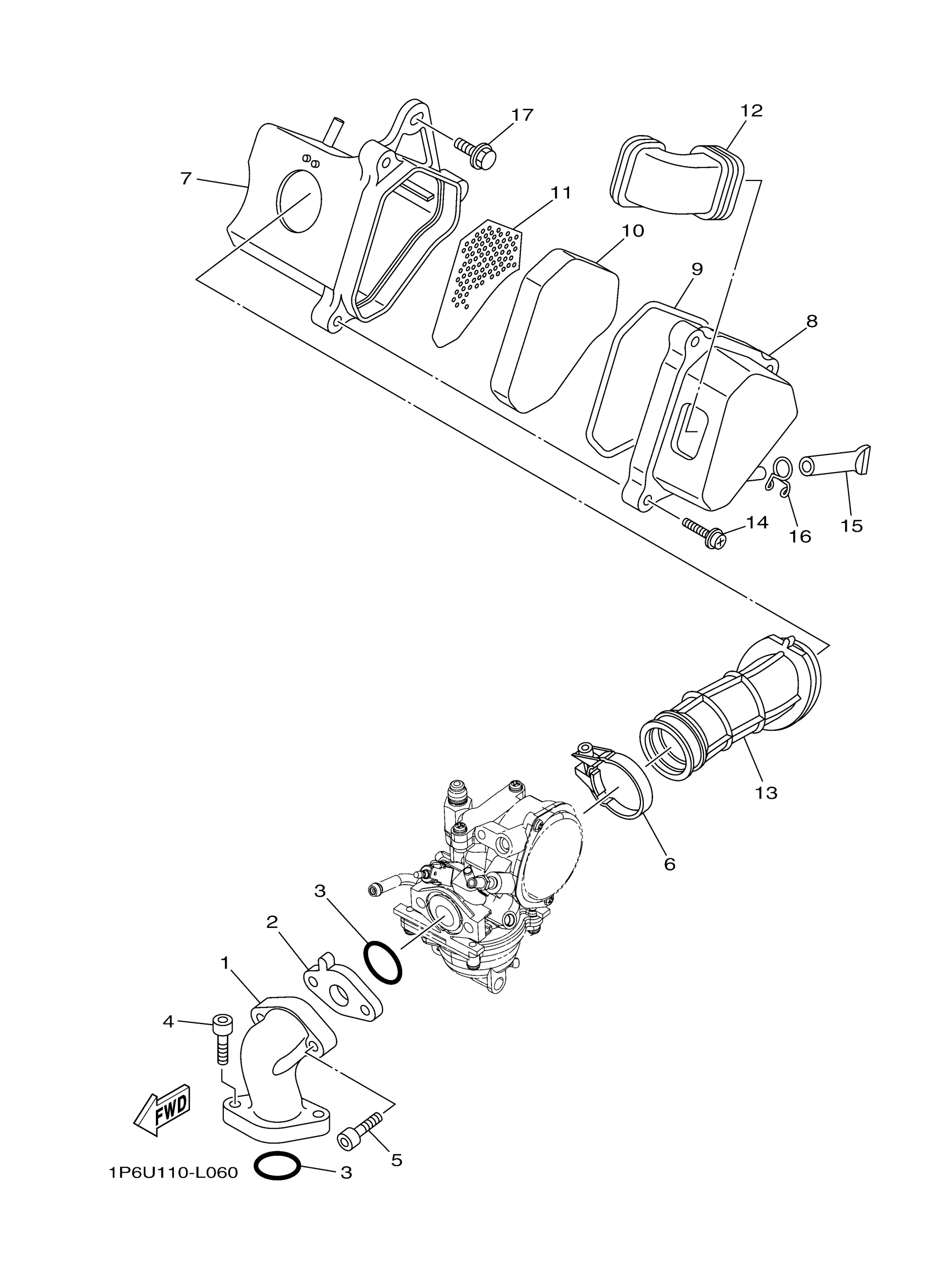

Yamaha TTR50ESC (TTR50E CA) BEGU 2025 INTAKE Diagram

JOINT, CARBURETOR

JT

O-RING(MF1)

BOLT,SOCKET

BOLT, HEXAGON SOCKET HEAD(1VJ)

BAND

CASE, AIR CLEANER 1

CAP,CASE 1

SEAL

ELEMENT, AIR CLEANER

PLATE, ELEMENT

DUCT

JOINT, AIR CLEANER 1

SCREW,PAN HEAD W/WASHER

PIPE,DRAIN

CLIP

BOLT, WITH WASHER
