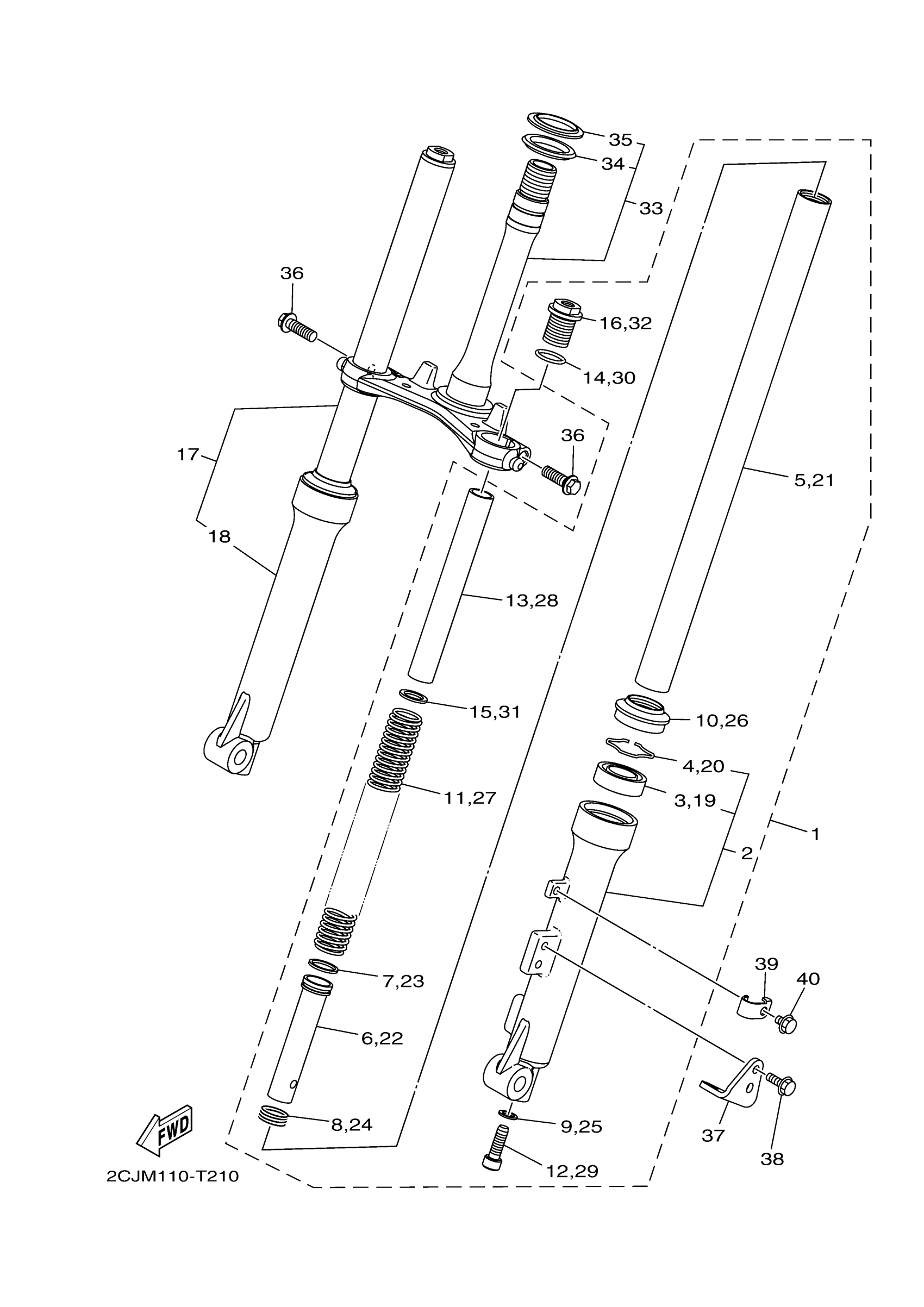

Yamaha TTR50ESC (TTR50E CA) BEGU 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

2CJ-F3102-00-00

$244.99

2

OUTER TUBE COMP.

2CJ-F3106-00-00

Unavailable

3

OIL SEAL

2SA-23145-00-00

$11.99

4

RING, SNAP

5WY-F3153-00-00

$2.29

5

INNER TUBE COMP.1

2CJ-F3110-00-00

Unavailable

6

PISTON, FRONT FORK

2CJ-F3171-00-00

Unavailable

7

RING, PISTON

1FP-F3157-00-00

Unavailable

8

SPRING, REBOUND

49P-F3151-00-00

Unavailable

9

GASKET

2SA-23479-00-00

$4.06

10

SEAL, DUST

2SA-23144-00-00

$7.99

11

SPRING, FRONT FORK

2CJ-F3141-00-00

$29.99

12

BOLT 2

2CJ-F3356-00-00

Unavailable

13

SPACER

2CJ-F3118-00-00

$13.49

14

O-RING

2SA-23147-00-00

$0.83

15

WASHER

2SA-F3427-00-00

Unavailable

16

NUT

2SA-F3357-00-00

Unavailable

17

FRONT FORK ASSY (R.H)

2CJ-F3103-00-00

Unavailable

18

OUTER TUBE COMP.

2CJ-F3107-00-00

Unavailable

19

OIL SEAL

2SA-23145-00-00

$11.99

20

RING, SNAP

5WY-F3153-00-00

$2.29

21

INNER TUBE COMP.1

2CJ-F3110-00-00

Unavailable

22

PISTON, FRONT FORK

2CJ-F3171-00-00

Unavailable

23

RING, PISTON

1FP-F3157-00-00

Unavailable

24

SPRING, REBOUND

49P-F3151-00-00

Unavailable

25

GASKET

2SA-23479-00-00

$4.06

26

SEAL, DUST

2SA-23144-00-00

$7.99

27

SPRING, FRONT FORK

2CJ-F3141-00-00

$29.99

28

SPACER

2CJ-F3118-00-00

$13.49

29

BOLT 2

2CJ-F3356-00-00

Unavailable

30

O-RING

2SA-23147-00-00

$0.83

31

WASHER

2SA-F3427-00-00

Unavailable

32

NUT

2SA-F3357-00-00

Unavailable

33

UNDER BRACKET COMP.

2CJ-F3340-00-00

Unavailable

34

SEAL, DUST

4GU-F3462-00-00

Unavailable

35

RACE,BALL 1

4FP-F3411-10-00

Unavailable

36

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

37

HOLDER

2CJ-F3857-00-00

Unavailable

38

BOLT, FLANGE

95022-06014-00

Unavailable

39

HOLDER 2

2CJ-F3867-00-00

Unavailable

40

BOLT, FLANGE

95022-06008-00

Unavailable
