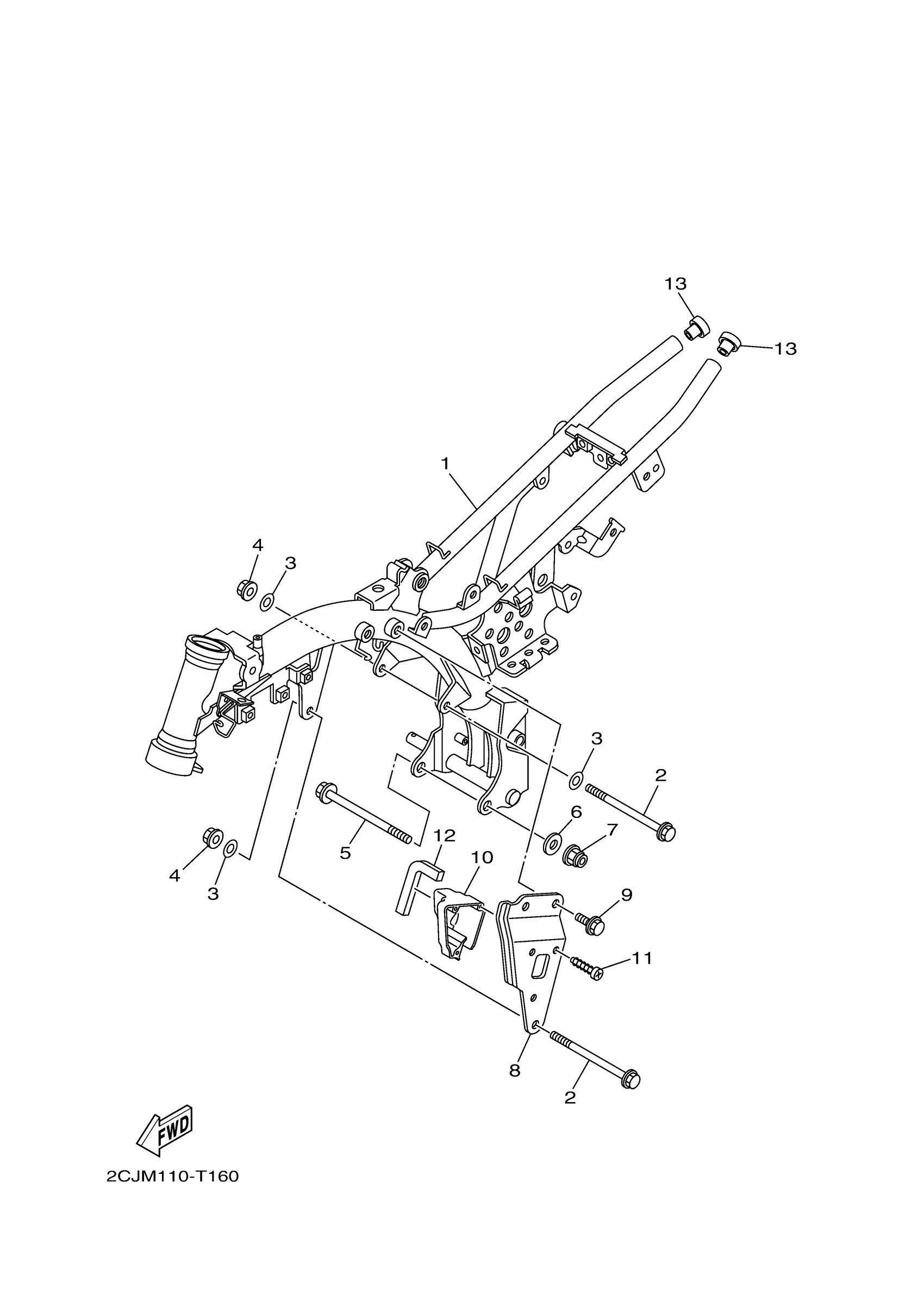

Yamaha TTR50ESC (TTR50E CA) BEGU 2025 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2CJ-F1110-00-00

Unavailable

2

BOLT, FLANGE

90105-08097-00

$3.89

3

WASHER(6TC)

92907-08200-00

$5.76

4

NUT, SELF-LOCKING

95602-08200-00

$2.73

5

BOLT, FLANGE

90105-10123-00

$4.79

6

WASHER, PLAIN(3BM)

92907-10200-00

$3.34

7

NUT, S/L FLANGE

95602-10200-00

$2.14

8

STAY, ENGINE 7

1P6-F1387-10-00

Unavailable

9

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

10

COVER

1P6-F117F-10-00

$6.79

11

SCREW, PAN TAP.2

97707-50516-00

$0.50

12

DAMPER, PLATE

90520-20807-00

Unavailable

13

PLUG

90338-16802-00

$2.80
