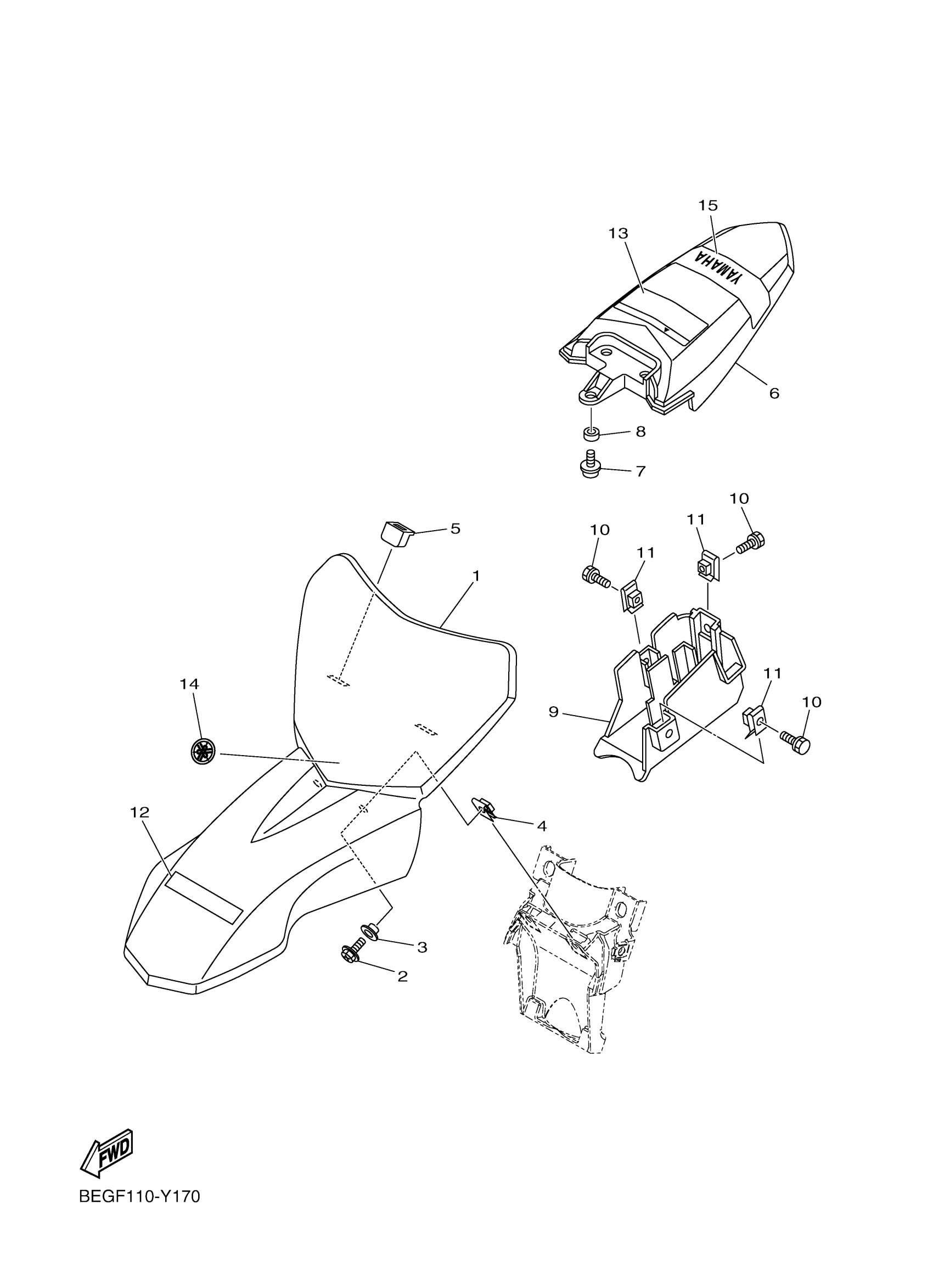

Yamaha TTR50ESC (TTR50E CA) BEGU 2025 FENDER Diagram

#

Description
Price

1

FENDER

1P6-F1511-00-00

$47.41

2

BOLT, FLANGE

95022-06014-00

$2.46

3

COLLAR

90387-07818-00

$5.81

4

NUT, SPRING (26H)

90183-06023-00

$6.94

5

GROMMET

90480-16185-00

$6.22

6

FENDER

1P6-F1611-00-00

$40.00

7

SCREW, WITH WASHER(3YJ)

90159-06182-00

$5.98

8

COLLAR

90387-07808-00

$5.86

9

BOX

1P6-F160E-01-00

$19.30

10

BOLT,HEX.HEADW/WASHER

97502-06514-00

$2.44

11

NUT, SPRING (26H)

90183-06023-00

$6.94

12

LABEL 1

1P6-F151A-40-00

$4.87

13

LABEL, CAUTION

3PT-2118K-A2-00

$4.40

14

TUNING FORK MARK

B0L-F175C-00-00

$3.02

15

EMBLEM 1

1P6-F163G-30-00

$12.35
