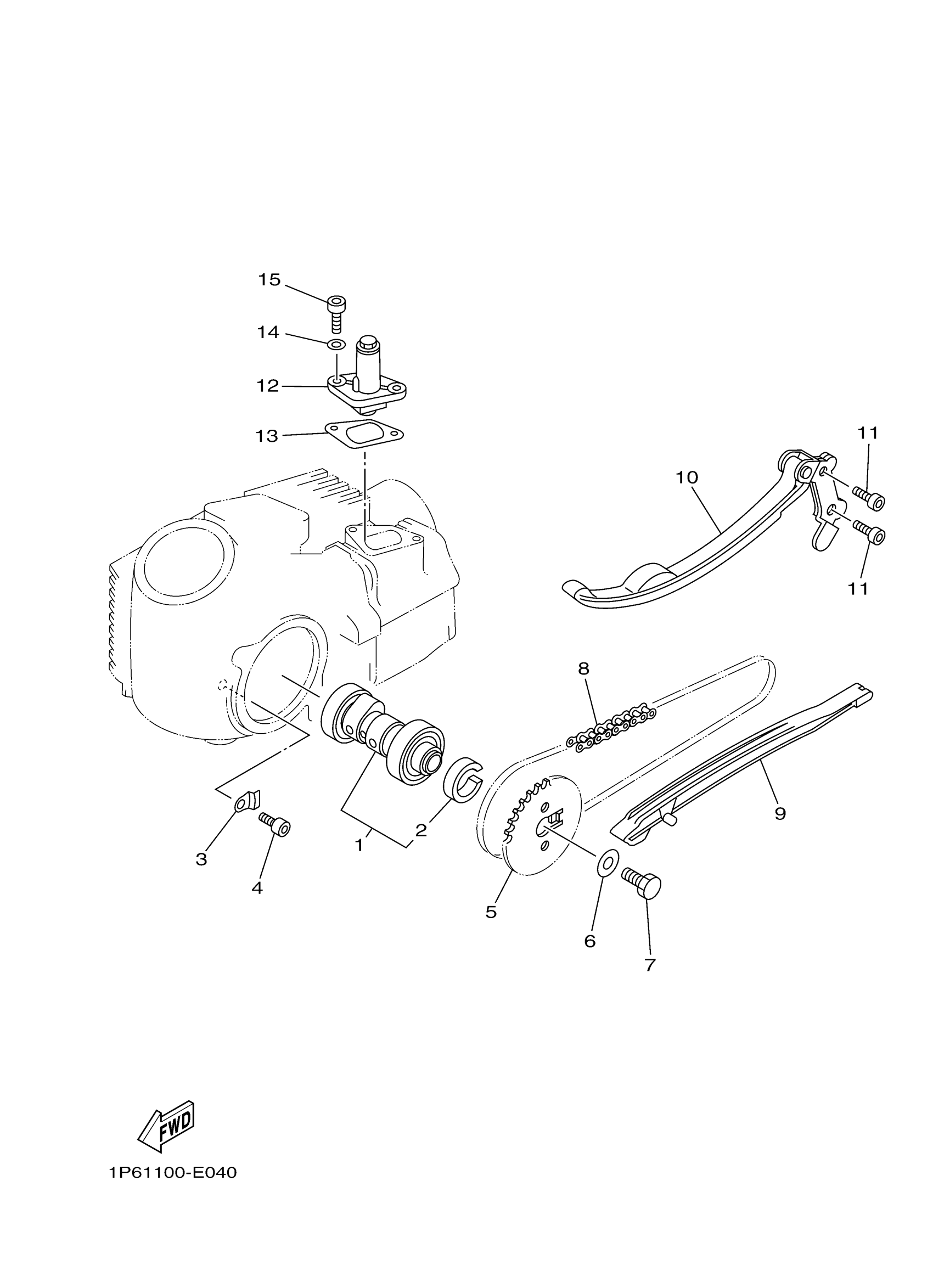

Yamaha TTR50ESC (TTR50E CA) BEGU 2025 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAM SHAFT ASSY.

1P6-E2170-00-00

Unavailable

2

COLLAR(50M)

90387-167L5-00

Unavailable

3

PLATE

1P6-E111F-00-00

$3.20

4

BOLT,HEXAGON SOCKET HEAD

90110-06829-00

Unavailable

5

SPROCKET

1P6-E2176-00-00

$14.75

6

WASHER, PLATE

90201-08048-00

$5.37

7

BOLT

90101-08055-00

$5.17

8

CHAIN

94591-51084-00

$16.91

9

GUIDE, STOPPER 1

1P6-E2231-00-00

$19.47

10

GUIDE, STOPPER 2

1P6-E2241-00-00

$34.12

11

BOLT(3MA)

91312-06016-00

$4.57

12

TENSIONER ASSY, CAM CHAIN

4GL-12210-00-00

$74.63

13

GASKET, TENSIONER C

5VL-E2213-10-00

$2.37

14

GASKET 256113960000

90430-06014-00

Unavailable

15

BOLT(3MA)

91312-06016-00

$4.57
