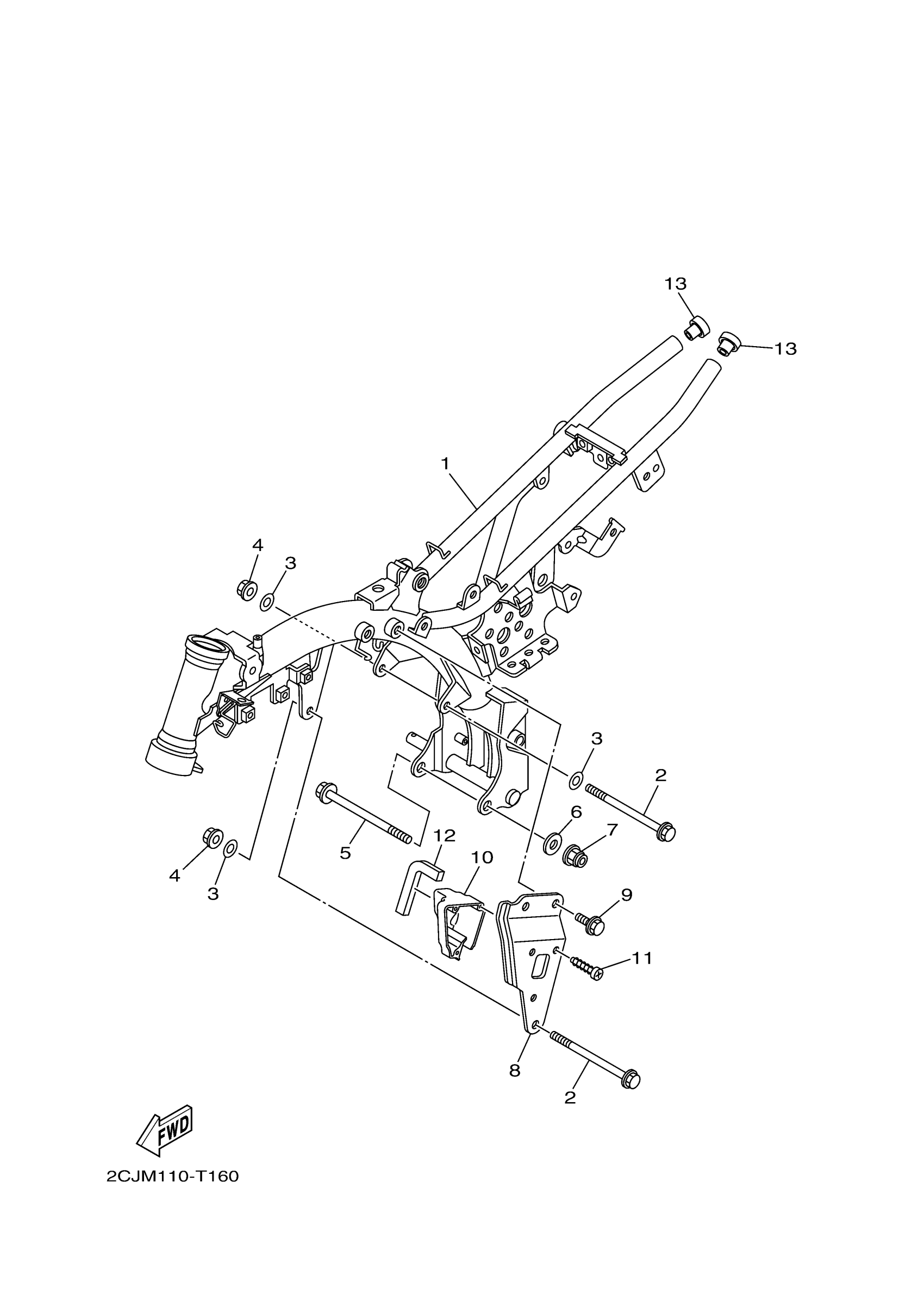

Yamaha TTR50ERC (TTR50E CA) BEGM 2024 FRAME Diagram

#

Description
Price

1

FRAME COMP.

2CJ-F1110-00-00

Unavailable

2

BOLT, FLANGE

90105-08097-00

$4.67

3

WASHER(6TC)

92907-08200-00

$8.49

4

NUT, SELF-LOCKING

95602-08200-00

$3.20

5

BOLT, FLANGE

90105-10123-00

$5.60

6

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

7

NUT, S/L FLANGE

95602-10200-00

$4.82

8

STAY, ENGINE 7

1P6-F1387-10-00

Unavailable

9

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

10

COVER

1P6-F117F-10-00

Unavailable

11

SCREW, PAN TAP.2

97707-50516-00

$0.80

12

DAMPER, PLATE

90520-20807-00

Unavailable

13

PLUG

90338-16802-00

$3.28
