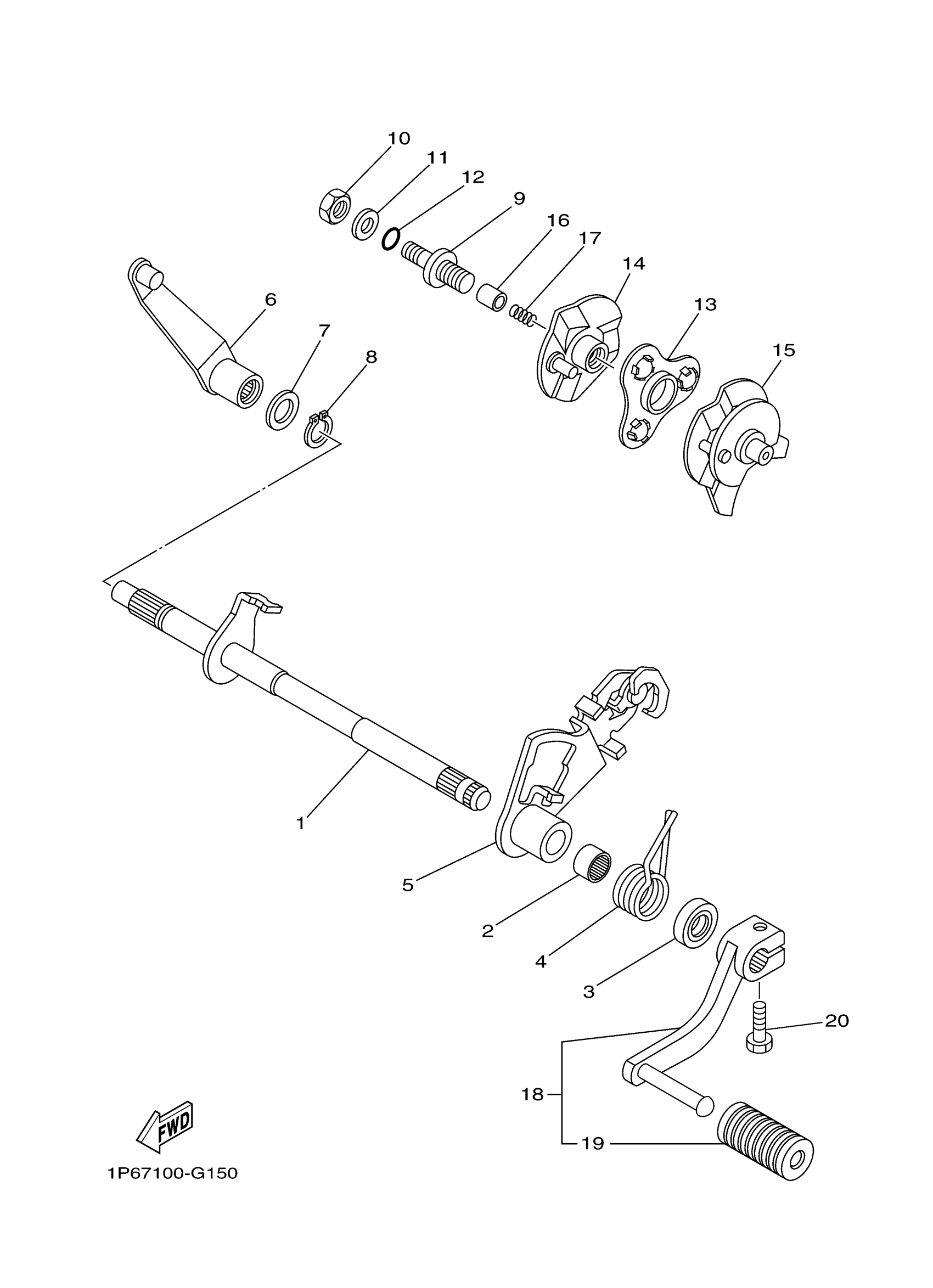

Yamaha TTR50EPC (TTR50E CA) BEGF 2023 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFTSHAFTASSY

1P6-E8101-11-00

$56.99

2

BEARING

93317-11287-00

$23.99

3

SEAL, OIL (30X)

93102-12321-00

$12.49

4

SPRING, TORSION

90508-29007-00

$11.49

5

SHIFT LEVER ASSY

1P6-18120-00-00

Unavailable

6

ARM, SHIFT 3

1P6-1817A-00-00

Unavailable

7

WASHER PLATE 164185720000

90201-12166-00

$9.49

8

CIRCLIP(10Y)

99009-12400-00

$3.59

9

SCREW, ADJUSTING

1P6-E8186-01-00

Unavailable

10

NUT

90170-08803-00

$2.17

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

O-RING

93210-08003-00

$9.49

13

HOLDER, PAWL

1P6-18181-00-00

Unavailable

14

SHIFT GUIDE COMP.

1P6-18104-00-00

Unavailable

15

GUIDE SHIFT COMP. 2

1P6-18106-00-00

Unavailable

16

PIN, PAWL

1P6-E8184-00-00

Unavailable

17

SPRING

1P6-E8183-00-00

Unavailable

18

SHIFT PEDAL ASSY

1P6-E8110-10-00

Unavailable

18

SHIFT PEDAL ASSY

1P6-E8110-10-00

Unavailable

19

COVER,SHIFT PEDAL

1KL-E8113-00-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable
