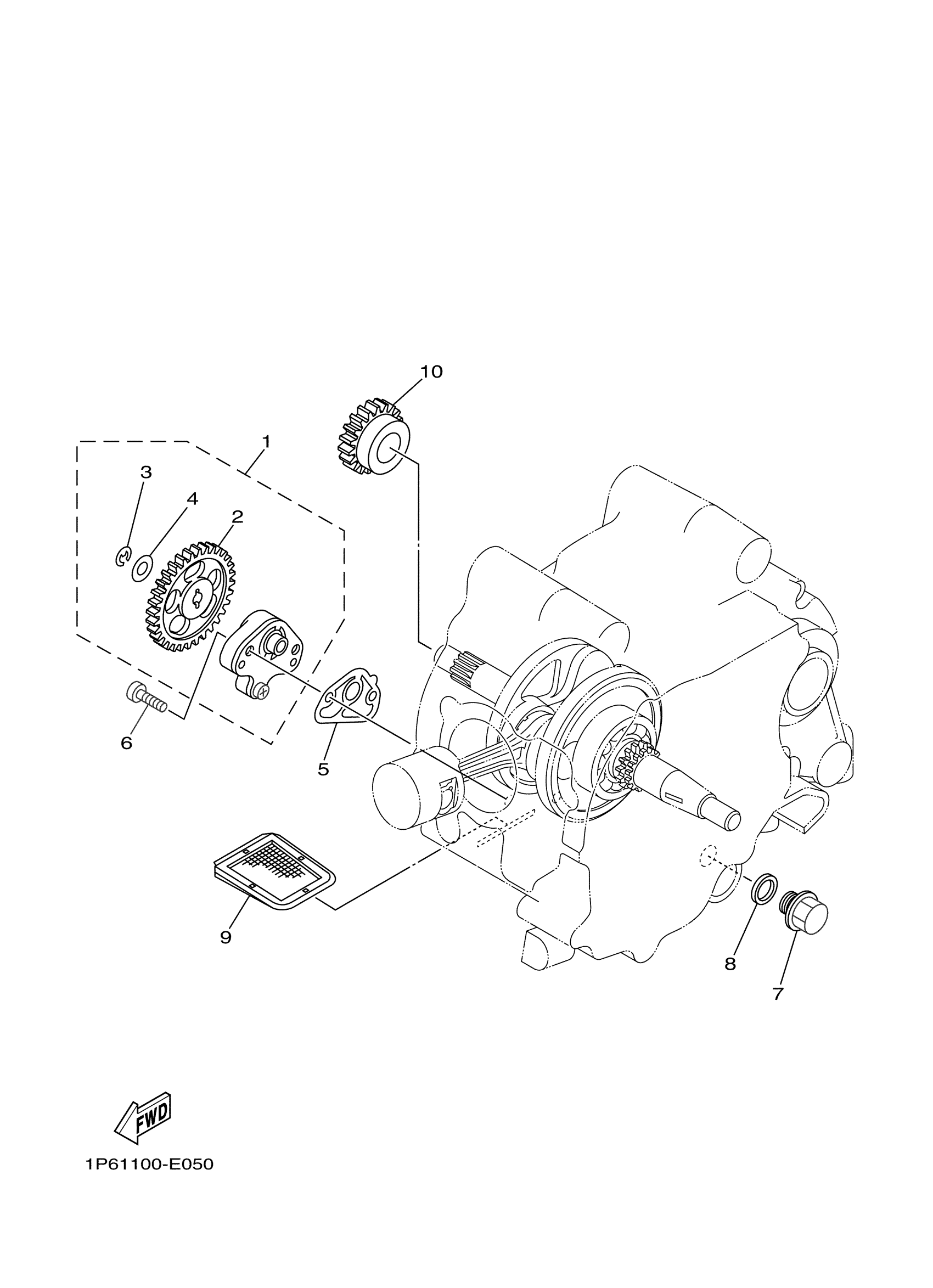

Yamaha TTR50EPC (TTR50E CA) BEGF 2023 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

1P6-E3300-11-00

$61.22

2

GEAR,DRIVEN

1P6-E3325-10-00

$8.06

3

CIRCLIP

93430-05823-00

Unavailable

4

WASHER,PLATE

90201-07803-00

$1.73

5

GASKET, PUMP COVER

5VL-E3329-00-00

$3.18

6

SCREW,FLAT FILLISTER

90155-06801-00

Unavailable

7

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.63

8

GASKET (3JD1)

90430-12207-00

$6.32

9

STRAINER,OIL

1P6-E3411-00-00

$12.93

10

GEAR, PUMP DRIVE

1P6-E3324-10-00

Unavailable
