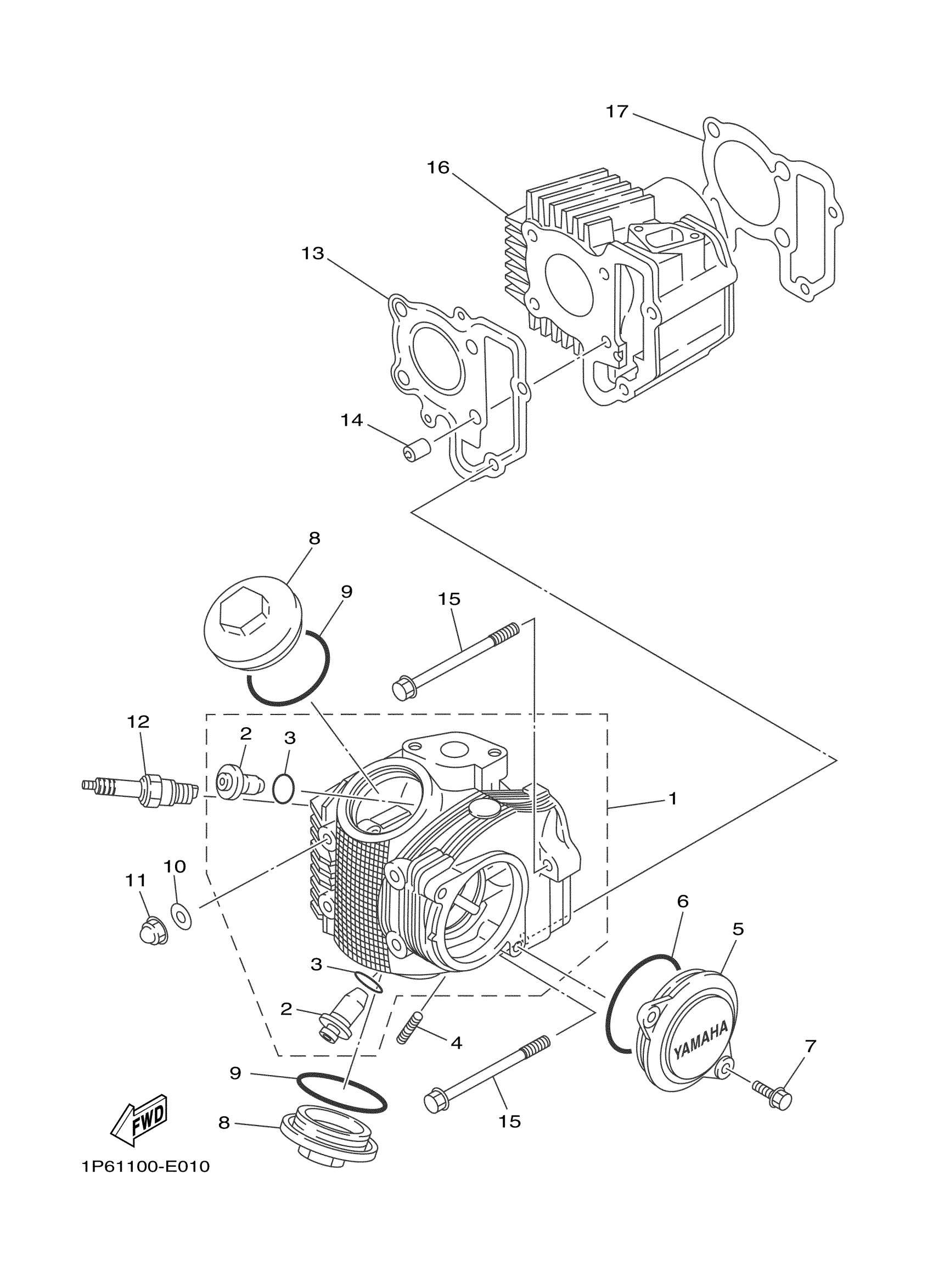

Yamaha TTR50EPC (TTR50E CA) BEGF 2023 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

1P6-W1102-01-00

$466.99

GUIDE, EXHAUST VALVE

4GL-11134-10-00

$154.99

O-RING (4A0)

93210-09418-00

Unavailable

BOLT

1P6-14651-00-00

$6.99

COVER, CYLINDER HEADSIDE 3

1P6-E1185-00-00

Unavailable

O-RING (22F)

93210-63556-00

$5.60

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

O-RING(55X)

93210-44704-00

$7.49

WASHER, PLATE

90201-080L7-00

$4.82

NUT, CROWN (4G0)

90176-08026-00

$14.99

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

Unavailable

GASKET, CYLINDER HEAD1

1P6-E1181-00-00

$25.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE(4NM)

95027-06085-00

$9.49

BODY,CYLINDER 1

1P6-E1311-10-00

Unavailable

CASKET, CYLINDER1

1P6-E1351-00-00

Unavailable
