Description

Price

1

AXLE, MAIN

1P6-E7411-01-00

$74.99

2

GEAR, 3RD PINION

1P6-E7131-20-00

$69.99

3

WASHER

1P6-E7648-00-00

$5.49

4

CLIP, GEAR HOLD 1

1P6-E7217-00-00

$4.21

5

GEAR, 2ND PINION

1P6-E7121-20-00

Unavailable

6

BEARING

93306-253YJ-00

$31.99

7

BEARING

93306-001X3-00

Unavailable

8

AXLE, DRIVE

1P6-E7421-01-00

$121.99

9

GEAR, 2ND WHEEL

1P6-E7221-30-00

$89.99

10

WASHER(59V)

90209-17285-00

$9.49

11

CIRCLIP (525)

93410-20038-00

$3.76

12

GEAR, 3RD WHEEL

1P6-E7231-20-00

Unavailable

13

GEAR, 1ST WHEEL

1P6-E7211-20-00

$90.99

14

WASHER, PLATE (4L0)

90201-154E8-00

$8.49

15

CIRCLIP

93440-15012-00

$8.49

16

BEARING

93306-252Y6-00

Unavailable

17

BEARING

93306-204YD-00

Unavailable

18

OIL SEAL

93102-20802-00

Unavailable

19

SPROCKET, DRIVE(13T)

93812-13812-00

Unavailable

20

CIRCLIP (525)

93410-20038-00

$3.76

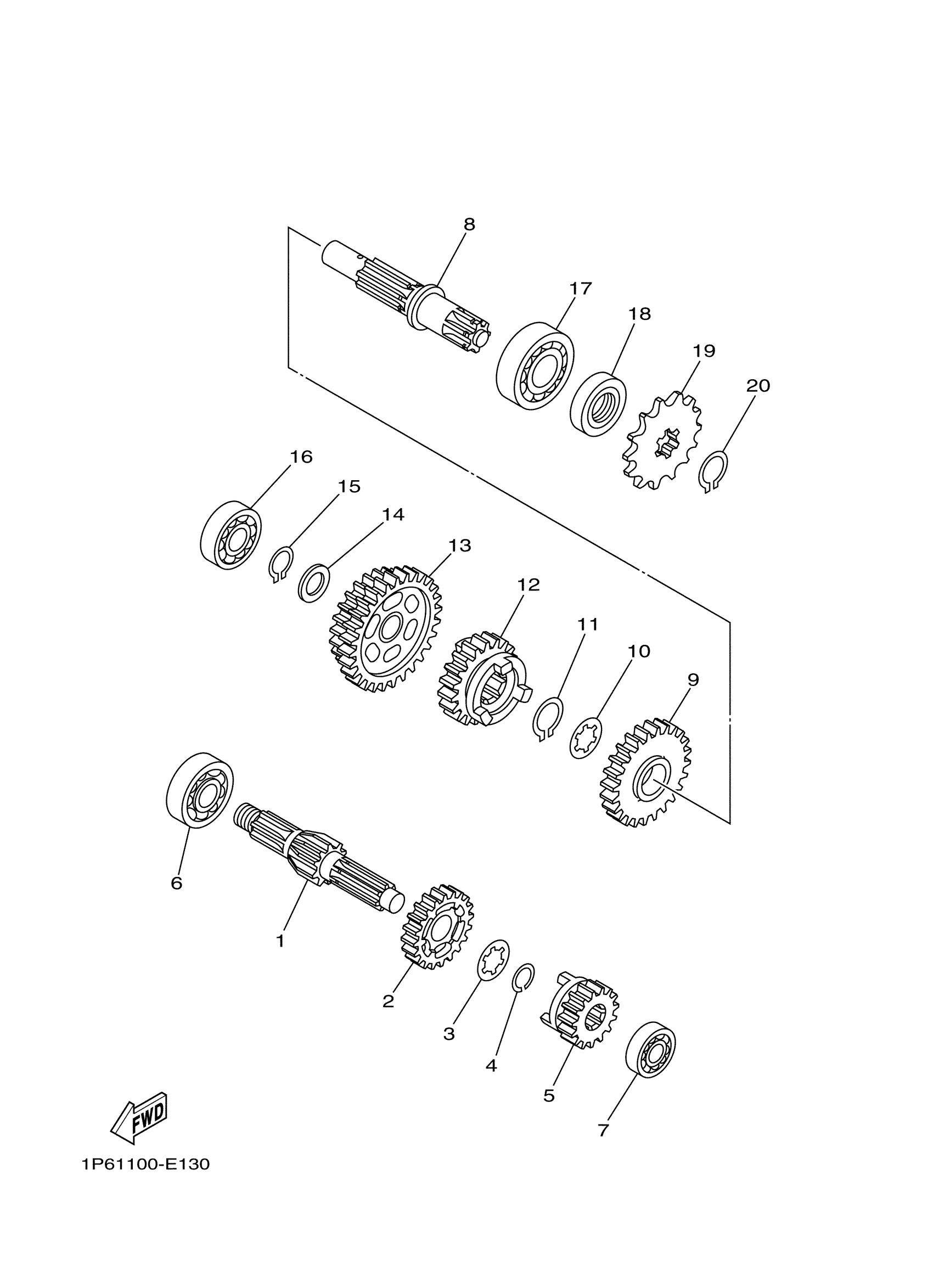

Yamaha TTR50ENC (TTR50E CA) BEGD 2022 TRANSMISSION Diagram

AXLE, MAIN

GEAR, 3RD PINION

WASHER

CLIP, GEAR HOLD 1

GEAR, 2ND PINION

BEARING

BEARING

AXLE, DRIVE

GEAR, 2ND WHEEL

WASHER(59V)

CIRCLIP (525)

GEAR, 3RD WHEEL

GEAR, 1ST WHEEL

WASHER, PLATE (4L0)

CIRCLIP

BEARING

BEARING

OIL SEAL

SPROCKET, DRIVE(13T)

CIRCLIP (525)
