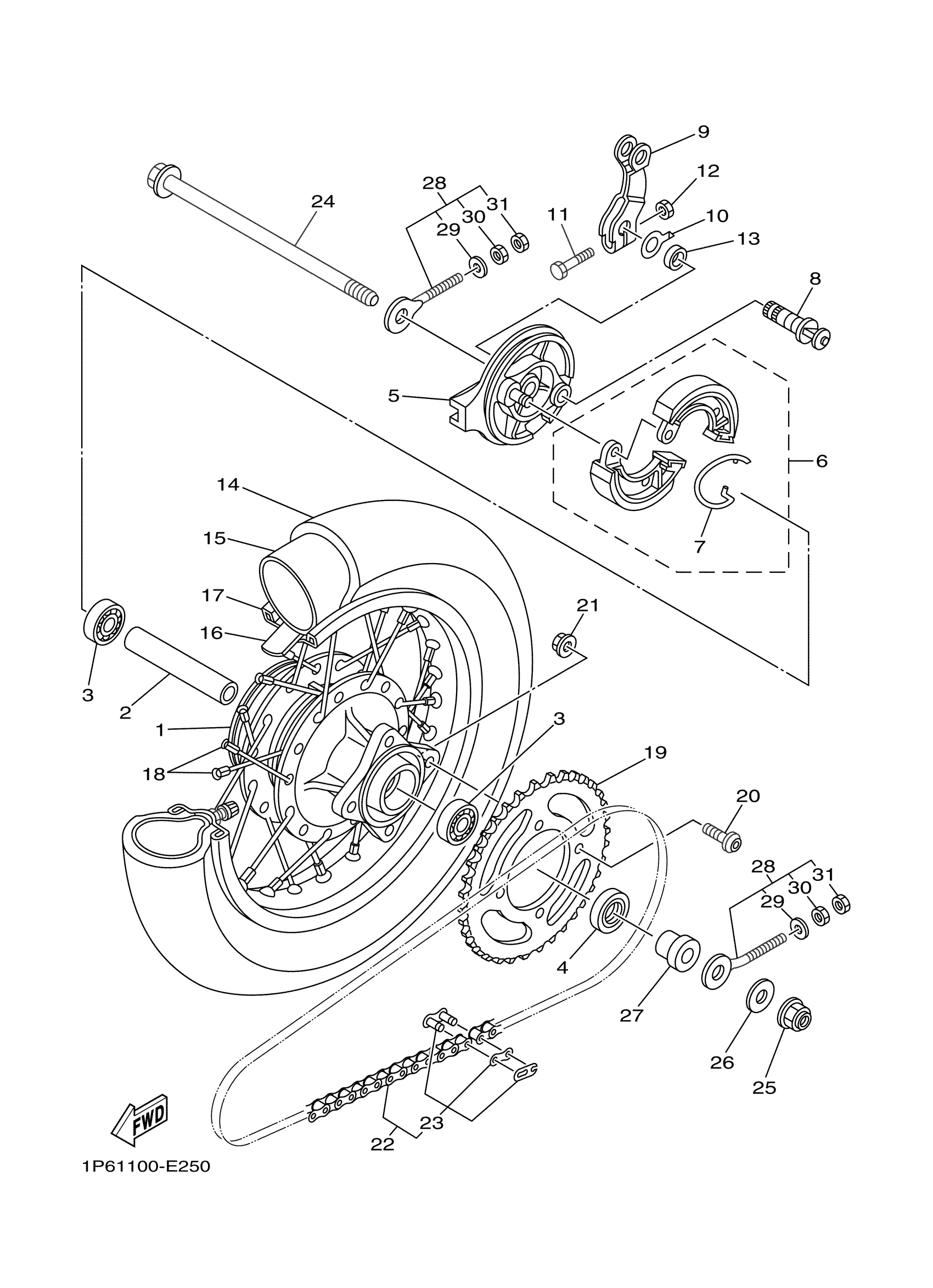

Yamaha TTR50ENC (TTR50E CA) BEGD 2022 REAR WHEEL Diagram

#

Description
Price

1

HUB

1P6-F5311-00-00

$261.99

2

COLLAR

90387-12832-00

$17.99

3

BEARING

93306-201X1-00

$33.99

4

OIL SEAL

93106-20811-00

$5.60

5

PLATE,BRAKE SHOE

1P6-F5121-00-00

$77.99

6

BRAKE SHOE KIT

1P6-W253A-00-00

$24.99

7

SPRING, RETURN

1P6-25133-00-00

Unavailable

8

CAMSHAFT

1P6-F5151-01-00

$29.99

9

LEVER, CAMSHAFT 1

1P6-F5155-01-00

$19.49

10

PLATE, INDICATOR

1P6-F533A-01-00

$6.99

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT(6TA)

95317-06600-00

$3.55

13

OIL SEAL

93104-12003-00

$8.49

14

TIRE (2.50-10 C183A 4PR TT)

94125-10801-00

Unavailable

15

TUBE (2.50-10)(3LL)

94225-10270-00

$28.99

16

BAND, RIM

94325-10800-00

Unavailable

17

RIM

94414-10800-00

Unavailable

18

SPOKE SET, FRONT

1P6-F5104-01-00

Unavailable

19

SPROCKET, RR.WHEEL

1P6-F5437-20-00

Unavailable

20

BOLT

90111-08024-00

Unavailable

21

NUT, SELF-LOCKING

95602-08200-00

Unavailable

22

CHAIN

94568-A1080-00

Unavailable

23

JOINT, CHAIN

94668-A1001-00

Unavailable

24

AXLE, WHEEL

1P6-F5381-01-00

Unavailable

25

NUT, SELF-LOCKING

95602-12200-00

Unavailable

26

WASHER, PLATE

90201-128F3-00

Unavailable

27

COLLAR

90387-12834-00

Unavailable

28

PULLER, CHAIN

1P6-F538G-11-00

Unavailable

29

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

30

NUT,HEX

90170-06809-00

Unavailable

31

NUT(6TA)

95317-06600-00

$3.55
