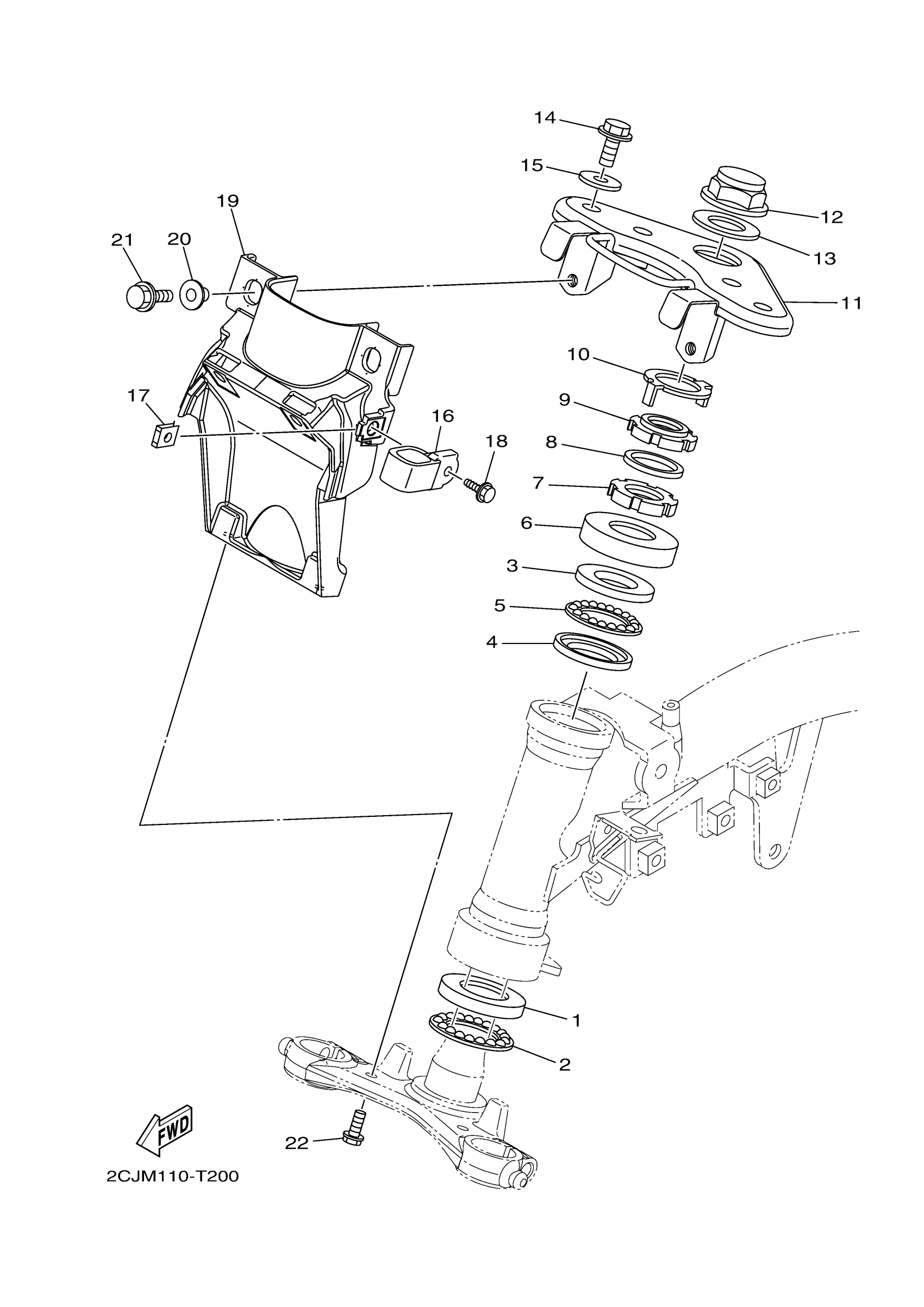

Yamaha TTR50EM (TTR50E) BEG5 2021 STEERING Diagram

#

Description
Price

1

RACE, BALL 2

B6E-23412-00-00

$13.49

2

RETAINER, BALL BEARING

5VL-F341E-00-00

Unavailable

3

RACE, BALL 1

BP2-23411-00-00

$11.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

RETAINER, BALL BEARING

1P6-F341E-00-00

Unavailable

6

COVER, BALL RACE 2

1P6-F3416-00-00

Unavailable

7

NUT

90179-25004-00

$24.99

8

WASHER, PLATE (26H)

90202-26142-00

$9.49

9

NUT

90179-22801-00

$12.49

10

WASHER, SPECIAL

1P6-F3418-01-00

$2.81

11

HANDLE CROWN COMP.

2CJ-F3430-00-00

$40.99

12

SCREW,FLAT HEAD

90176-22801-00

Unavailable

13

WASHER, FELT

5VL-F3165-01-00

$4.78

14

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

15

WASHER, PLATE(8BV)

90201-100S7-00

$11.49

16

HOLDER

1P6-F3857-00-00

Unavailable

17

NUT, SPRING(1YT)

90183-05042-00

Unavailable

18

SCREW, TAPPING

90163-05805-00

Unavailable

19

STAY, FENDER 1

2CJ-F1513-00-00

Unavailable

20

COLLAR

90387-07818-00

Unavailable

21

BOLT, FLANGE

90105-06842-00

Unavailable

22

BOLT, FLANGE

95022-06014-00

Unavailable
