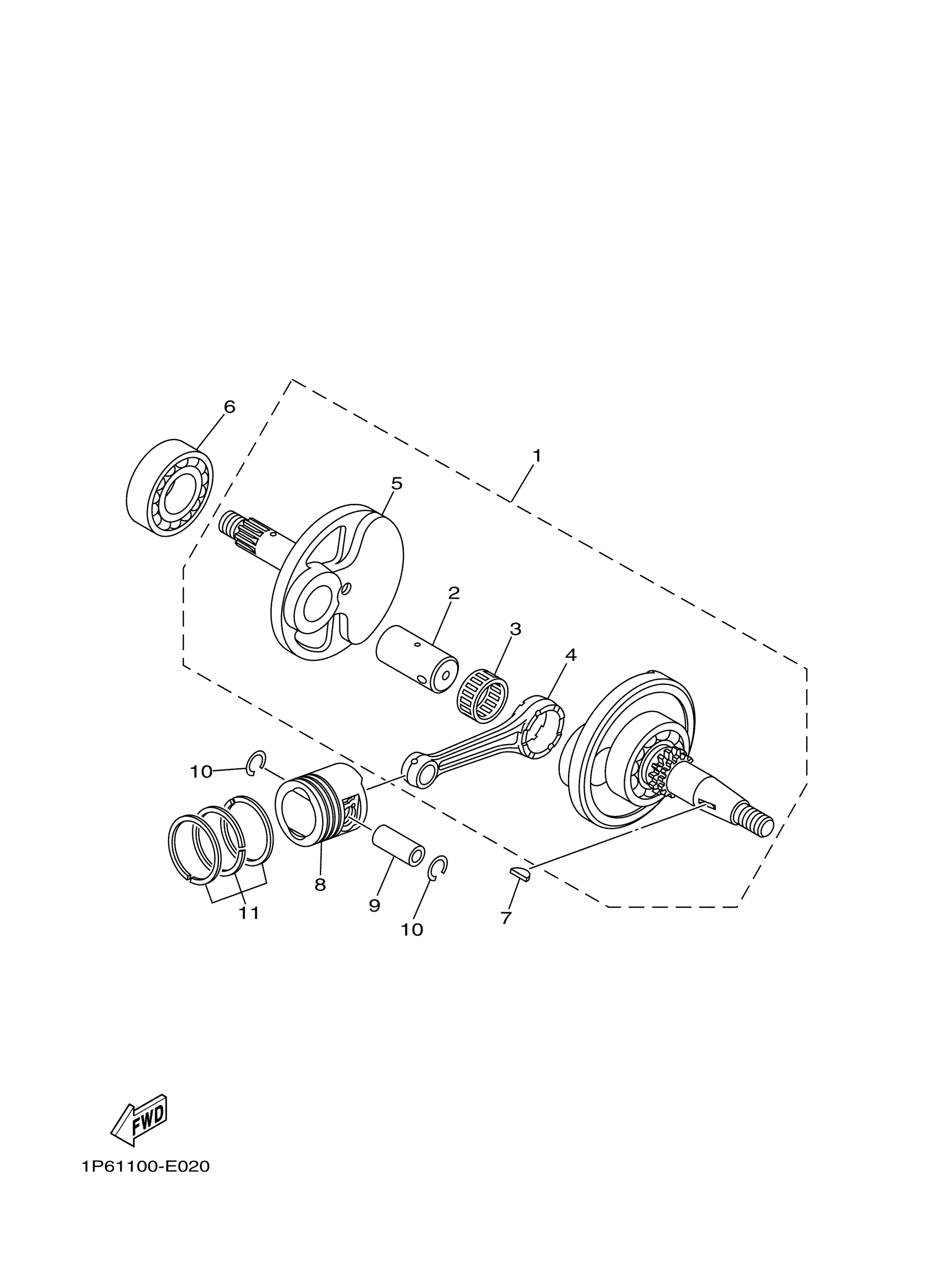

Yamaha TTR50EG (TTR50E) 2CJD 2016 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY

1P6-W1140-10-00

$411.99

PIN, CRANK1

1P6-E1681-00-00

Unavailable

BEARING

93310-3230E-00

Unavailable

ROD, CONNECTING 1

1P6-E1651-00-00

$76.99

. CRANK 2

1P6-E1422-00-00

Unavailable

BEARING

93306-205YP-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

PISTON (STD)

1P6-E1631-01-00

$36.99

PISTON (0.50MM O/S)

5DV-11636-10-00

$116.99

PISTON (1.00MM O/S)

5DV-11638-10-00

$136.99

PIN, PISTON

5DV-11633-00-00

$15.49

CLIP, PISTON PIN

1P6-E1634-00-00

$6.99

PISTON RING SET (S

1P6-Y1161-10-00

$82.99

PISTON RING SET (0

1P6-E1605-10-00

$56.99

PISTON RING SET (1.00MM O/S)

1P6-E1607-10-00

$59.99
