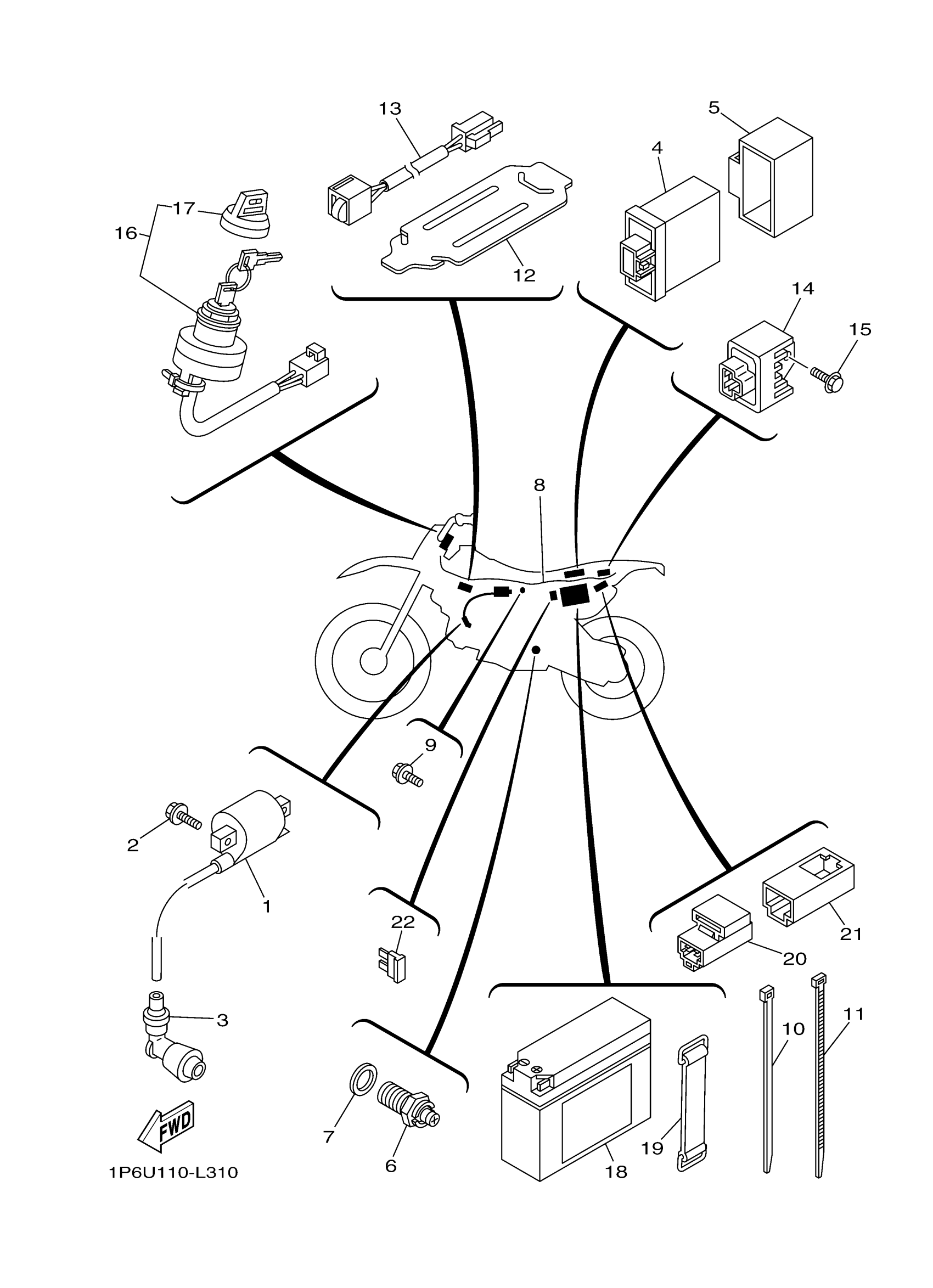

Yamaha TTR50ED (TTR50E) 2CJ1 2013 ELECTRICAL 1 Diagram

#

Description
Price

1

IGN.COIL ASSY.

1P6-H2310-00-00

$88.99

2

BOLT, FLANGE

95022-06020-00

$3.62

3

PLUG CAP ASSY

4BP-82370-01-00

$35.99

4

CDI.UNIT ASSY.

1P6-H5540-00-00

Unavailable

5

BAND

1P6-H5546-00-00

$7.99

6

NEUTRAL SWITCH ASS

5VL-H2540-11-00

$33.99

7

GASKET

90430-10188-00

$6.99

8

WIRE HARNESS ASSY

1P6-H2590-12-00

$227.99

9

BOLT,HEX.HEADW/WASHER

97502-06514-00

$3.28

10

GROMMET

90464-35803-00

Unavailable

11

CLAMP

90464-20818-00

Unavailable

12

COVER

12B-H252U-00-00

Unavailable

13

THERMO SWITCH ASSY

5FU-82560-30-00

$86.99

14

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

$200.99

15

BOLT,HEX.HEADW/WASHER

97502-06514-00

$3.28

16

MAIN SWITCH ASSY

1P6-H2510-13-00

Unavailable

17

KEY,CAP

1P6-H2579-00-00

Unavailable

18

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

Unavailable

19

BAND,BATTERY

1P6-H2131-00-00

Unavailable

20

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

21

COVER

1P6-H252U-00-00

Unavailable

22

FUSE (10A)

42X-82151-00-00

Unavailable
