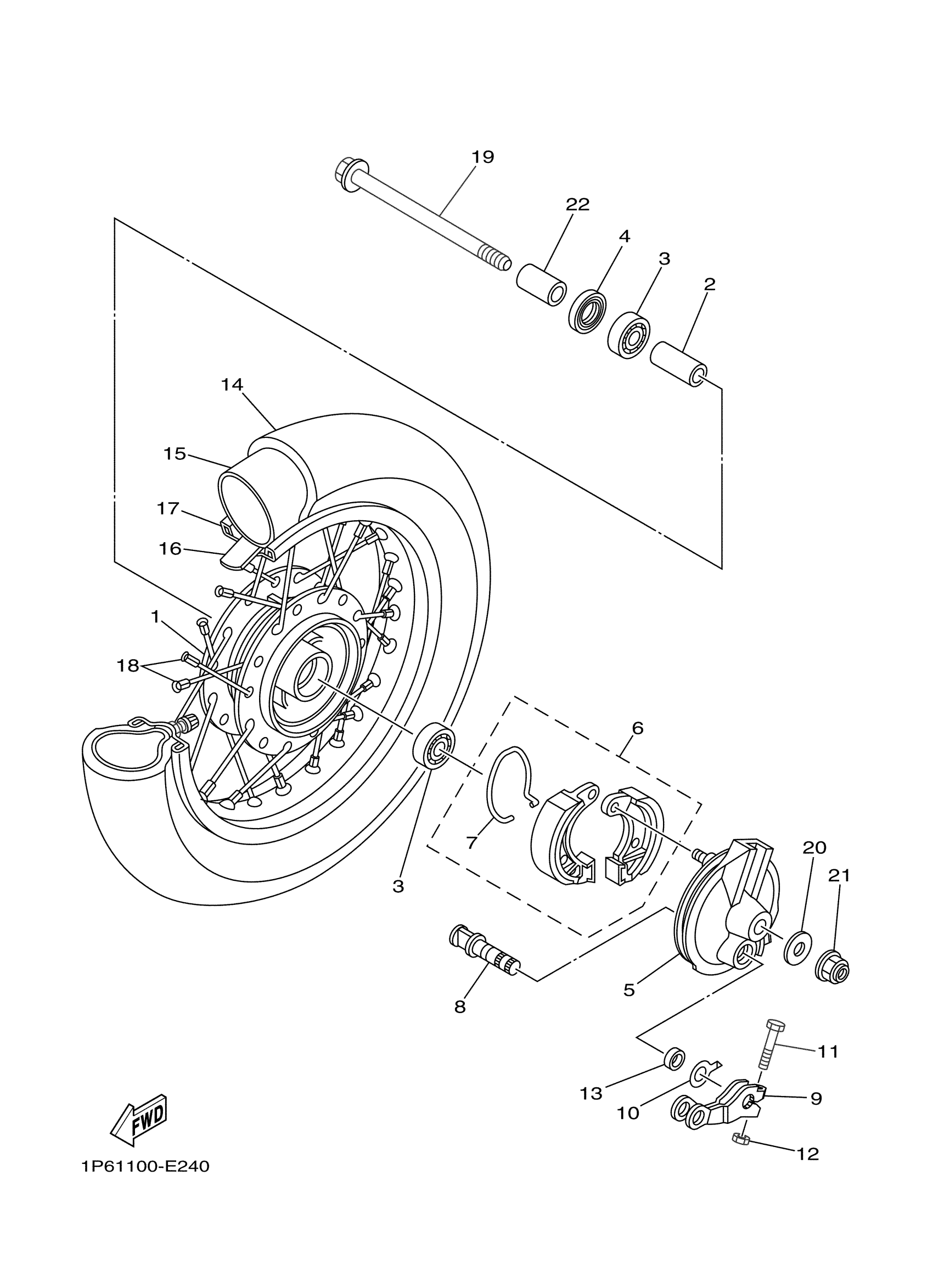

Yamaha TTR50EB (TTR50E) 1P6U 2012 FRONT WHEEL Diagram

#

Description
Price

1

HUB

1P6-F5111-00-00

Unavailable

2

COLLAR

90387-12830-00

Unavailable

3

BEARING

93306-201X1-00

$33.99

4

OIL SEAL

93106-20811-00

$5.60

5

PLATE,BRAKE SHOE

1P6-F5121-00-00

$77.99

6

BRAKE SHOE KIT

1P6-W253A-00-00

$24.99

7

SPRING, RETURN

1P6-25133-00-00

Unavailable

8

CAMSHAFT

1P6-F5151-01-00

$29.99

9

LEVER, CAMSHAFT 1

1P6-F5155-01-00

$19.49

10

PLATE, INDICATOR

1P6-F533A-01-00

$6.99

11

BOLT, HEXAGON (538)

90101-06278-00

$2.17

12

NUT(6TA)

95317-06600-00

$3.55

13

OIL SEAL

93104-12003-00

$8.49

14

TIRE (2.50-10 C183A 4PR TT)

94125-10800-00

Unavailable

15

TUBE (2.50-10)(3LL)

94225-10270-00

$28.99

16

BAND, RIM

94325-10800-00

Unavailable

17

RIM

94414-10800-00

Unavailable

18

SPOKE SET, FRONT

1P6-F5104-01-00

Unavailable

19

AXLE, WHEEL

1P6-F5181-01-00

Unavailable

20

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

21

NUT, SELF-LOCKING

95602-12200-00

Unavailable

22

COLLAR

90387-12833-00

Unavailable
