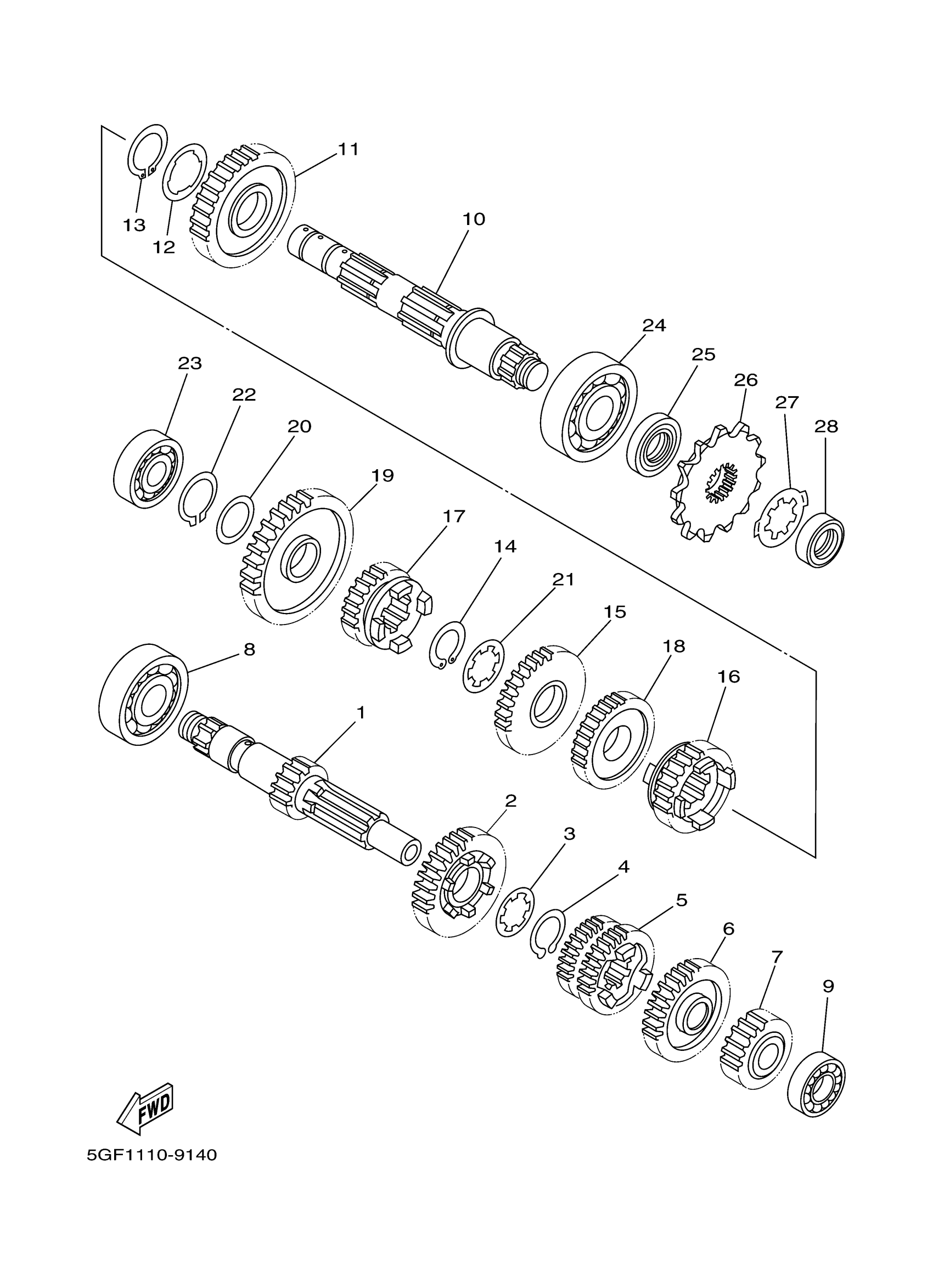

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4GY-17411-00-00

Unavailable

2

GEAR, 6TH PINION

4GY-17161-01-00

Unavailable

3

WASHER (5H0)

90209-18208-00

$8.49

4

CIRCLIP (537)

93410-22039-00

$8.49

5

GEAR, 3RD PINION

4GY-17131-00-00

Unavailable

6

GEAR, 5TH PINION

55V-17151-02-00

Unavailable

7

GEAR, 2ND PINION

51Y-17121-00-00

Unavailable

8

BEARING (30X)

93306-20447-00

$41.99

9

BEARING(4GA)

93306-00320-00

$36.99

10

DRIVE AXLE ASSY

4PX-17402-00-00

Unavailable

11

GEAR, 2ND WHEEL

4GY-17221-00-00

$62.99

12

WASHER (30X)

90209-23241-00

Unavailable

13

CIRCLIP (30X)

93410-26067-00

$8.49

14

CIRCLIP (537)

93410-22039-00

$8.49

15

GEAR, 3RD WHEEL

4GY-17231-00-00

Unavailable

16

GEAR, 5TH WHEEL

4GY-17251-00-00

Unavailable

17

GEAR, 6TH WHEEL

4GY-17261-01-00

Unavailable

18

GEAR, 4TH WHEEL

4GY-17241-00-00

Unavailable

19

GEAR, 1ST WHEEL

4GY-17211-00-00

Unavailable

20

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

21

WASHER (5H0)

90209-18208-00

$8.49

22

CIRCLIP (525)

93410-17037-00

Unavailable

23

BEARING (30X)

93306-20332-00

Unavailable

24

BEARING

93306-20532-00

Unavailable

25

OIL SEAL (3Y1)

93102-25226-00

Unavailable

26

SPROCKET, DRIVE (13T)

9383R-13211-00

Unavailable

27

WASHER, LOCK(2NX)

90215-23265-00

Unavailable

28

NUT(2NX)

90179-18552-00

Unavailable
