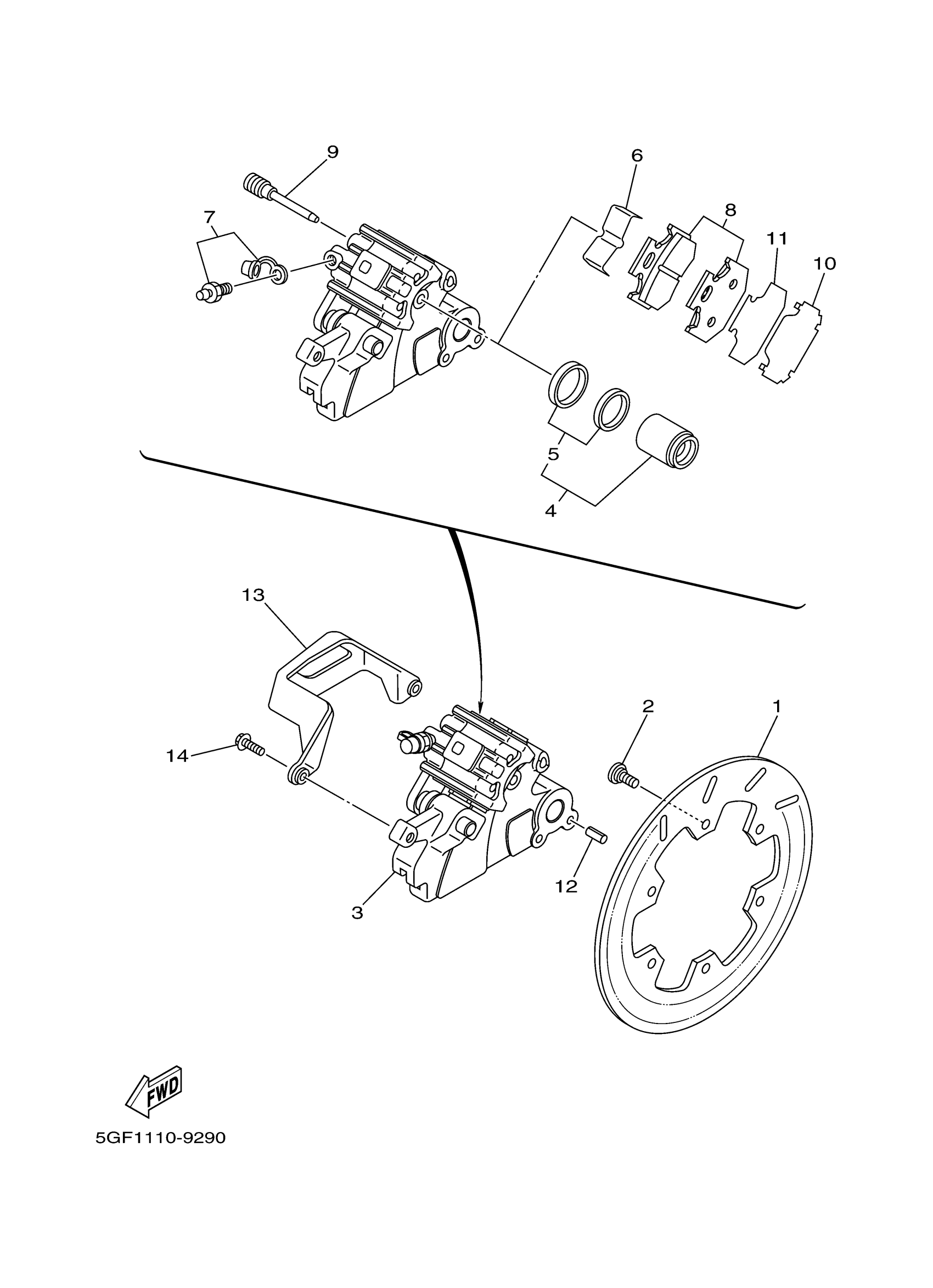

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

4GY-2582W-00-00

Unavailable

2

BOLT(3XP)

90109-065F3-00

$6.28

3

CALIPER ASSY, REAR 2

5GF-2580W-00-00

$407.23

4

PISTON ASSY, CALIPER

3SP-W0057-50-00

Unavailable

5

CALIPER SEAL KIT

3JD-25803-50-00

$13.40

6

SUPPORT, PAD

4GY-25919-50-00

Unavailable

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT 2

5GF-W0046-00-00

Unavailable

9

PIN, PAD

3FV-25924-00-00

$18.82

10

SHIM

4XM-25827-50-00

Unavailable

11

INSULATOR, HEAT

4GY-22898-50-00

$17.15

12

PIN, SPRING(4GY)

91690-60016-00

$2.21

13

PROTECTOR

4GY-27491-00-00

$49.55

14

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86
