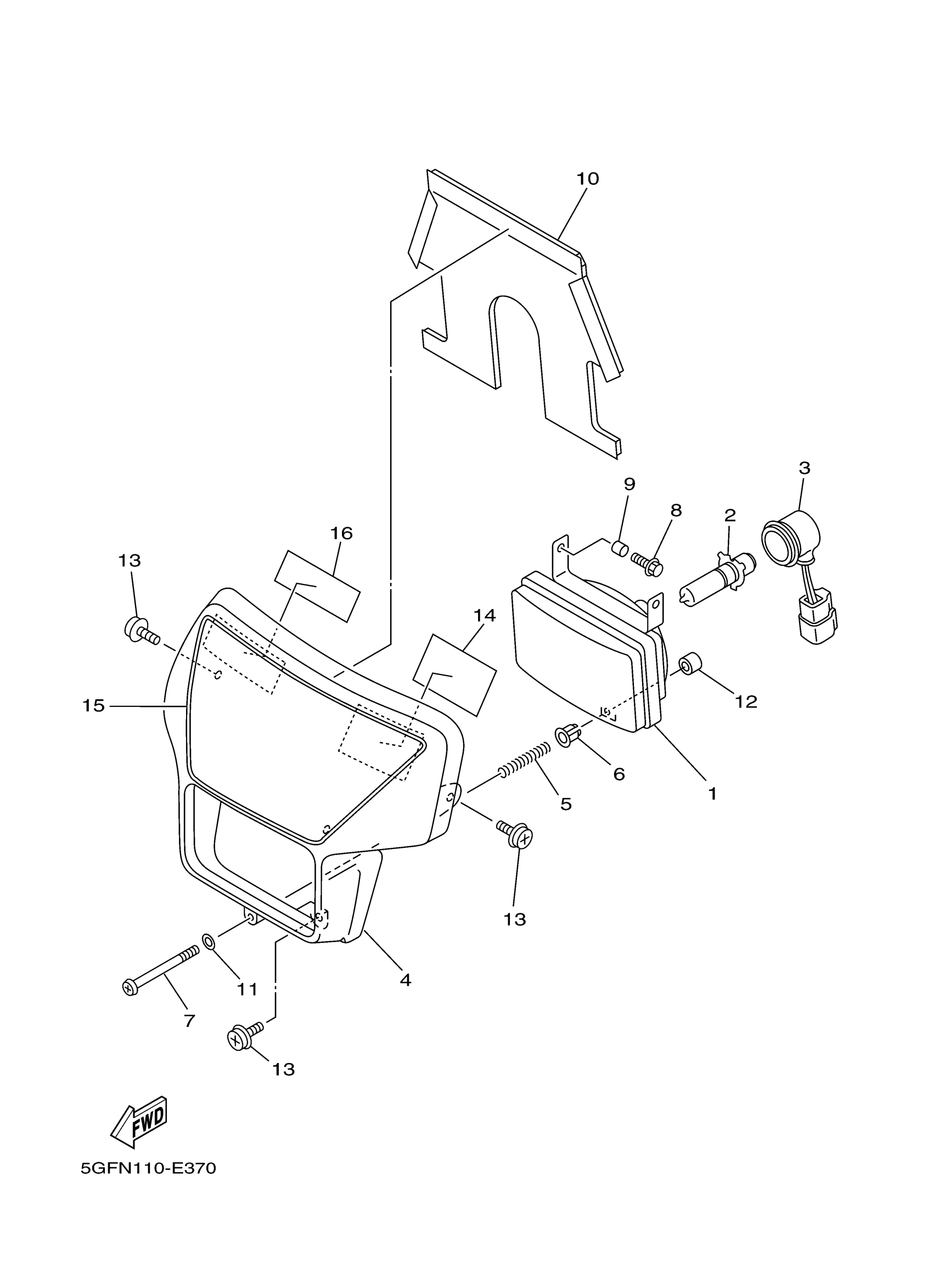

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 HEADLIGHT Diagram

LENS ASSY

4GY-84320-01-00

Unavailable

BULB, HEADLIGHT

3FW-84314-00-00

$77.99

SOCKET CORD ASSY 1

3FW-84340-01-00

Unavailable

BODY, HEADLIGHT

4GY-84311-30-00

Unavailable

SPRING, SCREW

4GY-84332-00-00

$3.38

NUT, ADJUSTING

50W-84334-00-00

Unavailable

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

BOLT, SPECIAL

55U-84337-00-00

Unavailable

SPACER

55U-84328-00-00

Unavailable

COVER, SOCKET

3XP-84196-00-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

PLUG

2RR-84178-00-00

$6.99

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

GRAPHIC 1

5GF-28391-20-00

Unavailable

LABEL, TIRE

3RV-21668-A1-00

Unavailable
