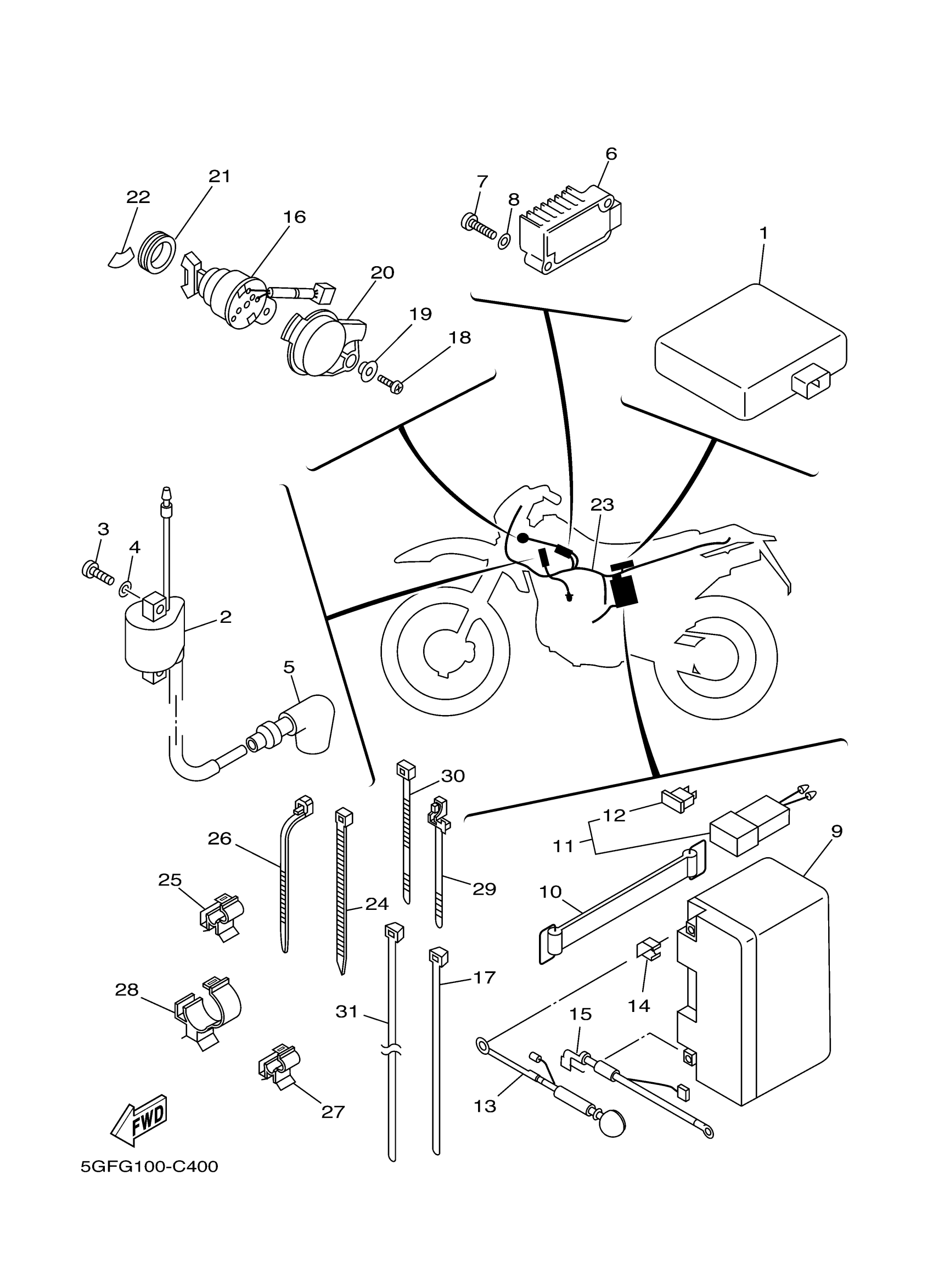

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

4GY-85540-00-00

Unavailable

2

IGNITION COIL ASSY

1UY-82310-41-00

$186.99

3

SCREW, PAN

98517-06020-00

$8.49

4

WASHER(6TA)

92907-06600-00

$2.72

5

PLUG CAP ASSY

4VW-82370-00-00

$69.99

6

RECTIFIER & REGULATOR ASSY

3TJ-81960-02-00

Unavailable

7

SCREW, PAN

98517-06030-00

Unavailable

8

WASHER(6TA)

92907-06600-00

$2.72

9

GT7B4 GS BATTERY - FA

GT7-B4000-00-00

Unavailable

10

BAND, BATTERY

133-82131-00-00

$27.99

11

FUSE HOLDER ASSY

4RR-82150-00-00

$12.99

12

FUSE (12V 15A)

36Y-82151-00-00

$4.94

13

WIRE, PLUS LEAD

4RR-82115-01-00

Unavailable

14

COVER, LEAD WIRE

4GY-82119-00-00

Unavailable

15

WIRE, MINUS LEAD

4GY-82116-00-00

Unavailable

16

MAIN SWITCH ASSY

4GY-82510-10-00

Unavailable

17

CLAMP(MF1)

90464-15152-00

Unavailable

18

SCREW(1KT)

90149-06228-00

Unavailable

19

COLLAR(50M)

90387-087L0-00

Unavailable

20

COVER, MAIN SWITCH

4GY-82568-01-00

Unavailable

21

GROMMET(4BH)

90480-24222-00

Unavailable

22

EMBLEM, MAIN SWITCH

4GY-82505-00-00

Unavailable

23

WIRE HARNESS ASSY

5GF-82590-00-00

Unavailable

24

CLAMP

90464-16061-00

Unavailable

25

CLAMP(4GY)

90464-08189-00

Unavailable

26

CLAMP(4FM)

90464-15195-00

Unavailable

27

CLAMP(4HM)

90464-15192-00

Unavailable

28

CLAMP(4GY)

90464-20191-00

Unavailable

29

CLAMP(4GY)

90464-15200-00

Unavailable

30

BAND

1UA-82591-00-00

Unavailable

31

CLAMP(MF1)

90464-15152-00

Unavailable
