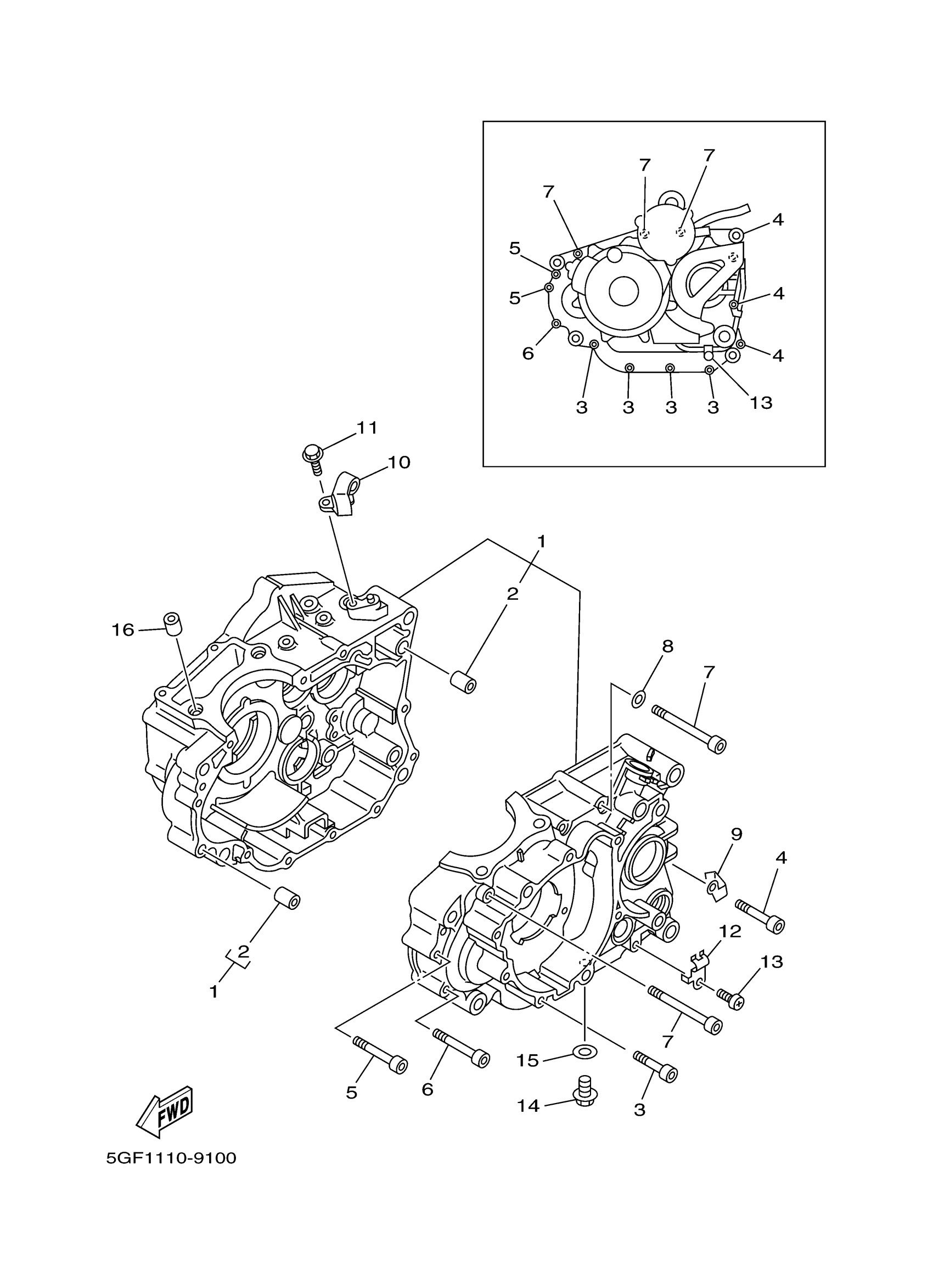

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4RR-15100-02-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT,SOCKET

91317-06040-00

$3.76

4

BOLT,SOCKET

91317-06045-00

$4.99

5

BOLT,SOCKET

91317-06050-00

$3.88

6

BOLT,SOCKET

91317-06055-00

$4.19

7

BOLT, SOCKET

91317-06070-00

$4.99

8

GASKET 256113960000

90430-06014-00

Unavailable

9

CLAMP(4AJ)

90462-08225-00

$8.49

10

HOLDER, CLUTCH CABLE

4GY-15441-00-00

Unavailable

11

BOLT, FLANGE

95817-06016-00

$2.75

12

CLAMP(4GY)

90462-10215-00

Unavailable

13

SCREW, PAN

98507-06010-00

$3.55

14

PLUG, STRAIGHT SCREW

90340-12006-00

$8.49

15

GASKET(3FD)

90430-12213-00

$5.49

16

PIN, DOWEL

99530-14016-00

Unavailable
