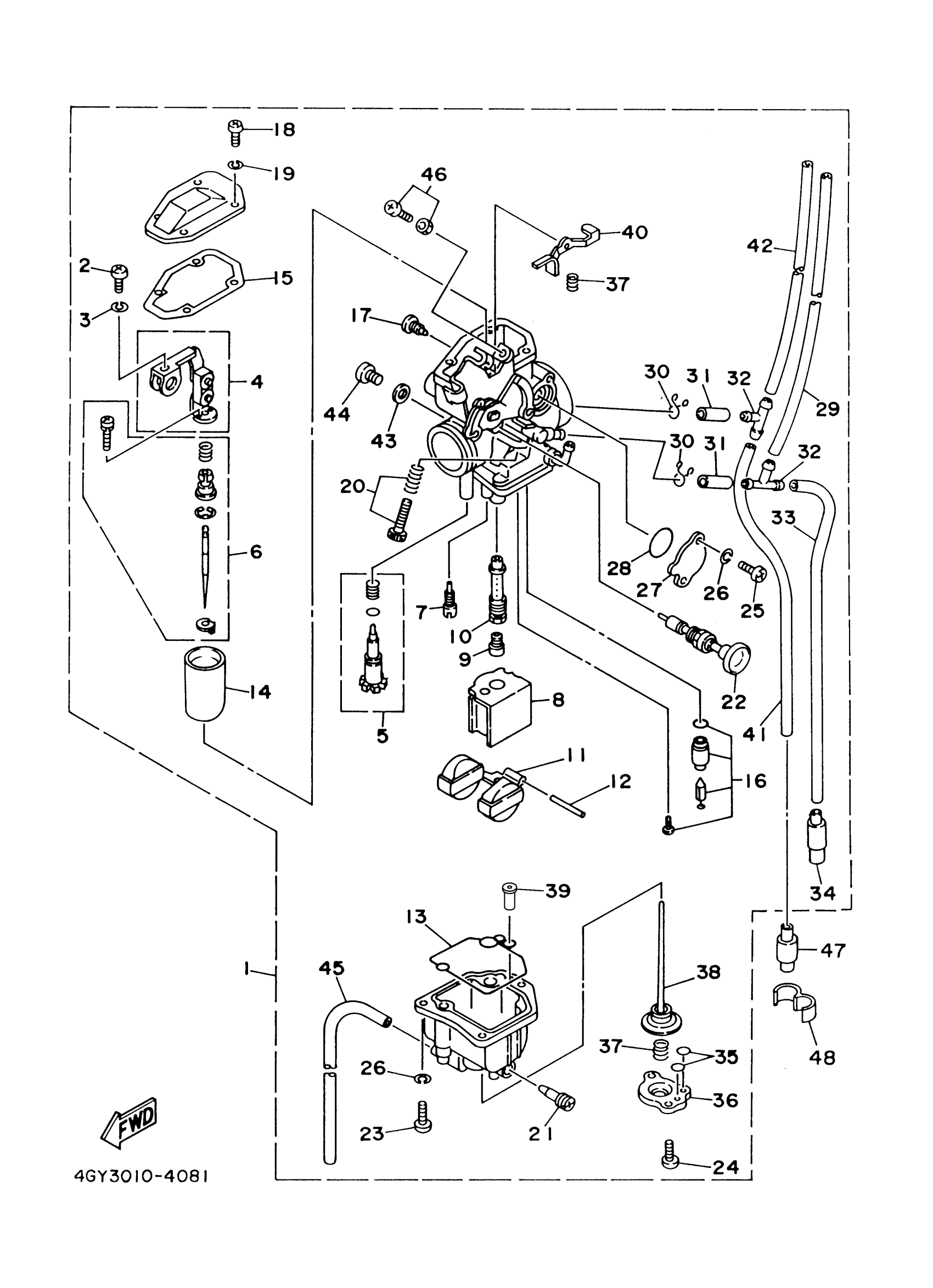

Yamaha TTR250VC (TT-R250 CA) 5GFP 2006 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5GF-14301-01-00

$844.99

2

SCREW, PANHEAD (796)

98580-04016-00

$8.49

3

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

4

. BRACKET 2

4GY-14292-01-00

Unavailable

5

PILOT SCREW SET

4GY-14105-00-00

$17.49

6

NEEDLE SET

4GY-1490J-00-00

Unavailable

7

JET, PILOT (#50)

43F-14342-25-00

$22.99

8

PLATE,BAFFLE

4GY-14153-01-00

Unavailable

9

JET, MAIN (#137)

4GY-14329-69-00

$14.49

10

NOZZLE, MAIN

4GY-14341-20-00

Unavailable

11

FLOAT

25N-14385-00-00

Unavailable

12

. PIN, FLOAT

6E5-14386-01-00

Unavailable

13

GASKET, FLOAT CHAMBER

4GY-14384-00-00

Unavailable

14

VALVE, THROTTLE 1

4GY-14312-40-00

Unavailable

15

GASKET

4GY-14198-01-00

$11.99

16

NEEDLE VALVE SET

4GY-14107-00-00

Unavailable

17

SCREW, GUIDE

4GY-14326-00-00

Unavailable

18

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

19

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

20

STOP SCREW SET

3GV-1490K-00-00

Unavailable

21

AIR SCREW SET

14T-14104-00-00

Unavailable

22

PLUNGER, STARTER

2KF-14371-01-00

Unavailable

23

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

24

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

25

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

26

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

27

COVER 1

4GY-14293-00-00

Unavailable

28

O-RING

1HV-14147-00-00

Unavailable

29

PIPE

3YF-14149-00-00

Unavailable

30

CLIP

3YF-14159-00-00

Unavailable

31

PIPE

4GY-14149-20-00

Unavailable

32

WAY 3 (10L)

90413-07007-00

Unavailable

33

PIPE

4GY-14149-20-00

Unavailable

34

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

35

O-RING

5Y1-14397-00-00

Unavailable

36

COVER, DIAPHRAGM

4GY-14958-00-00

Unavailable

37

. SPRING

6G8-14275-00-00

Unavailable

38

DIAPHRAGM ASSY

4GY-14940-00-00

Unavailable

39

VALVE, CHECK SEAT

4GY-14272-00-00

Unavailable

40

LEVER

4GY-14276-00-00

Unavailable

41

PIPE

4GY-14149-20-00

Unavailable

42

PIPE

3YF-14149-00-00

Unavailable

43

GASKET

5H0-14126-00-00

Unavailable

44

SCREW

5H0-14991-00-00

Unavailable

45

PIPE

1JK-14197-00-00

Unavailable

46

. STOP SCREW SET

4GY-1490K-00-00

Unavailable

47

PIPE 2,OVERFLOW

24W-14193-00-00

Unavailable

48

CLIP (1E6)

90468-15064-00

Unavailable
