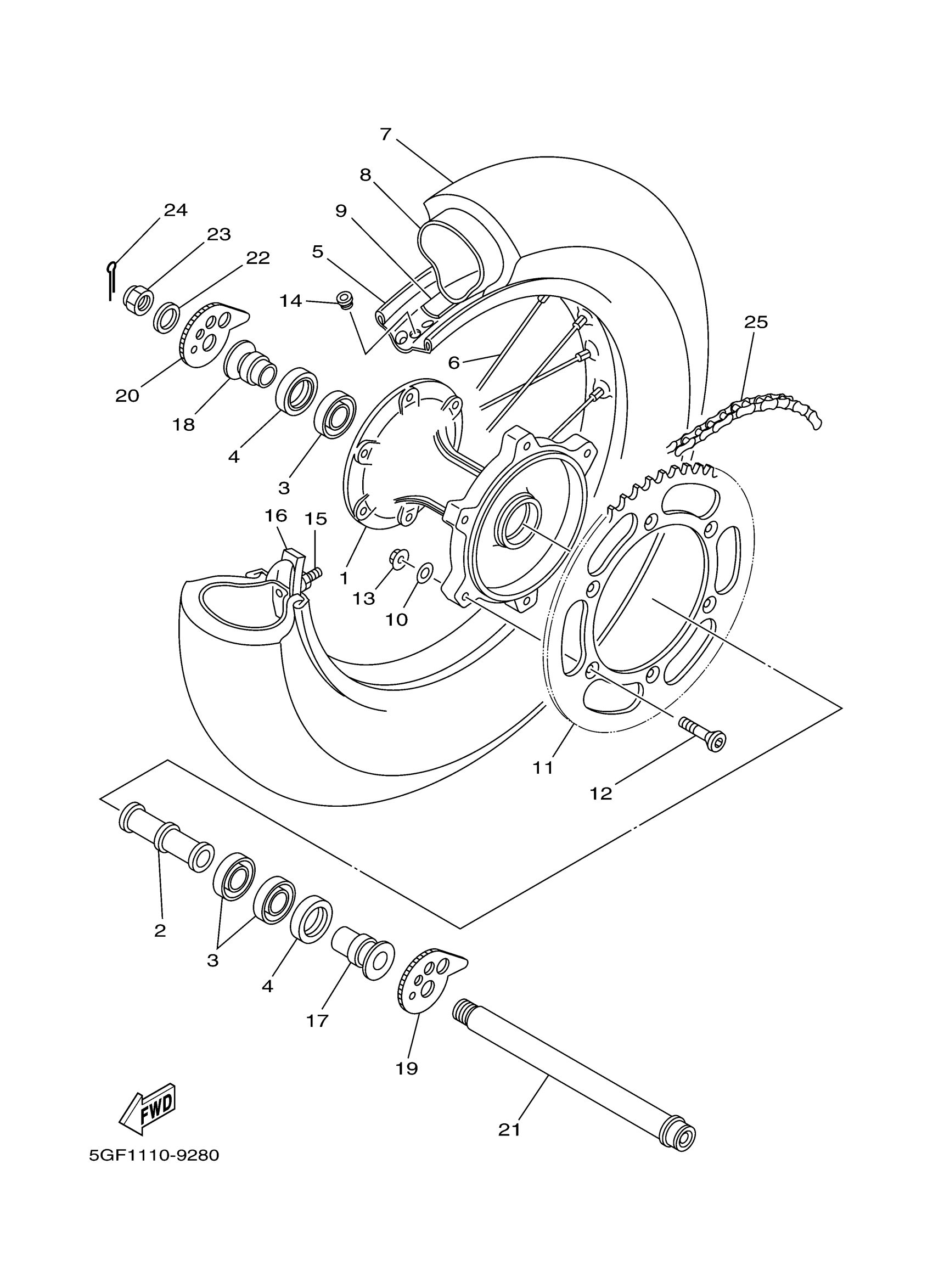

Yamaha TTR250TC (TT-R250 CA) 5GFL 2005 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

4GY-25311-00-35

Unavailable

2

SPACER(1LX)

90560-20278-00

$29.99

3

BEARING(85G)

93306-07202-00

$38.99

4

OIL SEAL(39X)

93106-28023-00

$12.49

5

RIM (2.15-18)

94421-18612-00

Unavailable

6

SPOKE SET, REAR

2VN-25304-00-00

Unavailable

7

TIRE (100/100-18 59M D739)

94110-1815H-00

Unavailable

8

TUBE (4V8)

94211-18176-00

$40.99

9

BAND, RIM (2J4)

94340-18086-00

$17.99

10

WASHER (853)

90201-08326-00

$8.49

11

SPROCKET, DRIVEN (52T)

26A-25452-51-00

$50.99

12

BOLT(1TJ)

90109-081G2-00

$10.49

13

NUT, SELF-LOCKING

90185-08169-00

$8.49

14

GROMMET (397)

90480-10068-00

$8.49

15

SPACER, BEAD

39X-25394-00-00

Unavailable

16

DAMPER

4XM-25364-00-00

Unavailable

17

COLLAR(4GY)

90387-2001U-00

Unavailable

18

COLLAR(4GY)

90387-2001V-00

Unavailable

19

PULLER, CHAIN 1

3BN-25388-00-00

Unavailable

20

PULLER, CHAIN 2

3BN-25389-00-00

Unavailable

21

AXLE, WHEEL

4GY-25381-00-00

Unavailable

22

WASHER, PLATE(2WG)

90201-204M9-00

Unavailable

23

NUT, CASTLE(3SH)

90171-18053-00

Unavailable

24

PIN, COTTER(6L5)

91490-25030-00

Unavailable

25

CHAIN

9Y581-38109-00

Unavailable
