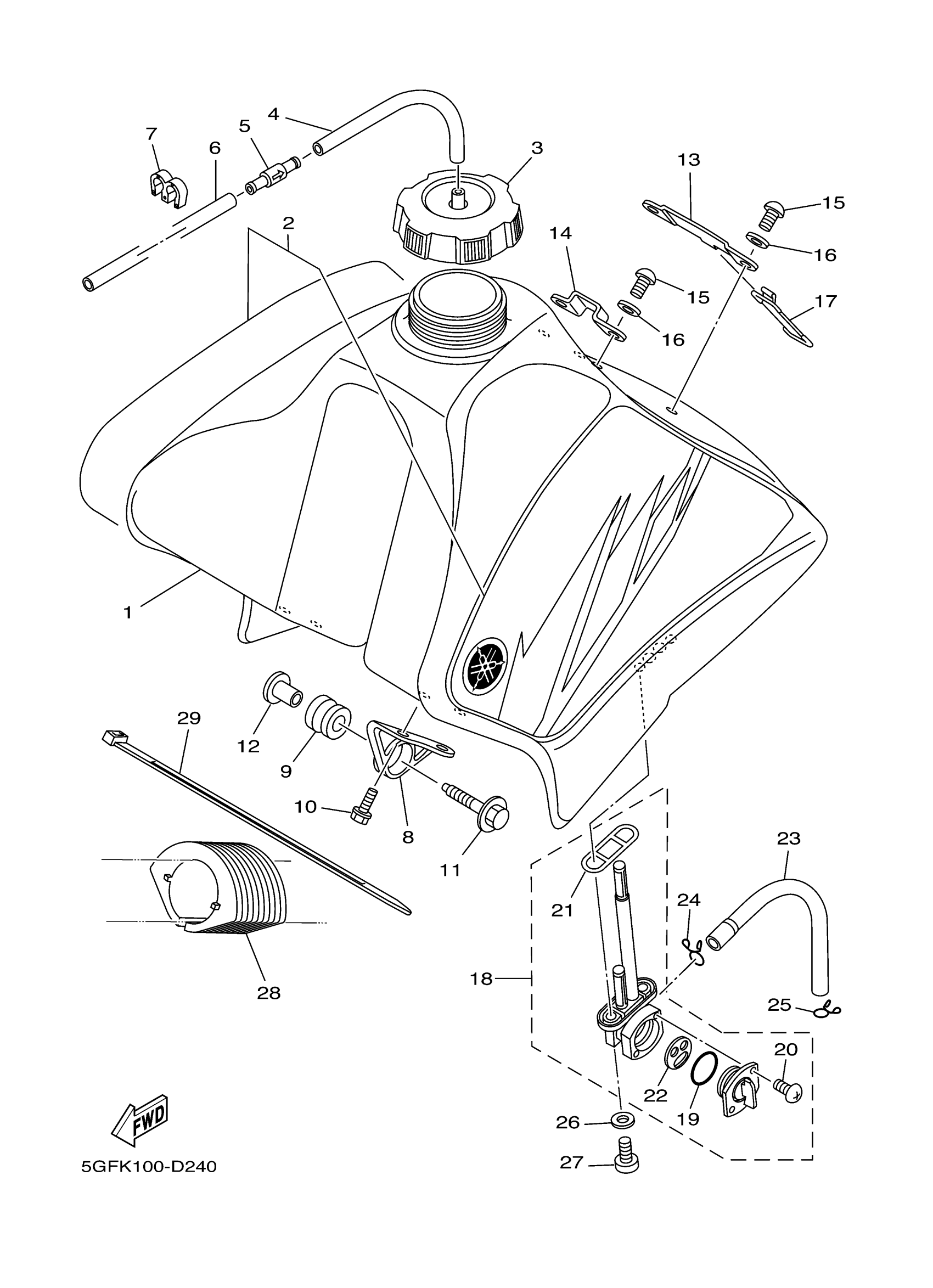

Yamaha TTR250TC (TT-R250 CA) 5GFL 2005 FUEL TANK Diagram

FUEL TANK COMP.

4PX-24110-30-00

$1,107.99

GRAPHIC SET

5GF-24240-40-00

Unavailable

CAP ASSY

5MV-24610-00-00

$58.99

PIPE 5

5RB-24315-00-00

$7.99

PIPE JOINT ASSY

3XJ-24380-00-00

$36.99

HOSE (L420)

90445-092K1-00

$12.49

CLAMP(56R)

90464-60067-00

$7.49

HOLDER, DAMPER

5XE-24144-00-00

$23.99

GROMMET(4AA)

90480-18549-00

$10.49

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

BOLT, WITH WASHER(3XP)

90119-06214-00

$8.49

WASHER, SPECIAL

3JD-24186-00-00

$13.49

BRACKT, TANK FITTING

4PX-21348-00-00

$77.99

BRACKET, SEAT FITTING

4PX-21946-00-00

$63.99

SCREW, PAN

98507-06014-00

$8.49

WASHER(6TA)

92907-06600-00

Unavailable

BAND, TANK FITTING 1

4PX-24173-00-00

Unavailable

FUEL COCK ASSY 1

2GU-24500-02-00

Unavailable

SEAL, COCK

3AJ-24534-01-00

Unavailable

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

VALVE PACKING

3AC-24523-00-00

Unavailable

PIPE, FUEL 1

69D-24311-00-00

Unavailable

CLIP(1JH)

90467-11106-00

Unavailable

CLIP

90467-090A2-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

DAMPER, LOCATING 4

4GY-24184-00-00

Unavailable

CLAMP(MF1)

90464-15152-00

Unavailable
