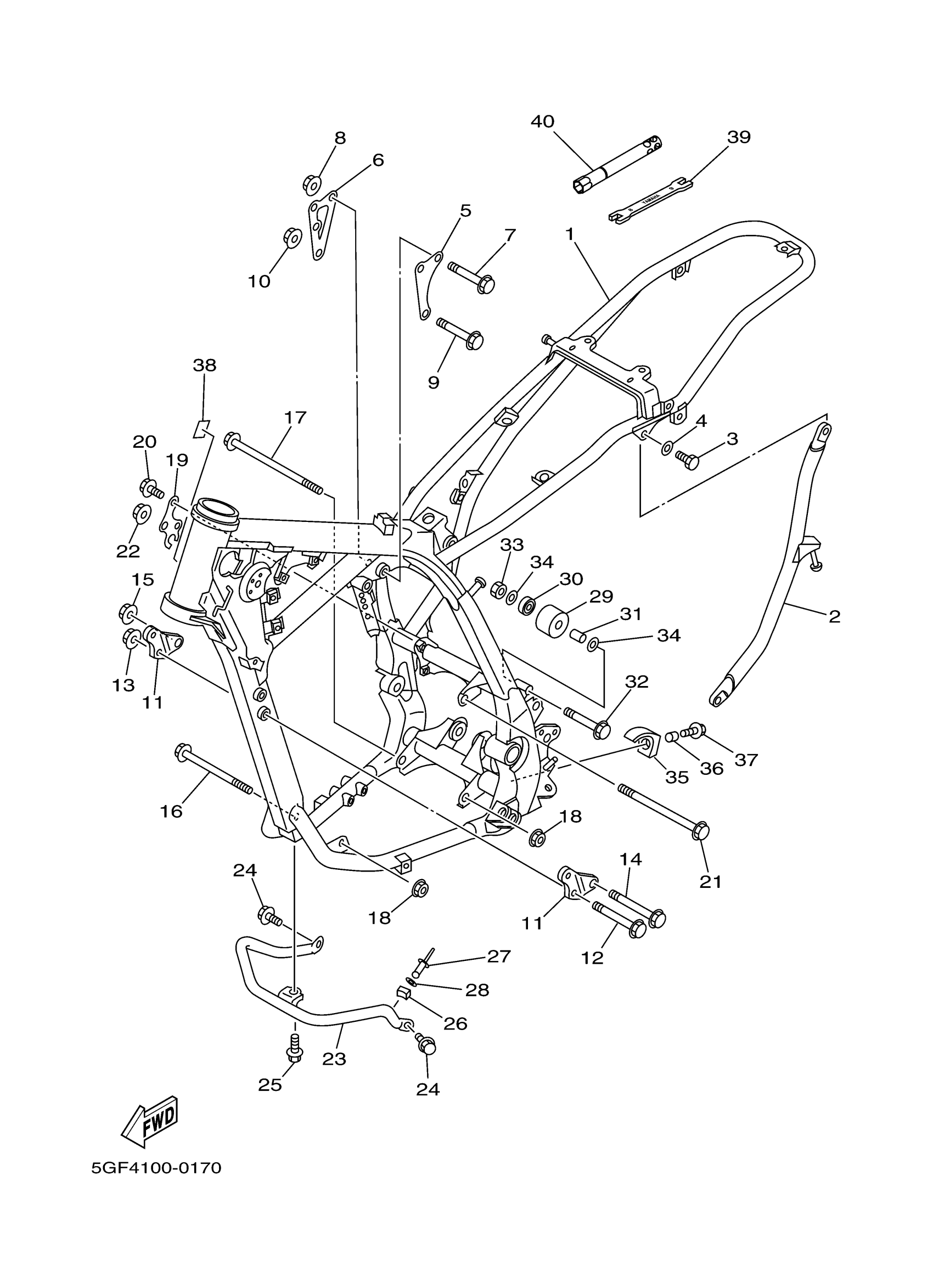

Yamaha TTR250TC (TT-R250 CA) 5GFL 2005 FRAME Diagram
#
1
FRAME COMP.
5GF-21110-00-P0
Unavailable
2
BACK STAY SUB COMP. 1
5GF-21105-00-P0
Unavailable
3
BOLT(4EW)
90106-08051-00
Unavailable
5
STAY, ENGINE 2
4GY-21315-00-00
Unavailable
6
STAY, ENGINE 5
4GY-21318-01-00
Unavailable
11
STAY, ENGINE 6
4GY-21319-00-00
Unavailable
16
BOLT, WASHER BASED (2H7)
90105-10105-00
Unavailable
17
BOLT, WASHER BASED (2T4)
90105-10117-00
Unavailable
19
STAY, ENGINE 3
4GY-21317-00-00
Unavailable
20
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
21
BOLT, WASHER BASED (5E3)
90105-10183-00
Unavailable
23
PROTECTOR, ENGINE
4GY-21471-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
BOLT, FLANGE
95817-06012-00
Unavailable
26
DAMPER 2
4GY-21486-00-00
Unavailable
27
RIVET, BLIND (15A)
90267-32071-00
Unavailable
28
WASHER, PLATE 8077743700
90201-03313-00
Unavailable
29
TENSIONER
4EW-22178-01-00
Unavailable
30
BEARING (3X3)
93300-60804-00
Unavailable
31
COLLAR(1NL)
90387-086N4-00
Unavailable
32
BOLT, FLANGE(4GY)
95027-08060-00
Unavailable
33
NUT, HEXAGON (509)
90170-08158-00
Unavailable
34
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
35
TENSIONER SET
99999-04397-00
Unavailable
36
COLLAR(51L)
90387-067K6-00
Unavailable
37
BOLT, WITH WASHER(81H)
90119-06118-00
Unavailable
38
SEAL
1JK-21268-00-00
Unavailable
39
WRENCH, SPORKE NIPPLE
23X-28166-00-00
Unavailable
40
BOX, SPARK PLUG
1WG-2814F-00-00
Unavailable
